Z-shape Sheetpiles
Z-shape sheet piles for sale. Enquire

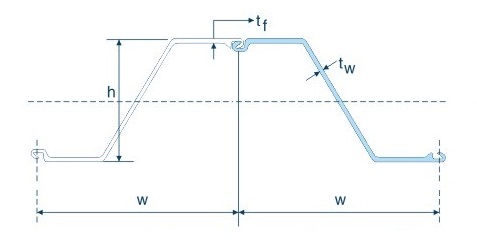

| Gr.60 | Gr. 65 | |||||||||||||
| Width | Height | Flange | Web | Cross sec. area | Weight | Coating area | Cross sec. area | Weight | Moment of Inertia | Elastic modulus | Plastic modulus | Bending moment | Bending moment | |
| (w) | (h) | (tf) | (tw) | (A) | (A) | (ly) | (Sx) | (Sx) | (Max) | (Max) | ||||
| mm | mm | mm | mm | cm2 | kg/m | m2/m | cm2/m | kg/cm2 | cm4/m | cm3/m | cm3/m | kN-m/m | kN-m/m | |
| Section | (in) | (in) | (in) | (in) | in2 | lb/ft | in/ft | in2/ft | lb/ft2 | in4/ft | in3/ft | in3/ft | kip-ft/ft | kip-ft/ft |
| ZZ12-770 | 770 | 343,5 | 8,6 | 8,5 | 92,72 | 72,8 | 1,96 | 120,42 | 94,5 | 21.496 | 1.252 | 1.488 | 518 | 561 |
| (30,31) | (13,52) | (0,339) | (0,335) | (14,37) | (48,92) | (6,44) | (5,69) | (19,35) | (157,4) | (23,3) | (23,3) | (116,4) | (126,1) | |
| ZZ13-770 | 770 | 344,0 | 9,1 | 9,0 | 97,10 | 76,2 | 1,96 | 126,10 | 99,0 | 22.433 | 1.304 | 1.551 | 540 | 585 |
| (30,31) | (13,54) | (0,358) | (0,354) | (15,05) | (51,20) | (6,44) | (5,96) | (20,28) | (164,3) | (24,3) | (24,3) | (121,3) | (131,4) | |
| ZZ14-770 | 770 | 344,5 | 9,6 | 9,5 | 101,45 | 79,6 | 1,96 | 131,75 | 103,4 | 23.370 | 1.357 | 1.613 | 561 | 608 |
| (30,31) | (13,56) | (0,378) | (0,375) | (15,72) | (53,49) | (6,44) | (6,23) | (21,18) | (171,1) | (25,2) | (252,) | (126,2) | (136,7) | |
| ZZ17-700 | 700 | 420,0 | 8,5 | 8,4 | 93,37 | 73,3 | 1,97 | 133,39 | 104,7 | 36.425 | 1.735 | 2.032 | 717 | 777 |
| (27,56) | (16,54) | (0,335) | (0,331) | (14,47) | (49,25) | (6,47) | (6,30) | (21,44) | (266,7) | (32,3) | (37,8) | (161,3) | (174,7) | |
| ZZ18-700 | 700 | 420,5 | 9,1 | 9,0 | 97,77 | 76,7 | 1,97 | 139,67 | 109,6 | 38.001 | 1.807 | 2.132 | 748 | 810 |
| (27,56) | (16,56) | (0,358) | (0,354) | (15,15) | (51,54) | (6,47) | (6,60) | (22,45) | (278,3) | (33,6) | (39,8) | (168,1) | (182,1) | |
| ZZ19-700 | 700 | 421,0 | 9,6 | 9,5 | 102,17 | 80,2 | 1,97 | 145,96 | 114,6 | 39.578 | 1.880 | 2.210 | 778 | 843 |
| (27,56) | (16,57) | (0,378) | (0,375) | (15,84) | (53,89) | (6,47) | (6,90) | (23,47) | (289,8) | (35,0) | (41,2) | (174,9) | (189,4) | |
| ZZ20-700 | 700 | 421,5 | 10,1 | 10,0 | 106,57 | 83,7 | 1,97 | 152,24 | 119,5 | 41.155 | 1.953 | 2.304 | 808 | 875 |
| (27,56) | (16,59) | (0,396) | (0,394) | (16,52) | (56,24) | (6,47) | (7,19) | (24,48) | (301,4) | (36,3) | (42,9) | (181,6) | (196,7) | |
| ZZ24-700 | 700 | 459,2 | 11,3 | 112,0 | 122,06 | 95,8 | 2,05 | 174,37 | 136,9 | 55.949 | 2.437 | 2.875 | 1.008 | 1.092 |
| (27,56) | (18,08) | (0,445) | (0,441) | (18,92) | (64,37) | (6,71) | (8,24) | (28,04) | (409,7) | (45,3) | (53,7) | (226,7) | (245,5) | |
| ZZ26-700 | 700 | 460,2 | 12,3 | 122,0 | 131,18 | 103,0 | 2,05 | 187,40 | 147,1 | 59.843 | 2.601 | 3.071 | 1.076 | 1.166 |
| (27,56) | (18,12) | (0,484) | (0,480) | (20,33) | (69,21) | (6,72) | (8,86) | (30,13) | (438,2) | (48,4) | (57,1) | (241,9) | (262,1) | |
| 2228-700 | 700 | 461,2 | 13,3 | 132,0 | 140,30 | 110,1 | 2,05 | 200,43 | 157,3 | 63.740 | 2.764 | 3.278 | 1.144 | 1.239 |
| (27,56) | (18,16) | (0,524) | (0,520) | (21,75) | (73,98) | (6,72) | (9,47) | (32,22) | (466,8) | (51,4) | (61,0) | (257,1) | (278,5) | |
| 2236-700 | 700 | 499,2 | 15,1 | 112,0 | 151,27 | 118,7 | 2,18 | 216,10 | 169,6 | 89.753 | 3.596 | 4.151 | 1.488 | 1.612 |
| (27,56) | (19,65) | (0,594) | (0,441) | (23,45) | (79,76) | (7,14) | (10,21) | (34,74) | (657,2) | (66,9) | (77,3) | (334,5) | (362,3) | |
| ZZ38-700 | 700 | 500,2 | 16,1 | 122,0 | 161,16 | 126,5 | 2,18 | 230,23 | 180,7 | 94.984 | 3.798 | 4.363 | 1.571 | 1.702 |
| (27,56) | (19,69) | (0,634) | (0,480) | (24,98) | (85,00) | (7,14) | (10,88) | (37,01) | (695,6) | (70,6) | (812,) | (353,2) | (382,6) | |
| 2240-700 | 700 | 501,2 | 17,1 | 132,0 | 171,06 | 134,3 | 2,18 | 244,37 | 191,8 | 100.219 | 3.999 | 4.610 | 1.655 | 1.792 |
| (27,56) | (19,73) | (0,673) | (0,520) | (26,51) | (90,24) | (7,15) | (11,55) | (39,28) | (733,9) | (74,4) | (85,8) | (372,0) | (402,9) | |
| ZZ42-700 | 700 | 499,2 | 18,1 | 14,0 | 182,12 | 143,0 | 2,17 | 260,17 | 204,2 | 105.543 | 4.228 | 4.882 | 1.749 | 1.895 |
| (27,56) | (19,65) | (0,713) | (0,551) | (28,23) | (96,09) | (7,11) | (1229,) | (41,82) | (772,9) | (78,7) | (90,9) | (393,3) | (426,0) | |
| ZZ44-700 | 700 | 500,2 | 19,1 | 15,0 | 192,02 | 150,7 | 2,17 | 274,31 | 215,3 | 110.942 | 4.436 | 5.096 | 1.835 | 1.988 |
| (27,56) | (19,69) | (0,752) | (0,591) | (29,76) | (101,26) | (7,11) | (12,96) | (44,10) | (812,4) | (82,5) | (94,8) | (4126,) | (446,9) | |
| ZZ46-700 | 700 | 501,2 | 20,1 | 16,0 | 201,93 | 158,5 | 2,17 | 288,47 | 225,6 | 116.159 | 4.635 | 5.343 | 1.918 | 2.077 |
| (27,56) | (19,73) | (0,791) | (0,630) | (31,30) | (106,51) | (7,11) | (13,63) | (46,21) | (850,6) | (86,2) | (99,4) | (431,1) | (467,0) | |
| ZZ48-700 | 700 | 503,2 | 22,1 | 15,0 | 202.99 | 159,3 | 2,17 | 289,99 | 227,6 | 120.467 | 4.788 | 5.528 | 1.981 | 2.146 |
| (27,56) | (19,81) | (0,870) | (0,591) | (31,46) | (107,04) | (7,11) | (13,70) | (46,62) | (882,2) | (89,1) | (102,9) | (445,3) | (482,4) | |
| ZZ50-700 | 700 | 504,2 | 23,1 | 16,0 | 212,41 | 166,7 | 2,17 | 303,44 | 238,2 | 125.358 | 4.973 | 5.713 | 2.057 | 2.229 |
| (27,56) | (19,85) | (0,909) | (0,630) | (32,92) | (112,02) | (7,11) | (14,34) | (48,79) | (918,) | (92,5) | (106,3) | (462,5) | (501,0) | |
| ZZ52-700 | 700 | 505,2 | 24,1 | 17,0 | 222,07 | 174,3 | 2,17 | 317,24 | 249,0 | 130.403 | 5.162 | 5.951 | 2.136 | 2.314 |
| (27,56) | (19,89) | (0,949) | (0,669) | (34,42) | (117,12) | (7,11) | (14,99) | (51,00) | (954,9) | (96,0) | (110,7) | (480,2) | (520,2) | |
