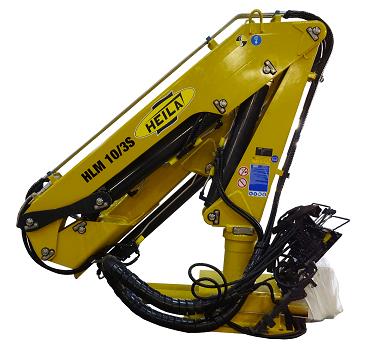

Heila Marine Knuckle Boom Crane HLM 10-3S-D
For sale. Prompt delivery. Brand new. Never used. Certified. Complete including manuals etc, excluding winch and HPU, ideal for small tugs & workboats. Enquire
| Technical Data | |
| Built | 2022 |
| Type | Hydraulic Marine Knuckle Boom Crane |
| Model | HLM 10-3S-D |
| Crane capacity | 9.5-10 tm (harbour condition) |
| Max. slewing torque | 15 kNm |
| Max. outreach horizontal | 10,30 m |
| Max. slewing range | 380 degrees, NOT continuous |
| Recommended oil flow | 30 ltr/min |
| Max. working pressure | 260 bar |
| Weight | ≈ 2000 kg |
| Oil clarity requirement | NAS value 7 (ISO 4406) |
Fixed hook capacity
Max. respective heel/trim 5/2 degrees, in harbour condition

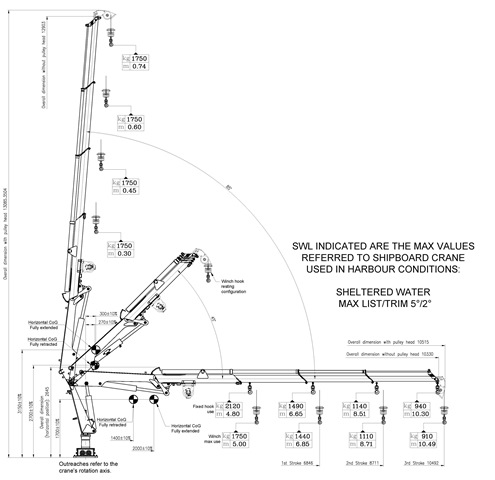

| Lifting Capacity | Outreach | Remarks |
|
(kg) |
(m) | |
|
870 |
10,30 |
Max. outreach |
|
1.100 |
8,52 |
|
| 1.470 |
6,65 |
|
| 2.100 |
4,81 |
