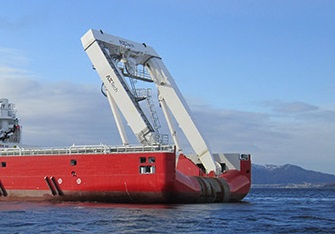

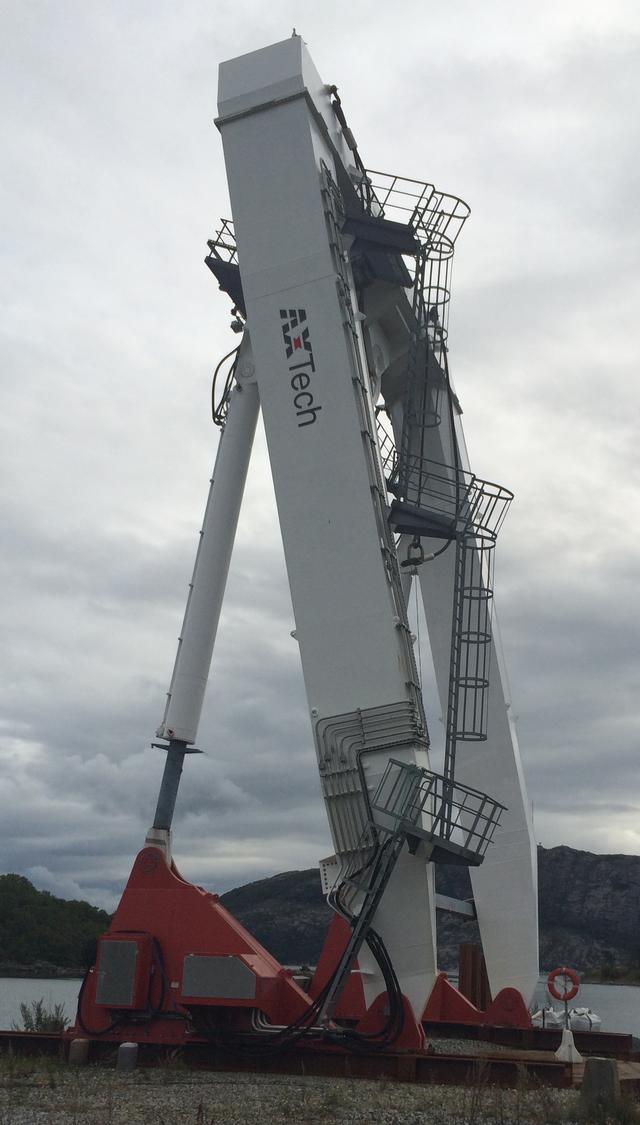

A-Frame: AXTech – 250 ton SWL
A-Frame: AXTech, SWL 250t (double fall), 200t (single fall), phi= 1,3

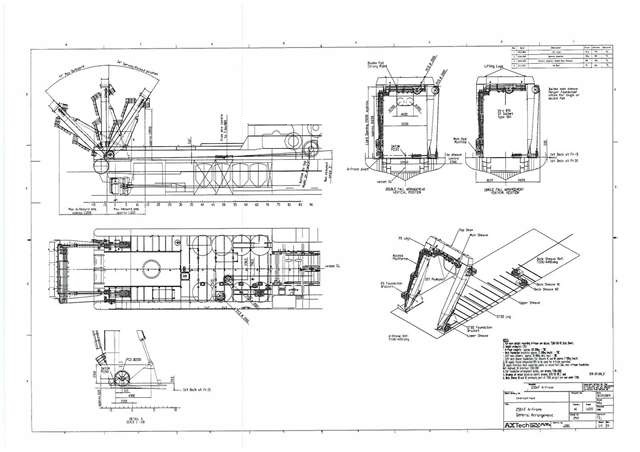

Including: Certificates, Approved drawings, Manuals, Spare parts, Load charts, etc. Condition: very good. Price: Inquire
| Overall Dimensions A-frame | |
| Pivot points C-C distance | 12.5 m |
| Overall width | 18.0 m |
| Total height | 22.0 m (vertical, over deck) |
| Free height (light opening) | 19.2 m (vertical, over deck) |
| A-frame lifting height | 16.6 m (vertical, over deck) |
| Estimated Weight | |
| A-frame, w/o cylinders/found. brackets | Approx. 135 T (dry, max.) |
| Deck foundation brackets | Approx. 15T each (2 off) |
| 2 off Main Cylinders | Approx. 30 T (dry, max.) |
| COG location | |
| A-frame vertically positioned over the deck | |
| X (transverse) | = approx. 0.2 m (from CL) |
| Y (along ship) | = approx. 0, 1 m (from hinge pivot to stern) |
| Z (vertical) | = approx. 15 m (above A-frame’s pivot point) |
