18 May 202112,000 DWT 90m x 32m North Sea Barge
Excellent L: 90 m x B: 32 m x H: 6.7 m North Sea barges, built in the EU for heavy-lift transport. Well documented. Location: North Sea port. Enquire
General | |
Built | 2012, EU |
Class | BV, I ✠ Hull, Unrestricted, |
Green Passport EU | |
Next SS | July 2022 |
Dimensions | |
Length | 90 m |
Beam | 32 m |
Depth | 6.7 m |
Draft | 5.0 m |
GT | 5,200 |
Deck & Cargo capacity | |
Deadweight | 12,000 t |
Load (even distribution) | 15 t/m2 |
Bulkhead cross | 300 t |
Long. bulkhead | 50 t/m |
Machinery | |

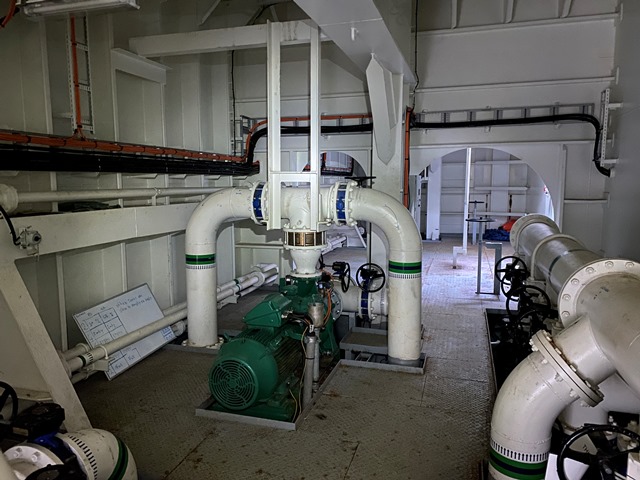

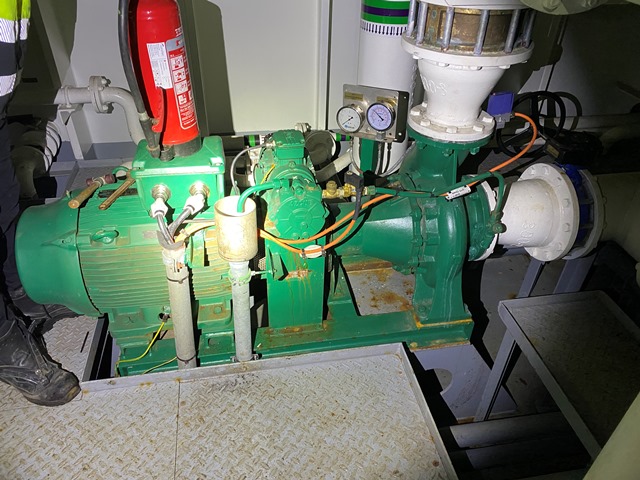

Ballast pumps | 2 x |
Winches | 2 x |
Driven by | Portable Genset (not included) |
Deck equipment | |
Smit brackets | 3 x fwd |
Bollards | 8 sets |
Fairleads | 8 x |
Pilot ladders | Recessed |
