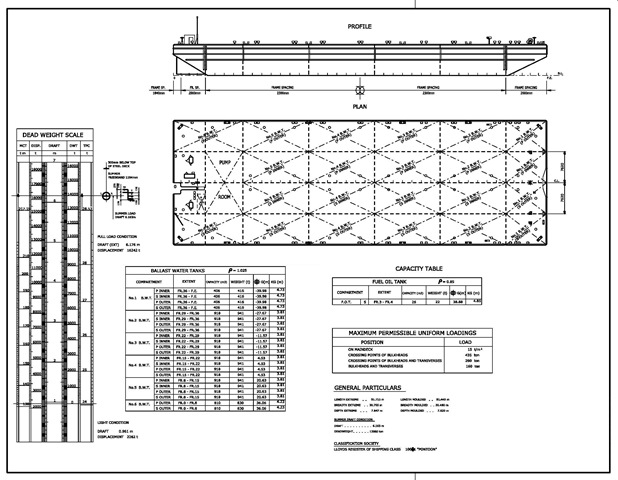

14,000 DWT Heavylift Barge
For Sale: 14,000 t deadweight. Solid built heavy lift barge. 94 m x 31 m. deck load 15 t/m². LR class recently expired (March 2018). Location: North Sea port. Enquire
| General | |
| Built | 1985 |
| Class | LR, ✠ 100 A1 pontoon |
| Dimensions | |
| Length | 92 m |
| Beam | 31 m |
| Depth | 7.6 m |
| Draft (mt / loaded) | 1.0 m / 6.2 m |
| GRT | 5,675 |
| Deck capacity | |
| Deadweight | 14,000 t |
| Lightweight | 2,260 t |
| Deck load | 15 t/m2, uniform loading |
| Deck equipment | |
| Anchor winch | Single drum 600 m x 40 mm wire |
| Anchors | 2 x 5.3 t |
| Recovery winch | 10 t, manual, 47 m of 20 mm |
| Access ladders | 2 x PS, 2 SB |
| Towing bridle (not included) | 2 x 23 m x 73 mm U3 stud link chain, |
| 1 x 6.0 m x 73 mm U3 link chain, | |
| delta plate and 3 x 75 t shackles. | |
| Machinery | |
| Diesel engine | 1 x 52 kW (anchor winch & BW pump) |
| Ballast pump | 1 x 500 m3/h |
