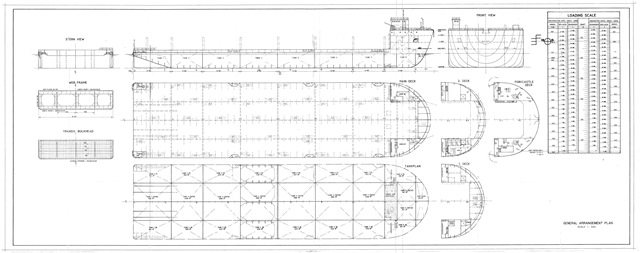

25,000 ton DWT Semi-submersible Heavy Lift Barge
25,000 ton deadweight, ice classed, semi-submersible heavy lift barge. Special survey completed 2016. Ideal for conversion to dry-dock. Location: North Sea port. Enquire
| General | |
| Class | BV, I ✠ Hull, Barge, Unrestricted navigation, |
| Ice Class IA Super, in-water-survey | |
| Last special survey | Completed 2016 |
| Dimensions | |
| Length overall | 145 m |
| Beam | 36.0 m |
| Depth | 9.0 m |
| Max draft | 6.8 m |
| GRT | 12,750 |
| Capacity | |
| Deadweight | 25,400 t |
| Deck area | 4,600 m² |
| Frame spacing | 3.0 m |
| Deck loading | 20 t/m² |
| Point loads | Up to 650 tonnes |
| Submerged depth | max 8.0 m at fwd end barge deck |
| Machinery | |
| Ballast pumps | 2 x 1,200 m³/h |
| Compressors | 3 x 45 m³/min |
| Generators | 3 x Cat., 335 kW each |
| Harbour generator | 1 x Cat. 60 kW |
| Mooring system | |
| Forward | 2 x anchor winches |
| 2 x mooring winches | |
| Aft | 2 x windlass/capstan units, in recess on each quarter |
| Other | |
| Bow section spaces | Ballast control room, Ballast room & Work shop |
| Accommodation | Cabins, mess room |
