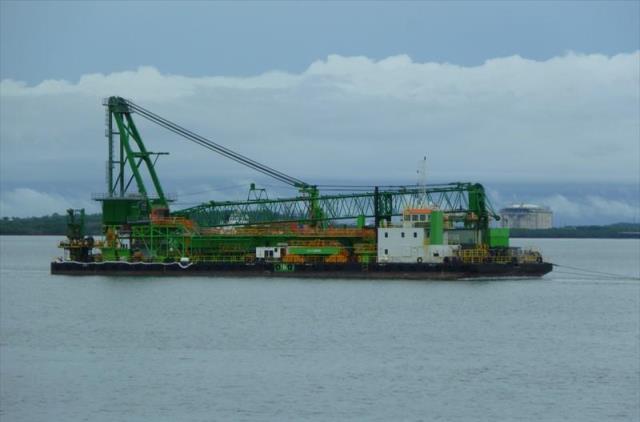

400 ton Crane Piling Barge
ABS. L x W x Depth (m): 80.0 x 25 x 4.50. Daytime accommodation. Location Singapore region. For Charter only: Enquire
| General | |
| Build: | 2013 |
| Class: | ABS, + A1 Barge |
| Main particulars | |
| Length: | 80.0 m |
| Beam: | 25.0 m |
| Moulded Depth: | 4.50 m |
| Machinery & Deck Equipment | |
| Generators: | 2 x Caterpillar C6.6 ACERT (147 KVA) |
| Mooring system: | 6 x 30 ton, 3 ton flipper delta’s |
| Accommodation | |
| 3 offices, 1 medical room, 1 mess room, | |
| 1 operator room, sanitary room/change room | |
| Crane | |
| Class: | ABS |
| Type: | PLM 6400 |
| Maximum lifting capacity | |
| Main hoist: | 2 x 200 ton |
| Aux. hoist: | 25 ton |
| Boom length: | 60 m (optional 70m) |
| Engine: | Caterpillar C32 |
| Available piling equipment (optional) | |
| IHC Hydrohammer S150 (150 kNm) to S-500 (500 kNm) | |
