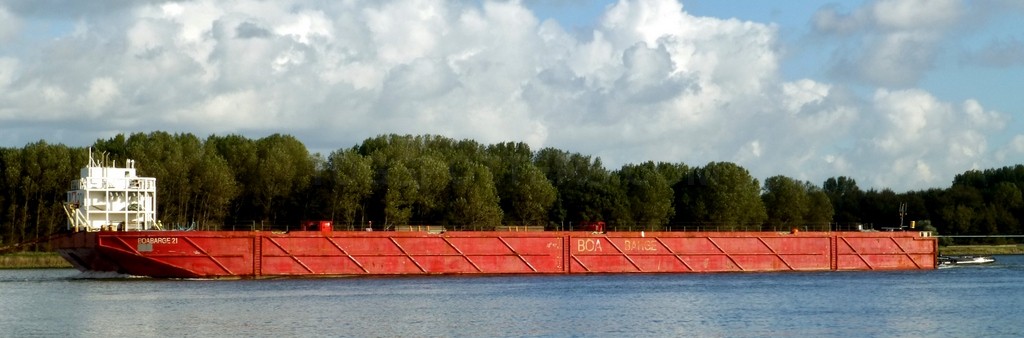

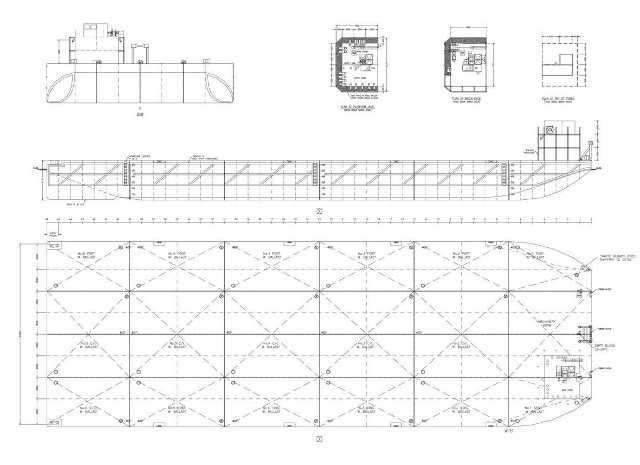

11,000 ton Semi Submersible Heavy Lift Barge
Well equipped and documented. L x W x Depth x Draft (m): 92.00 x 31.50 x 6.70 x 5.30. Deadweight: 11,000+ ton. Deck area: ~2,700 m2. Max submerging depth fwd: 2.0 m above deck, aft: 6.3 m above deck. For Charter only: Inquire
| Design loads (total loads) | |
| Deck loads | |
| Distributed | 20 t/m2 |
| Line loads | |
| Transverse bulkheads | 100 t/m |
| Transverse girders | 80 t/m |
| Transverse frames | 60 t/m |
| Longitudinal bulkheads | 110 t/m |
| Point loads | |
| Transverse bulkhead/Long bulkhead | 360 t |
| Transverse bulkhead/Sideshell | 450 t |
| Transverse frame/Long bulkhead | 360 t |
| Transverse frame/Sideshell | 500 t |
Please contact us for more details
