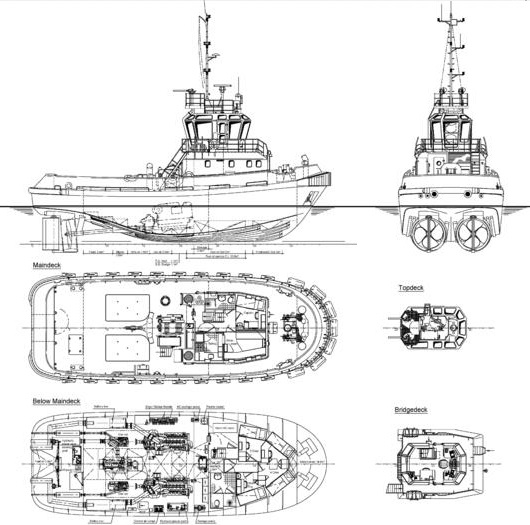

40 tbp twin screw tug
Solid built, well equipped and well maintained Damen Stantug 2208. Location: SW Africa. Enquire
| General | |
| Built | 2012 |
| Class | BV, I ✠ Hull • Mach, Tug, unrestricted |
| Last DD | December 2022 |
| Dimensions | |
| Length | 22.5 m |
| Draft | 7.8 m |
| Depth | 3.5 m |
| Draft | 3.6 m |
| GT | 105 |
| Performance | |
| Speed | 11.8 knots |
| Bollard pull | 40 t |
| Deck area | 41.5 m² |
| Deck load | 2 t/m² |
| Deck equipment | |
| Towing winch | 10 t pull, 45 t hold |
| Wire | 500 m x 44 mm |
| Towing hook | 45 t |
| Crane | 2.2 t @ 8.5 m |
| Crane winch | 2.0 t, 40 m wire |
| Machinery | |
| Main engines | 2 x Cat. 3512B, 1100 kW each |
| Propulsion | 2 x FPP in nozzles |
| Generators | 2 x Cat. 3304B, 49 kW each |
| FiFi set | 1 x Cat. 3304B, 300 m3/h |
| Tank capacity | |
| Fuel | 36 m3 |
| Fresh water | 8.6 m3 |
| Foam | 3.4 m3 |
| Accommodation | |
| Cabins | For 6 crew |
| Other | Mess, galley, sanitary |
