32 tbp twin screw Tug
1982, Versatile, solid built towing tug with azimuth bow thruster, 2 x Cat 399, 895 kW each. FiFi pump and monitors as well as light salvage equipment. Location: North Sea. Enquire
General | |
Built | 1982, Netherlands |
Class | RINa, C ✠ Tug MN unrestricted navigation |
Dimensions | |
Length | 28.5 m |
Beam | 8.8 m |
Depth | 4.25 m |
Draft max | 3.8 m |
GRT | 245 |
Tank capacities | |
Fuel | 95 m3 |
Fresh water | 35 m3 |
Foam | 6 m3 |
Water ballast | 35 m3 |
Performance | |
Bollard pull | 32 t |
Speed | 12 knots |
Machinery | |

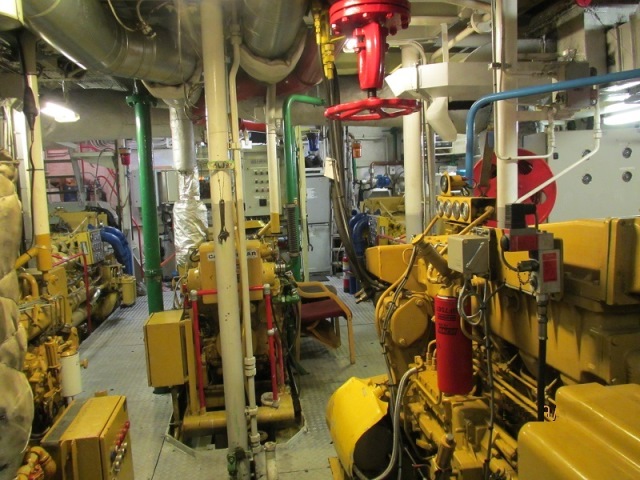

Main engines | 2 x Caterpillar D399 PCTA, 895 kW each |
Reduction gear | 2 x Reintjes WAV 1050 |
Aux engines | 2 x Caterpillar 3304, 82 kW each |
Generators | 2 x 95 kVA – 380/220 V at 50 Hz |
Bow thruster | 4 tons retractable -360 degrees |
Towing & Salvage equipment | |
Towing winch | Hydrakraft 88-20t, split drum |
Wires | Main: 750 m, spare: 350 m |
Capstan aft | Steen, capacity 30-75 kn |
MOB boat | Akva |
Deck crane | knuckle boom PK 17500, 1 ton x 8.0 m |
Portable pumps with various capacities | |
Oxy-acetylene burning torch, cutting and welding | |
Sundry steel wires, shackles, pendant and polypropylene lines | |
Fire fighting | |
Pump engine | 1 x Caterpillar 3306 PC-TA, 148 kW |
Pump | 1 x 288 m3/hr Nijhuis, 10.5 bar head |
Monitor | 2 x |
Navigation & Communication equipment | |
Autopilot | Anschutz Digital Pilotstar “D” |
SSB radio | Furuno SSB FS-1562/15 |
VHF DSC | Furuno FM-8500 |
ch. 70 duty | Sailor RT 144c |
Weather fax | Furuno Fax-208A MK2 |
Navtex | Furuno OP08-2 |
Electronic chart | Maxsea |
GPS, DGPS | Furuno GP-80 |
Echo Sounder | Radio Holland El 4242 |
