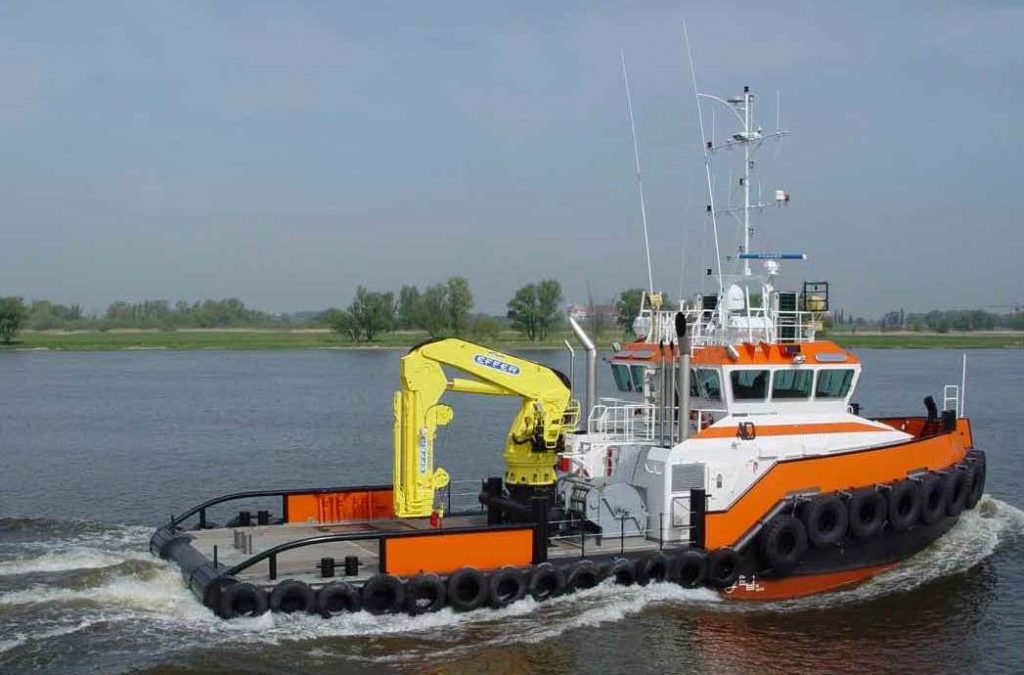

Shoalbuster 2609 (2 sisters)
Towing, Anchor Handling and Dredge Support
2004, BV. l x w x d (m): 26.0 x 9.0 x 3.5, max. draft 2.65 m. 2 x Cat 3508, 820 kW each, 30 tbp. knuckleboom crane: 7.5 ton @ 15.5 m. Middle East / Australia. Inquire
| General | |
| Built | 2004 |
| Class | BV, I 3/3 ✠ Hull • Mach, Tug, |
| Unrestricted Navigation | |
| Dimensions | |
| Length over all | 26.0 m |
| Beam | 9.3 m |
| Depth at Sides | 3.5 m |
| Maximum Draft | 2.6 m |
| Deck space / load | 70 m² / 45 t |
| Tank capacity | |
| Fuel Oil | 130 m3 |
| Fresh Water | 28 m3 |
| Performance | |
| Bollard Pull | 30 ton |
| Speed | 11 knts |
| Propulsion | |
| Main Engines | 2 x Caterpillar 3508B TA, 825 kW each |
| Propulsion | 2 x Fixed Pitch Propellers |
| Bow thruster | 90 kW |
| Rudders | 2 x Fishtail (45 degrees) |
| Generators | 2 x 87 kVa |
| Deck equipment | |
| Deck Crane | 7.5 ton @ 15.5 m |
| Crane winch | 5 ton |
| Towing / AH Winch | 50 ton, double drum |
| Towing Hook | 35 ton Mampaey |
| Towing Pins | 3 x Hydraulic |
| Tugger Winch | 6 ton Pull |
| Stern roller | 4.0 m x 1.0 m |
| Accommodation | |
| Heated and air-conditioned | |
| Cabins | 4 x 1-berth and 1 x 2-berth |
| Living spaces | Galley/mess and sanitary facilities |
