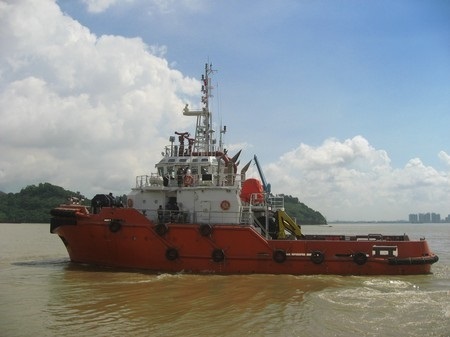

70 tbp ASD Escort FiFi-1 (2 sisters)
SBM, Terminal, Escort, FiFi-1
2016, ABS class, 475 GT, Length: 31.0 m, Beam 11.0 m. 2 x Cat. 3516C, 2,000 kW each. 68 tbp ahead, aft drum 150 ton brake, forward drum 180 ton brake, FiFi pump 2800 m3/h, 11 berth accommodation. Far East. Inquire
| GENERAL | |
| Built | 2016 |
| Class | ABS, ✠ A1, Towing Vessel + FiFi vessel class 1, Ⓔ, ✠ AMS |
| DIMENSIONS | |
| Length o.a. | 31.0 m |
| Beam | 11.0 m |
| Draft design | 4.3 m |
| Depth | 5.6 m |
| GRT | ≈ 475 |
| PERFORMANCE | |
| Bollard Pull | 68 tons (ahead) |
| Speed | 12 knots |
| TANK CAPACITY | |
| Fuel | 120 m3 |
| Fresh water | 30 m3 |
| MACHINERY | |
| Main Engine | 2 x Cat. 3516C, 2000 kW each |
| Generator | 2 x Cat. 150 kW / 50Hz/1500 rpm |
| Harbour Gen. | 1 x Cat. 51kw /50Hz/ 1500 rpm |
| Propulsion | 2 x Schottel SRP 1515FP |
| DECK EQUIPMENT | |
| Escort winch | Brake holding: 150 t, capacity: 110 m + 110m of Φ80mm pp rope |
| Towing winch | Brake holding: 180 t, Drum capacity: 700 m x 52 mm |
| Crane | 1 x Palfinger Marine Crane Model PK12000 MB |
| FIRE FIGHTING & LIFE SAVING | |
| Internal | |
| Life raft | 2 x 15-men inflatable life rafts |
| Rescue Boat | 1x 6 persons rescue boat with Davit |
| Lights | Karl Dose search/Aqua flood light |
| ER | Fixed CO2 system; |
| External | |
| FiFi-pump | 2800 m3 driven by M/E PTO |
| Monitor | 2 x Electrical on mast deck |
| ACCOMMODATION | |
| Cabins | 3 x 1 – Berth |
| 2 x 2 – Berth | |
| 1 x 4 – Berth | |
| Total | 11 berths |
| Air conditioning | Central system for crew’s room, mess room and wheel house |
| NAVIGATION & COMMUNICATION | |
| GMDSS | A1 + A2 + A3 area |
| Radar | 1 x JRC JMA-5212-6 |
| Depth Sounder | 1 x JRC JFE-380 |
| Radio | 1 x MF/HF JRC JSS-2150 |
| VHF | 2 x JRC JHS-770S with DSC |
| AIS | 1 x JRC JHS-183 |
| Auto Pilot | 1 x Saura SA-10 |
| Compass | 1 x Saura SR-165 |
| Weatherfax | 1 x JRC NCR-333 |
| GPS | 1 x JRC JLR-7500 |
| Inmarsat C | 1 x JRC JUE-87 |
