70 tbp ASD Tug (2 sisters)
4 September 2016
60 tbp ASD FiFi-1
4 September 2016
70 tbp ASD Tug (NB 3 sisters)
Harbour, Terminal, Escort & FiFi

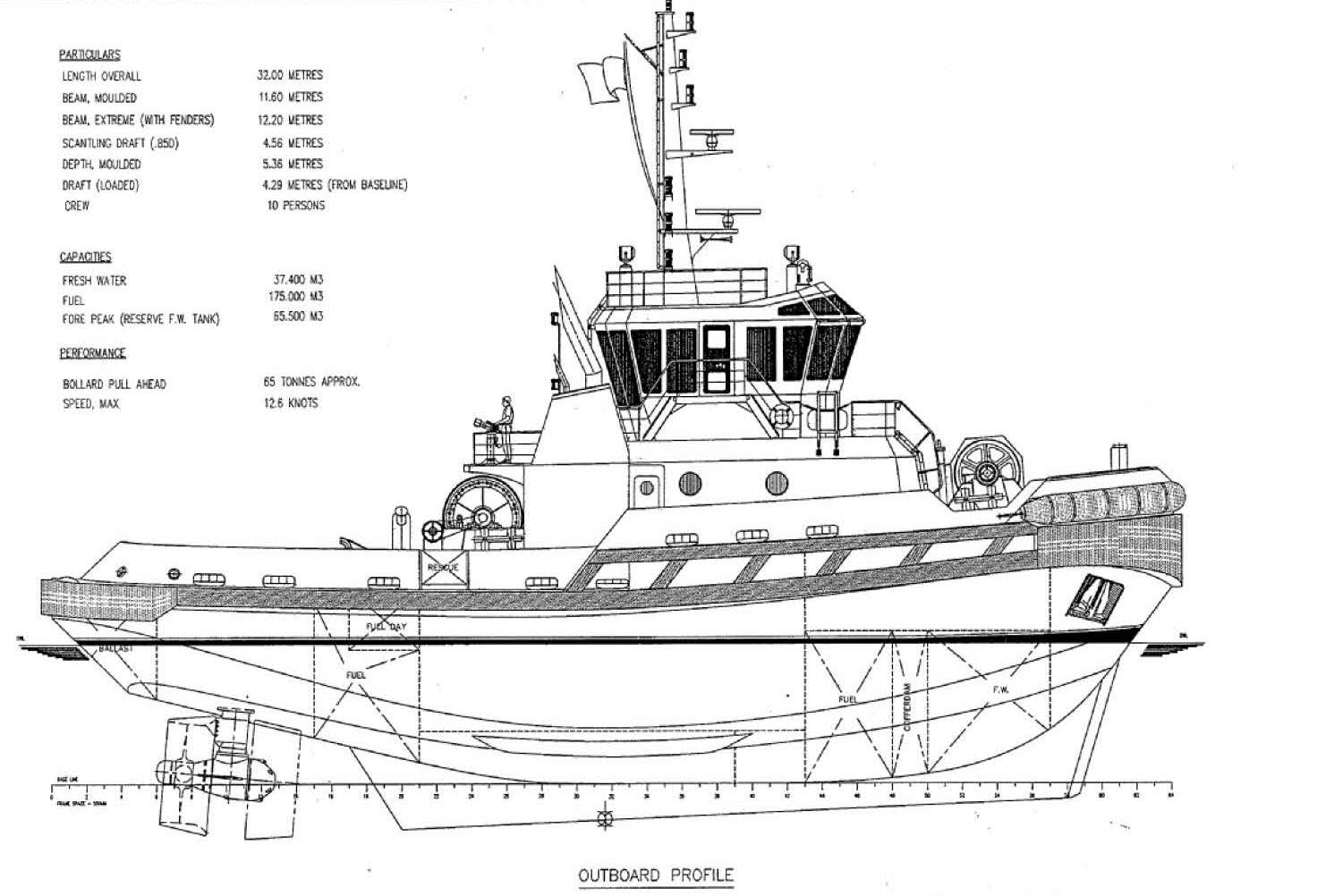

RAmparts 3200 class tug boat, 70 tons Bollard Pull, Class: Rina C, Unrestricted Navigation, Escort Tug, FiFi 1, Dimensions(m): 32 x 11,6 x 5,6, Free running,speed: 13 knots, 2 x Wartsila type 6L26 1000 rpm total 4080 kW, LIPS type -S/WN-K Hawser winch, Towing winch: Single drum 1000m of 52mm SWR, Tow pins, Stern roller: 4.2m length with 0.9m diameter, Deck crane: Palfinger, 12.4m outreach. Three (3) months delivery. Price: Inquire
| GENERAL INFORMATION | |
| Classification : | American Bureau of Shipping |
| Class Notation : | ✠ A1 Towing and Escort Fire Fighting vessel Class 1 ✠ AMS |
| Unrestricted Service | |
| DIMENSIONS | |
| Length, overall | 32.0 m |
| Breadth, moulded | 11.6 m |
| Depth, main deck | 5.4 m |
| Design draft | 3.85 m |
| GRT | 495 |
| CAPACITIES | |
| Deadweight (maximum) | 200 t |
| Deck Cargo | 60 t |
| Fuel | 175 m³ |
| Potable Water | 37 m³ |
| Ballast Water | 4.0 m³ |
| MACHINERY | |
| Main Engines | 2 x 2500 BHP Niigata 6L28HX Engine at 750 rpm |
| Propulsion | Niigata ZP-41 Z-Peller |
| Generators | 2 x Cummins, 215 kW each |
| Harbour Generators : | 1 x Cummins, 60 kW |
| PERFORMANCE | |
| Speed | Max. Speed: 12.8 knots at 100% MCR |
| Fuel Consumption | approximate 12.5 t/day |
| Endurance | 10 days, 2880 nm |
| ACCOMMODATION | |
| Berths | 10 persons ( 2 x 1p, 2 x 2p, 1 x 4p) |
| 1 x galley | |
| All living space fully air-conditioned | |
| DECK EQUIPMENT | |
| Bollard Pull | 67 tonnes |
| Towing Winch (Aft) | Electro-hydraulic single Drum type |
| Brake/pull: 175 t / 65 tx 0~8 m/min, 10 t x 0~40 m/min | |
| 800 m x 52 mm dia steel wire rope | |
| Escort winch (fwd) | Double Gyspy, Single Split Drum, Double Wrapping Head |
| Brake/pull: 175 t / 65 t x 0~8 m/min, 10 t x 0~40 m/min | |
| 2 x 1100 mm dia synthetic rope | |
| Stern Roller | 3.0 meters length by 0.8 m diameter |
| Capstan: | Hydraulic vertical type 5 t at 15 m/min |
| EXTERNAL FIRE FIGHTING | |
| FiFi-1 | 2 x 1200 m³/hr |
| Fire Monitors | 2 x 1200 m³/hr with water curtain system |
| Fire Pump | 1 x 90 m³ |
| Emergency Fire Pump | 1 x 58 m³ |
| Foam Tank | 18 m³ |
| ELECTRONICS | |
| Radar | 1 x Furuno FAR-2117, 1 x Furuno FAR-1510MK3 (ARPA) |
| Gyro Compass: | 1 x Anschutz Standard 22 |
| Magnetic Compass: | 1 x Lilley & Gillie MK2000 |
| Auto Pilot : | 1 x Anschutz Nautopilot NP600 |
| EPIRB | 1 x McMurdo E5 |
| PA System | 1 x Vingtor SPA |
| Sound Powered Phone | 1 x Phontech 4000 series |
| GPS Navigator | 1 x Furuno GP-150 |
| Two way VHF Transceiver | 2 x ICOM-GM1600 |
| AIS | 1 x Furuno FA-150 |
| Speed Log ( Dopper Log ) | 1 x Furuno DS80 |
| Echo Sounder | 1 x Furuno FE-700 |
| Inmarsat C | 1 x Furuno Felcom-15 |
| Fire and General Alarm | 1 |
| Navtex Receiver | 1 x Furuno NX-700B |
| SART | 1 |
| MF/HF (250W) | 1 x Furuno FS-2570 |
| VHF Radio Installation | 2 x Furuno FM8805 |
Please contact us for detailed specifications
