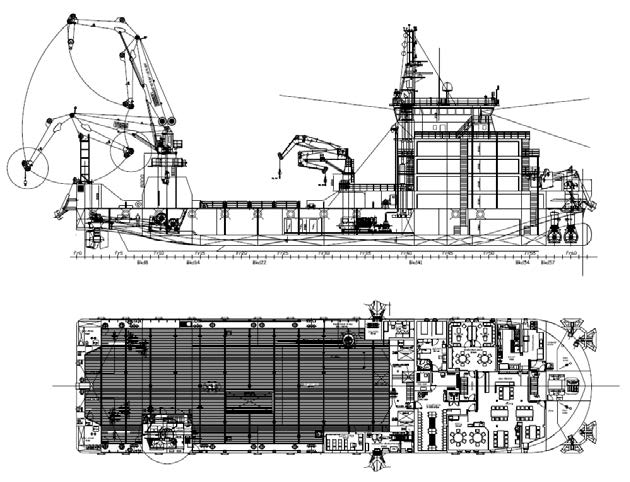

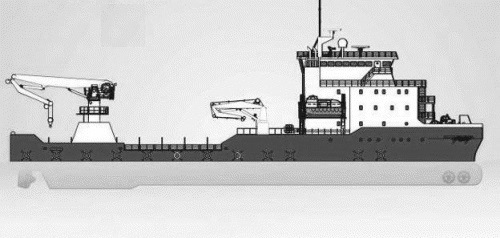

DP-2, 8-PM Offshore Maintenance / MPSV (2 sisters)
2010. BV class. DP-2, 8-Point Mooring. Loa 75 m, Width 20 m, Draft 5.0 m. Deck area/deck load: 720 m2/1,175 tons. 40 ton AHC knuckle boom crane. Total complement 100+. Inquire
| GENERAL | ||
| Year Built: | 2010 | |
|
Class:
|
BV I + HULL + MACH Special Service / Offshore Support; Fire fighting ship / Fire fighting 1 Waterspray Unrestricted navigation + AUT-UMS; + ALM; +DYNAPOS-AM/AT-R; COMF – NOISE 3 | |
| DIMENSIONS | ||
| Length oa | 75.0 m | |
| Breadth mld | 19.5 m | |
| Depth | 5.50 m | |
| Draft (Min / Max) | 3.85 m / 5.50 m | |
| DWT | 1,860 t | |
| GT | 3050 | |
| PROPULSION – MACHINERY | ||
| Main propulsion | 2 x 1,300 kW FP Azimuth thrusters | |
| Bow thruster | 2 x 700 kW CP Tunnel | |
| Main generator | 5 x 910 kW – 460 V | |
| Harbour generator | 1 x 80 kW – 460 V | |
| DECK CRANE | ||
| Offshore crane | SMST knuckle boom | |
| Harbour capacity | DAF 1.3 – 40 t @ 9 m – 15 t @ 21.5 m | |
| Offshore capacity | DAF 1.6 – 30 t @ 9 m – 11 t @ 21.5 m | |
| Main winch | 40 t / 17 t – 1,500 m – AHC – Man Riding | |
| Auxiliary winch | NA | |
| DECK EQUIPMENT | ||
| Tuggers | 1 x 10 t | |
| Capstans | 2 x 5 t | |
| Deck service air supply | 1,200 m3/h @ 8 bars | |
| Deck power supply | 2 x 300 kW – 460 V | |
| Work boat | 1 MSI Marine | |
| Deck provision crane | 10 t @ 10 m | |
| Mooring | 4 x 40 t | |
| CAPACITIES & DELIVERY RATES | ||
| Deck area | 720 m² | 10 t/m² (aft) & 5 t/m²(fwd) |
| Deck cargo | 1,175 t | 1 m above deck |
| Fuel oil | 600 m³ | 80 m3/h @ 9 bars |
| Drill or Water ballast | 1,290 m³ | 150 m3/h @ 10 bars |
| Fresh water | 779 m³ | 30 m3/h @ 9 bars |
| Mud / Brine | 200 m³ / 400 m³ | 2 x 80 m3/h @ 9 bars |
| Foam: | 8.6 m³ | |
| SPEED & CONSUMPTION | ||
| Maximum speed (100%) | 11 knots – 14 t/day | |
| Service speed (80%) | 10 knots – 11 t/day | |
| Stand-by at port | 2 t/day | |
| Stand-by on DP | 4 t/day | |
| DYNAMIC POSITIONING | ||
| Dynanic Positioning | DP-2, Sirehna Easy DP200 | |
| Reference 1 | DGPS 1 SAAB R4 | |
| Reference 2 | DGPS 2 SAAB R4 | |
| Reference 3 | Cyscan Laser Reference system | |
| Reference 4 | Sonardyne Ranger Pro USBL | |
| COMMUNICATION | ||
| Inmarsat | 2 x Sat C | |
| VSAT | 1 x Ku band 128 Kbit | |
| Video network | YES | |
| ACCOMMODATION | ||
| Single cabins | 9 | |
| 2 man cabins | 35 | |
| 4 men cabins | 6 | |
| Total | 103 | |
| Other | 2 Mess / 2 Day rooms, 1 Conference room, 1 Gym | |
| Air conditioning | Yes | |
| EXTERNAL FIRE FIGHTING | ||
| Class | FiFi-1 | |
| Pumps | 2 x 1,800 m3/h | |
| Monitors | 1 x 1,200 m3/h | |
