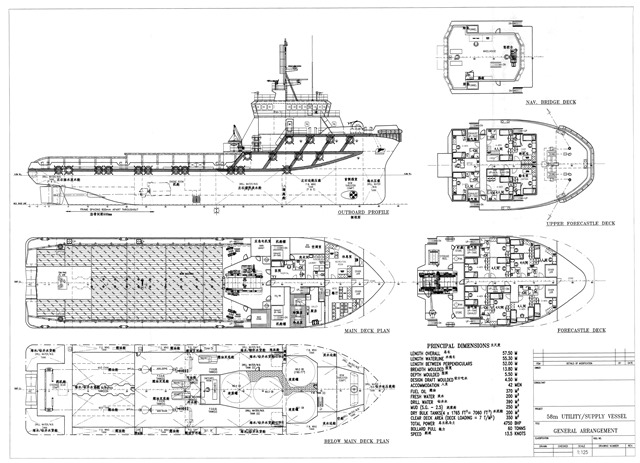

60 tbp AHTS FiFi-1
2004, BV. Loa 57.5 m, width 13.80 m, depth 5.50 m, max draft 4.80 m. DW 1340 tons. Deck cargo: 600 t. Deck Area 380 m2. Location: Sinapore area. Inquire
| GENERAL | |
| Year Built | 2004 |
| Classification | BV, I + Hull + Mach Supply Vessel, Fire Fighting Ship/ |
| Water Spraying Unrestricted navigation + Mach. | |
| DETAILS | |
| Length Overall | 57.50 m |
| Breadth | 13.80 m |
| GT | 1,200 |
| Deadweight | 1,340 t |
| Depth Moulded | 5.50 m |
| Maximum draft | 4.80 m |
| Clear deck Space | 380 m² |
| Deck loading | 600 t |
| Max Speed | 10.0 kts |
| Economical speed | 8.0 kts |
| Bollard Pull tonnes | 60 t |
| Sewage Plant | 1 x WCB – 50 |
| Rudders | 2 x Type L, Steering Cylinder |
| Joystick | Kawasaki |
| Flow Meter | Maker Oval Corporation Model LB602.152-B114- 030 |
| CAPACITY | |
| Fuel Oil | 370 m³ |
| Potable Water | 200 m³ |
| Drill Water | 360 m³ |
| Oil Based Mud | 250 m³ |
| Dispersant | 20 m³ |
| Dry Bulk | 46.72 m³ in four tanks |
| Foam | 20 m³ |
| PUMPING RATES | |
| Fuel Oil | 1 x 150 m³/hr @ 75m head |
| Potable Water | 1 x 100 m³/hr @ 75m head |
| Drill Water | 1 x 75 m³/hr @ 40m head |
| Oil Based Mud | 1 x 70 m³/hr @ 85m head |
| Dry Bulk | 1 x 40 m³/hr @ 56m head |
| MACHINERY | |
| Main Engines | 2 x Caterpillar 3516B DITA, 1,800 kW each |
| Generators | 3 x CAT 3408C 315 kW |
| Emergency Generators | 1 x 65 kW 415V/3ph/50Hz Perkins |
| Bow Thruster | 2 x Kawasaki KT 43-B1CPP 315kW |
| Propulsion | 2 x CPP Nicle Luminium Bronze |
| ACCOMMODATION | |
| Berths | 2 x 1 berth cabin, 4 x 2 berth cabin, 8 x 4 berth cabin |
| Total | 42 |
| FIRE FIGHTING | |
| Class | 1 |
| Monitors | 2 x 1,200 m³/hr |
| Pumps | 2 x 1,541 m³/hr |
| DECK EQUIPMENT | |
| Towing Winch | |
| Type | Electro-hydraulic waterfall |
| Pull | 10T |
| Brake Holding | 200mt |
| Wire Capacity | 56 mm x 1,000 m |
| Anchor Handling Winch | |
| Type | 1 x Rolls Royce Electro-hydraulic waterfall |
| Pull | 10 T |
| Brake Holding | 200 mt |
| Wire Capacity | 56 mm x 1,000 m |
| Tugger Winch | |
| Number & Capacity | 2 x 10t Electro-Hydraulic |
| Wire Capacity | 22 mm x 150 m |
| Other Deck Equipment | |
| Storage Drum | Electro-hydraulic 56 mm x 100 m |
| Towing Pins | 1 x 80 t Karmoy |
| Shark Jaws | 1 x 80 t Karmfork |
| Stern Roller | 1 x 200 t 4 m x 1.6 m |
| Deck Voltage & Sockets | 2 x 415 V, 2 x 220 V |
| LIFESAVING | |
| Lifejackets | 58 |
| FRC/Rescue Boat/Davit | 1 x DNV-MED-B-5810 |
| Lifebuoys | 8 |
| Immersion Suits | 3 |
| Liferafts | 6 x 25 man |
