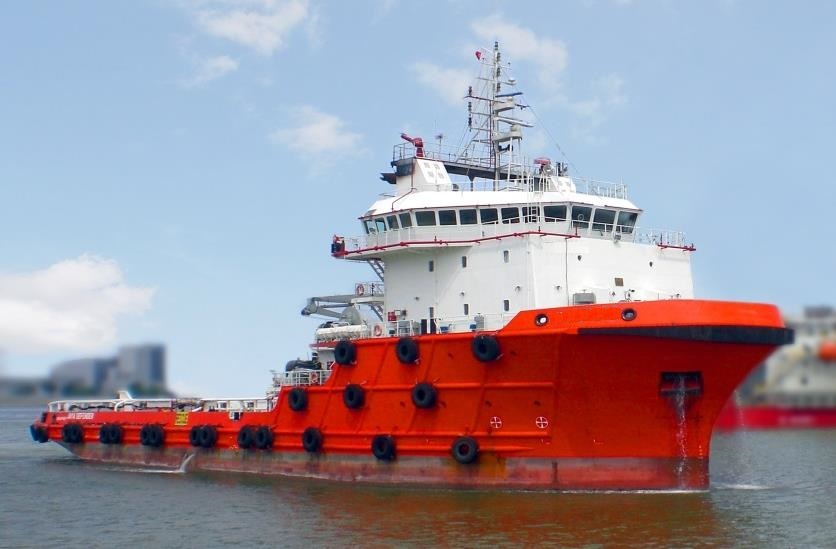

129 tbp DP-2 FiFi-1 AHTS
2009, ABS. Loa 72.5 m, width 17.50 m, depth 7.50 m, max draft 6.10 m. DW 2,475 tons. Deck cargo: 600 t. Deck Area 500 m2. Location: SEA. Price: Inquire
| General | |
| Year Built | 2009 |
| Classification | ABS, ✠ A1 Ⓔ,Towing Vessel, FiFi Vessel Class 1, |
| Offshore Support Vessel AH ✠ AMS, ✠ DPS-2 | |
| Dimensions | |
| Length oa | 72.5 m |
| Beam | 17.0 m |
| Depth | 7.50 m |
| Draft max | 6.10 m |
| GRT | 2,895 |
| Cargo capacity | |
| Clear deck Space | 500 m² (36 x 14) |
| Deck load | 600 t |
| Deadweight | 2,475 t |
| Performance | |
| Speed max | 14.5 kts |
| Speed eco | 11.0 kts |
| Bollard Pull | 129 t |
| Sewage Plant | 1 x 40 men/day |
| Rudders | 2 x High lift |
| Joystick | Kongsberg |
| Flow Meter | Fitted |
| Tank / Transfer Capacity | |
| Fuel Oil | 1,390 m³, 1 x 200 m³/hr @ 90m head |
| Potable Water | 400 m³, 1 x 120 m³/hr @ 75m head |
| Drill Water | 400 m³, 1 x 120 m³/hr @ 75m head |
| Oil Based Mud | 670 m³, 2 x 75 m³/h @ 90m head (SG 2.5) (24 bar) |
| Dry Bulk | 200 m³, 2 x 20 m³/hr |
| Dispersant | 39.5 m³ |
| Foam | 20m³ |
| Machinery | |
| Main Engines | 2 x Caterpillar MaK 9M25, 4000 kW each |
| Propulsion | 2 x CPP |
| Bow Thruster | 2 x Kawasaki KT-88B3, 680 kW each, Tunnel |
| Shaft generators | 2 x DSG 86 L1-4, 2000 kW each |
| Generators | 2 x Cummins HC.M534D1, 370 kW each |
| Port generator | 1 x CAT C4.4 58 kW/440 V/60 Hz/3 Ph |
| Fire fighting | |
| Class | 1 |
| Pumps | 2 x 1,750 m³/h |
| Monitors | 1 x 1,200 m³/h |
| Deck Equipment | |
| AH/Towing Winch | Double Drum waterfall config. Brattvaag |
| Pull | 300 t @ 10.2 m/min at 1st layer |
| Brake Holding | 450 t static @ 1st layer (towing/anchor handling) |
| Wire Capacity | 2 x 76 mm x 1,500 m |
| Storage drum | 76 mm x 2,000 m |
| Tugger winch | 2 x 10 t, 22 mm x 250 m each |
| Towing Pins | 2 x with turntable top flapses |
| Shark Jaws | 1 x 300 t Karmfork |
| Stern Roller | 1 x 500 t 4.5 m x 2.0 m |
| Crane | 1 x 5 t, knuckle boom |
| Deck Voltage & Sockets | 2 x 415V, 2 x 220V |
| Water Maker | 1 x 5m³/day reverse osmosis |
| Accommodation | |
| Cabins | 8 x 1-berth, 17 x 2-berth |
| Total | 42 |
