Self-propelled 132 pax AWB (2 sisters)
5 September 2016
Accommodation Barge (2 sisters)
5 September 2016

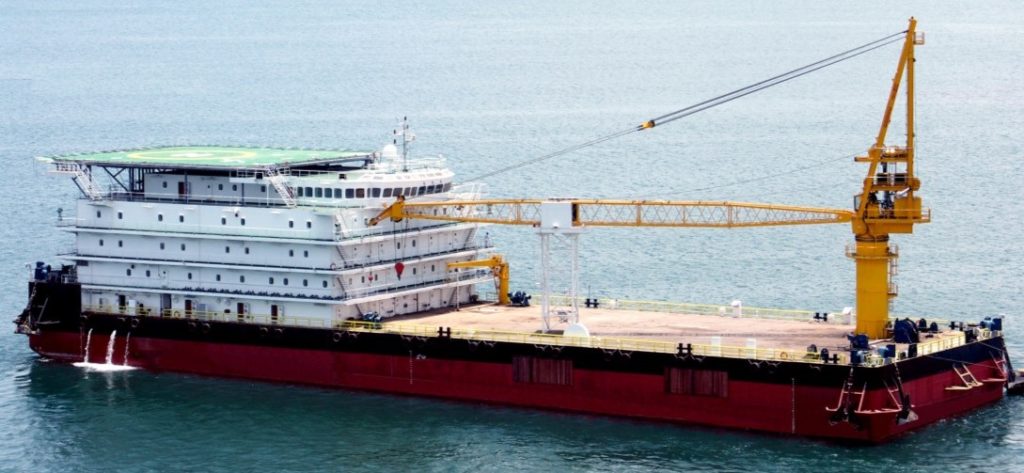

Accommodation Work Barge (2 sisters)
Unrestricted operation. 8-point mooring. S-92 Helideck, 68 ton, 70m elevation, 12m reach service crane. Location: WAF. For Charter only. Inquire
| GENERAL | |||
| Built | 2007 | ||
| Class | Bureau Veritas | ||
| Notation | I + HULL + MACH Offshore service ship/ Accommodation / Unrestricted navigation | ||
| DIMENSIONS | |||
| Loa | 100 m | ||
| Width | 30.50 m | ||
| Depth | 7.62 m | ||
| Draft max | 5.50 m | ||
| Clear deck space | 1,600 m2 | ||
| CAPACITY | |||
| GT | 10,413 | ||
| NT | 3,124 | ||
| Deck cargo | 1,197 mT | ||
| Deck strength | 15 T/m2 | ||
| Deadweight | 11,120 mT | ||
| Lightweight | 5,655 mT | ||
| PUMP CAPACITIES | |||
| Ballast pump | 2 x 500 @ 30 m head | ||
| Fire service pump | 1 x 160 m3 /hr @ 100 m head | ||
| FW pressure set | 3 x 30 m3 /hr @ 43 m head | ||
| SW pressure set | 3 x 30 m3 /hr @ 43 m head | ||
| Main fire monitor pump | 2 x 180 m3 /hr @ 100 m head | ||
| Gen. service fire pump | 2 x 130 m3 /hr @ 80 m head | ||
| FO transfer pump | 2 x 45 m3 /hr @ 45 m head | ||
| Emerg. Fire pump | 1 x 60 m3 /hr @ 65 m head | ||
| Foam monitor | 2 units | ||
| Fire hose / station | 8 x 40 mm D=15m hoses w/nozzle, 23 x 65 mm D=15m hoses w/nozzle | ||
| Desalination plant | 2 x 50 m3/day Reverse Osmosis | ||
| TANK CAPACITIES | |||
| Fuel (MGO) | 1715 m3 | ||
| Fresh water | 2,700 m3 | ||
| Ballast | 9,000 m3 | ||
| Ballast pumps | 2 x 500 m3 / h @ 30 m head | ||
| Anti heave tanks | Fitted | ||
| ACCOMMODATION | |||
| Fully air conditioned, comply with ILO 92 All cabins with en-suite toilet | |||
| D deck | 4 x 1 Man cabin (suite) | 192 | |
| C deck | 48 x 4 men cabin | 4 | |
| B deck | 8 x 1 men cabin | 8 | |
| 12 x 2 men cabin | 24 | ||
| 18 x 4 men cabin | 72 | ||
| Total | 300 | ||
| FIRE FIGHTING / SAFETY EQUIPMENT | |||
| Portable fire extinguisher | 80 x 6 kg dry powder; | ||
| 3 x 50 kg dry powder; 2 x 9 CO2 ; | |||
| 2 x 10 ltrs liquid chemical | |||
| FiFi-1 | 2 x 1450 m3 / h | ||
| Fire Alarm Central | 1 central panel w/42 manual points | ||
| CO2 System | Eng. room, winch, power pack rooms & paint locker room | ||
| Water mist system | Diesel Generators | ||
| Life rafts rescue boats | 26 x 25 men liferafts / 1 x 6 persons rigid rescue boat c/w davit | ||
| Stretcher | 2 units, capable of helicopter evacuation | ||
| NAVIGATION / COMMUNICATION | |||
| GMDSS / 1 x Furuno 8800S VHF Semi Duplex | |||
| 1 x Furuno FS-2570 MF/HF Radio / 1 x Furuno DMC 5 Watch Receivers | |||
| 2 x Icom VX-800D Walkie Talkies / 1 x Furuno NX-700(B) Navtex | |||
| 1 x Nera Worldphone Mini-M / 1 x GP-150 GPS | |||
| 1 x RM Young 05103-58 Anemometer / 1 x Furuno VX2 1934C Navnet | |||
| 1 x Furuno FE 700 Echo Sounder 200m working depth / 1 x Satellite compass 5c-502 | |||
| FACILITIES | |||
| Main deck | 1 office; Hospital 3-beds w/lockers & toilets; Paramedic room; video room w/sofa & armchair | ||
| Office deck | 4 offices; Crew recreation room; radio/control room; Internet room w/corner table & chairs; waiting room w/TV, tables & chairs; video room 1w/sofa & armchair on main deck gymnasium all equiped | ||
| B deck | 1 office; Messroom up to 150 pers. w/tables & chairs; galley all equiped; TV/video room w/1 smoker & 1 non-smoker area; conference room w/chairs/tables & whiteboard. | ||
| Sewage treatment | 2 x 150 men capacity | ||
| Helideck | Dia: 23 m, 9.3 mT loading / strength suitable for Sikorsky S92 helicopter | ||
| DECK EQUIPMENT | |||
| Mooring system | 8 x point mooring winches 70 mT@7m/min pull; 2 x tugger winches 10 T each Fwd & Aft | ||
| Anchors / wires | 8 x 7.0 T each (1 spare) Flipper Delta type / L=1500m, D=46mm | ||
| Main diesel generators | 5 x Caterpillar 3412, 500 kW each, 1500 rpm AC, 3-phase, 415/230 V, 50Hz | ||
| Emergency generator | 1 x Caterpillar 3056 DIT 86 kW, 415 V/3 Ph / 60Hz | ||
| Air compressors | 2 x 80 m3/m @ 10 bar | ||
| Main crane | 1 x API 2C rated crane 68.0 T @ 12m radius x 360° slewing, 70 m elevation | ||
| Provision crane | 3.0 T @ 10m, 5.0 T @ 5m, hosting height 32 m | ||
| Workshop | 1 complete w/lathe, 200mm Ø grinder, electric jig saw, oxy/acetylene cutting torch w/regulator & hoses & bench drill | ||
