130 tbp AHTS DP-2, FiFI-1, Oil Rec (2 sisters)
2009, BV class, 130 t Bollard pull, CAT engines. Well equipped, solid built. Location: Adriatic. Enquire
| General | |
| Built | 2009, EU |
| Class | BV, I ✠ Hull, ✠ Mach, Tug; Supply vessel/Special service – |
| Anchor handling; Fire fighting ship 1, Oil Recovery Ship – | |
| water spraying Unrestricted navigation, AUT-UMS, | |
| Dynapos -AM/AT -R | |
| Dimensions | |
| Length | 67.0 m |
| Width | 15.0 m |
| Depth | 6.75 m |
| Draft | 5.50 m |
| GRT | 2475 |
| Cargo capacity | |
| Deadweight | 1900 t |
| Deck Area | 410 m² |
| Deck cargo | 900 t (CoG 1 m above deck) |
| Deck Load | 5 t/m² |
| Performance | |
| Speed | 15.0 kn |
| Bollard Pull | 130 t |
| Consumption | 15 knots – 46 m³/day |
| 12 knots – 26 m³/day | |
| (one M/E) | 10 knots – 15 m³/day |
| Tank / Transfer capacities (tanks may be combined) | |
| Fuel Oil (service) | 435 m³ |
| Ballast / Drill Water | 775 m³, 2 x 120 m³/h at 8.0 bar |
| Fuel Oil – Cargo | 480 m³, 2 x 120 m³/h at 9.0 bar |
| Potable Water | 295 m³, 1 x 120 m³/h at 9.5 bar |
| Dry Bulk | 170 m³, 2 x 23.5 m³/min at 6.0 bar |
| Liquid mud / Brine | 455 m³, 2 x 75 m³/hr at 20.0 bar |
| Rec Oil | 205 m³ |
| Chain lockers | 135 m³ |
| Dispersant | 13,8 m³ |
| Machinery | |
| Main Engines | 2 x Cat C280-12, 4000 kW each |
| Propulsion | 2 x CPP in nozzles |
| Bow thrusters | 2 x 450 ekW, 1300 mm, CPP |
| Stern Thruster | 1 x 450 ekW, 1300 mm, CPP |
| Shaft Generators | 2 x 1000 ekW |
| Generators | 2 x Cat C18-TA, 405 ekW each |
| Harbour Generator | 1 x Cat C9-TA, 160 ekW |

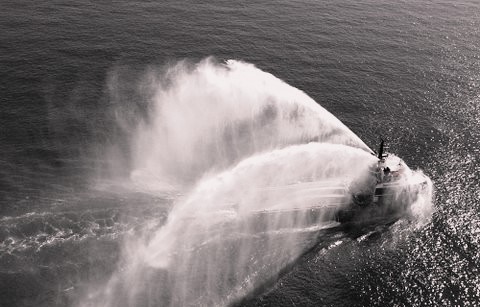

| Oil Rec / Fire Fighting / Rescue | |
| Spray Booms | yes |
| Pumps | 2,400 m³/h |
| Fast Craft / Working Boat | 1 x 6.7 m, 230 HP diesel engine |
| Fast Rescue Boat | 1 x 29,4 kW |
| Deck equipment | |
| AH / Towing winch | 1 x double drum, 150 t pull, 250 t brake, Hydr. |
| Towing wire | 1,100 m x 64 mm |
| Towing pins | 1 x 180 t |
| Chain fork | 1 x 250 t |
| Tugger winch | 2 x 10 t |
| Capstan | 2 x 5 t |
| Deck crane | knuckle boom 2.8 t at 10.8 m |
| Navigation and Communication equipment | |
| DP- System | DP-2 |
| Radar | 1 x X-band + S-band / ARPA |
| GMDSS | Area A3 |
| SATCOM | fleet broad band |
| Accommodation | |
| Crew | 17 |
| Passenger | 12 |
