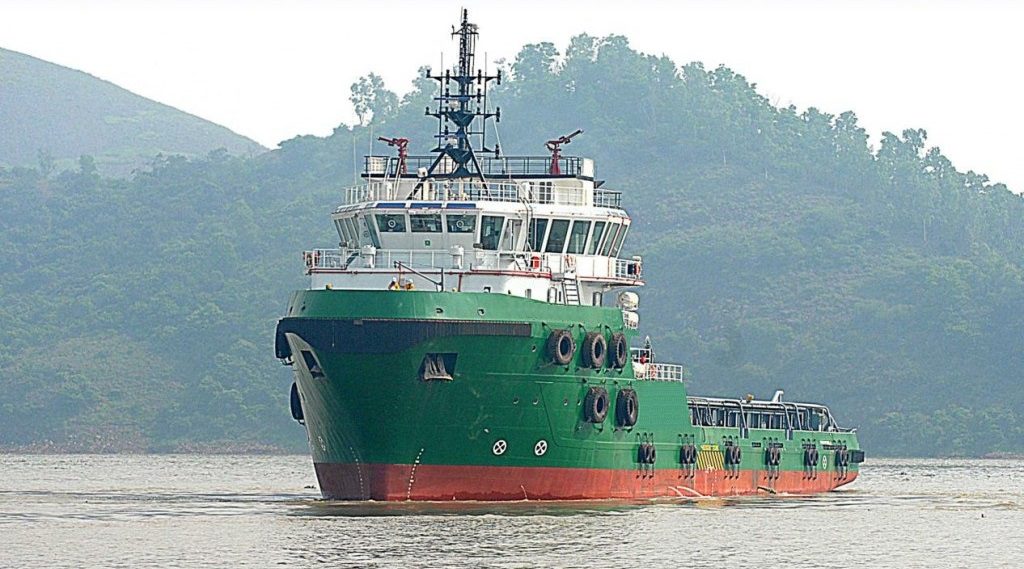

88 tbp AHTS, SPS, DP-2, FiFi-1
2016, ABS, Resale. Loa 65.00 m, width 16.00 m, depth 6.20 m, max draft 5.00 m. DW 1,800 tons. Deck Cargo 800 tons. Deck Area 435 m2. Location: Far East. Price: Inquire
| GENERAL | |||
| Class | ABS | ||
| Notation | +A1(E) OFFSHORE SUPPORT VESSEL (AH, SUPPLY-HNLS, TOW) OSR-C1 +AMS + DPS-2 FFV 1, SPS CODE UWILD UNRESTRICTED SERVICE | ||
| Built | 2016 | ||
| DIMENSIONS | |||
| Loa | 65.00 m | ||
| Lbpp | 58.50 m | ||
| Breadth moulded | 16.00 m | ||
| Depth | 6.20 m | ||
| Draft designed | 5.00 m | ||
| Accommodation | 8 x 1 berth cabins: | 8 men | |
| 5 x 2 berth cabins: | 10 men | ||
| 8 x 4-berth cabins: | 32 men | ||
| Total: | 50 men | ||
| PERFORMANCE | |||
| Speed | 12.5 knots at trial condition, 100% MCR, design draft. | ||
| Bollard Pull | 88 ton | ||
| CARGO CAPACITY | |||
| Deadweight | Approx. 1,800 t at scantling draft. | ||
| Deck Loading | 7 t/m2 | ||
| Deck Cargo Capacity | about 600 t | ||
| Deck Cargo Space | about. 435 m2 | ||
| TANK CAPACITY | |||
| Potable water | 440 m3 | ||
| Fuel oil | 580 m3 | ||
| WB/Drill water | 690 m3 | ||
| Dry bulk cargo tanks | 150 m3 | ||
| Mud / Brine/R.O | 460 m3 (SG 2.5) | ||
| Lub oil | 10 m3 | ||
| Dirty oil | 10m3 | ||
| Foam | 10 m3 | ||
| Dispersant | 10 m3 | ||
| MACHINERY | |||
| Main Engine | 2 x 3,300 HP. Medium speed | ||
| Propulsion System | Two (2) four or five bladed controllable pitch propellers to be supplied. | ||
| Main Gensets | Three (3) 450 KW diesel driven alternators (415V/3/50Hz). | ||
| Shaft Generator | Two (2) 1000 KW shaft generator driven by gear box | ||
| Bow Thruster | Two (2) transverse tunnel CPP bow thrusters, each giving a thrust of approx. 10T, to be driven by continue electrical motor. | ||
| Stern Thruster | One (1) transverse tunnel CPP stern thruster, giving a thrust of approx. 8T, to be driven by continue electrical motor. | ||
| DECK MACHINERY | |||
| AH/Towing Winch | One (1) set, high pressure electro-hydraulic driven, double drum, waterfall type. Braking capacity: 250 ton | ||
| Tugger Winches | Two (2) electro-hydraulic tugger winches of 10 tonnes at 15 m/min | ||
| Capstan | Two (2) electro-hydraulic capstans shall be installed at main deck aft (P & S), with pulling force of 10 tonnes at 15m/min. | ||
| Deck Crane | One (1) electro-hydraulic telescopic crane to be installed. SWL 2t at outreach 15m. | ||
