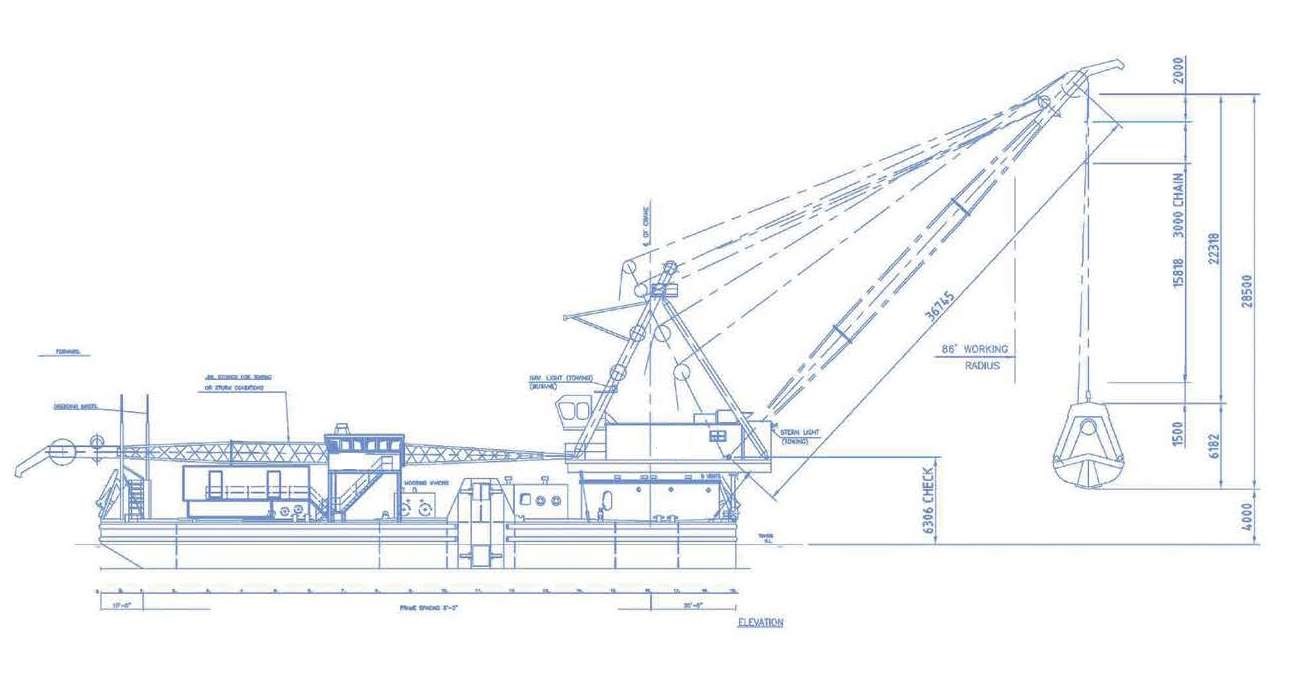

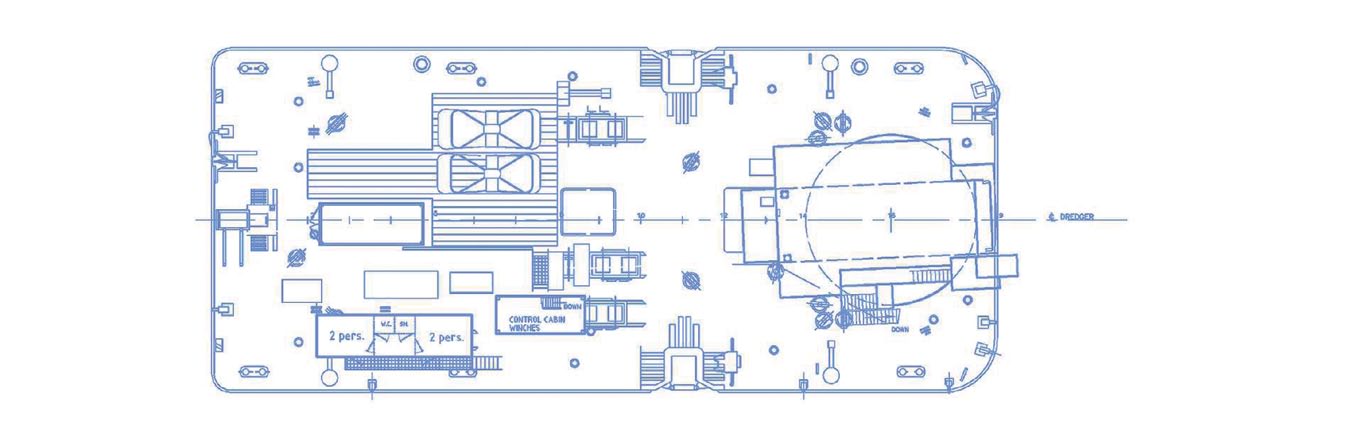

Clamshell / Grab Dredger
Direct from owners: 1970, 10 m³ & 12 m³ clamshell buckets. Dredging depth: -40m. Crane fully modified, very short cycle times, Besides clamshell and dragline configuration also certified for lifting 120 t @ 14.5 m. Location: Australia. Price: Enquire
| General | |
| Built / crane rebuilt | 1970 / 2005 |
| Classification | Lloyd’s Register +100A |
| Dimensions | |
| Length oa | 55 m |
| Length pontoon | 46 m |
| Width | 20 m |
| Depth | 3.35 m |
| Draft | 2.00 m |
| GRT | 895 |
| Pontoon | |
| Spuds | 2 x fixed and 1 x walking |
| Spud depth max | 15 m |
| Installed power | 850 kW |
| Crane | |
| Clamshell size | 10 – 12 m3 |
| Max dredging depth | 45 m |
| Crane engine power | 536 kW |
| Configuration | Clamshell bucket, dragline or lifting |
