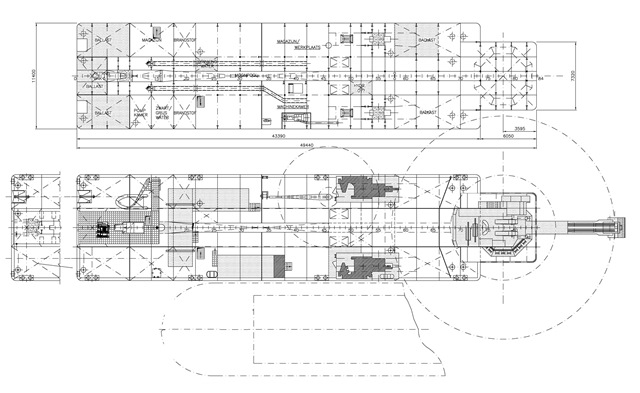

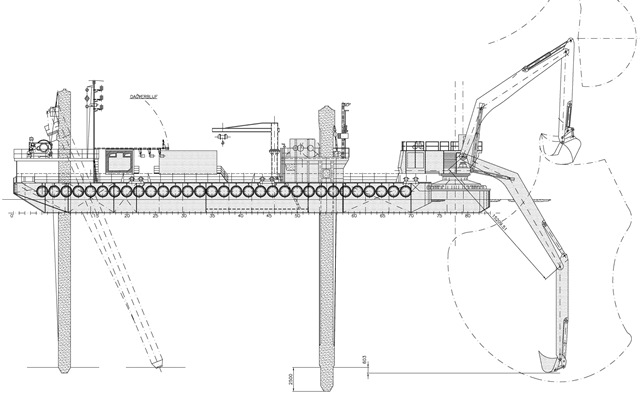

Backhoe dredger (PC1400 equivalent)
PC1400 equivalent pedestal mounted backhoe excavator. Fully overhauled, New slew ring bearing. 2 booms & 2 sticks. Location: Baltic. Enquire
| General | |
| Built | 1986 |
| Class | RINa, C ✠ Hull, dredger NP, unrestricted |
| Dimensions | |
| Length | 50 m |
| Beam | 11.5 m |
| Depth | 3.0 m |
| Draft | 2.0 m |
| GT | 450 |
| Excavator | |
| Type | PC1400 equivalent |
| Weight | ≈ 155 t |
| Engine | 1 x Cummins KTA38, 745 kW |
| Booms | 1 x 12.0 m, 1 x 15.0 m |
| Sticks | 1 x 7.0 m, 1 x 9.5 m |
| Buckets | 4,00 m³ – 8,00 m³ |
| Dredging depth | 18.4 m max |
| Machinery | |
| Generators | 1 x 175 kVA, 1 x 100 kVA |
| Deck equipment | |
| Spuds | 2 x fixed + 1 x swivel spud |
| Spud weights | 2 x 42 t + 1 x 32 t |
| Spud dimension | 26.5 m x 1200 mm x 1200 mm |
| Deck crane | 3 t at 12 m |
| Tank capacity | |
| Fuel oil | 49 m3 |
| Freshwater | 8 m3 |
| Hydraulic oil | 5 m3 |
| Waste oil | 7 m3 |
| Day time accommodation | |
| Mess room, pantry, sanitary facilities | |
| Pontoon control bridge | |
