350mm (14″) suction dredger + push boat
Built 2015. Type: 350mm Damen Dop Dredger. Max dredging depth: 35 m. 565 kW hydraulic power pack driving DOP pump and winches. 285 kW jet pump set. Length floating line: . Full flow control and monitoring system located in operating cabin. easy to operate. Includes a small pushboat tender with 5 t A-frame. Location: South America. Enquire
| General | |
| Type | 350 mm suction dredger |
| Built | 2015, Damen, the Netherlands |
| Dimensions | |
| Length | 17.0 m |
| Beam | 6.0 m |
| Depth | 1.6 m |
| Machinery | |
| Dredge pump | Submersible Damen DOP 350 |
| Suction/Discharge | 350 mm (14”) |

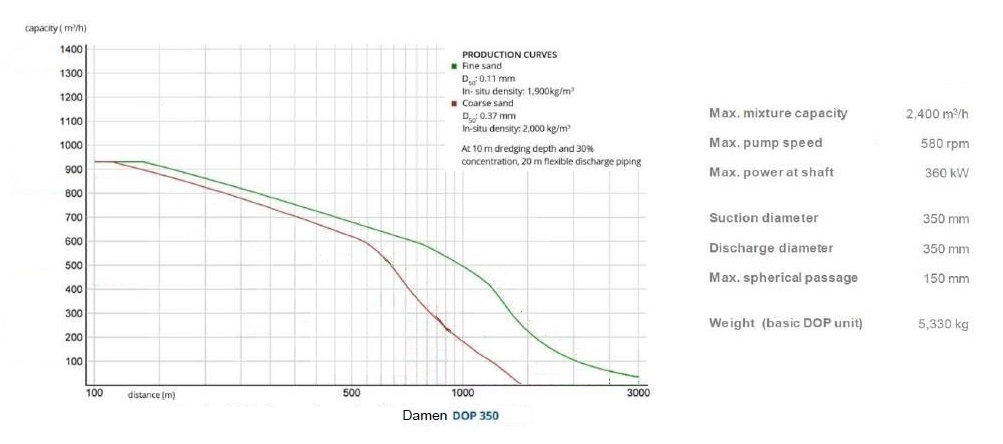

| Production rate | 950 m3/h (max) |
| Dredging depth | 35 m (max) |
| Power Pack DOP pump | Volvo TAD 1643VE, 565 kW |
| Hydraulic pumps | 2 x 900 ltr/min, 350 Bar |
| Power Pack Jet pump | Iveco Eng. 285 kW |
| Pump | 600 m3/h @ 9.4 Bar |
| Deck equipment | |
| 4-point mooring winch | 4 x 4 t pull |
| DOP pump hoist winch | 12 t pull |

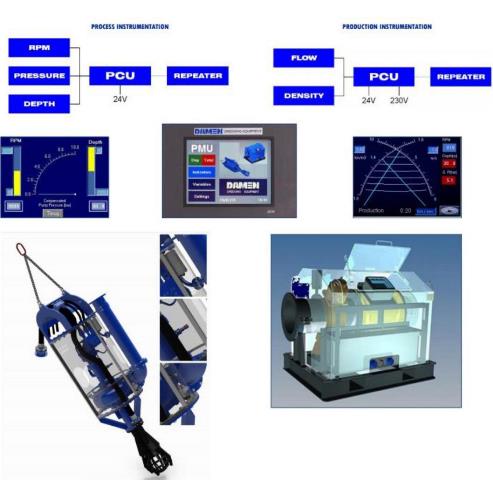

| Dredge control & monitoring | Cabin with full instruments |

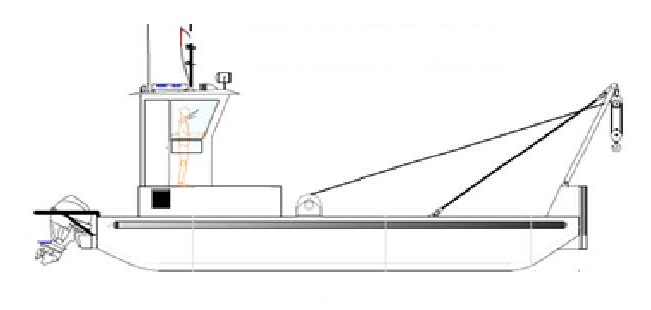

| Push boat / Tender | |
| Length | 12 m |
| Beam | 4.8 m |
| Depth | 1.2 m |
| Outboards | 2 x 115 hp Mercury |
| Power pack | 15 hp diesel driven |
| A-frame / Winch | 5 t pull |
| Diesel tank | 5.0 m3 |
| Modular 40 ft container transportable | |
