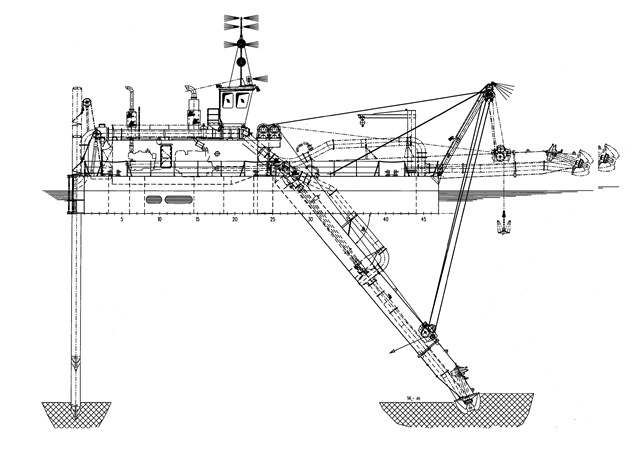

500mm (20″) Modular Cutter Suction Dredger
2013, IHC Beaver 5020C, BV class. Modular. Loa x B x D (m): 32.5 x 7.9 x 2.45. Dredgeing depth: 20 m. Dredgepump power: 745 kW. Location: Central America Enquire
| General | |
| Built | 2013 |
| Class | BV I, ✠ Hull • MACH Dredger |
| no propulsion Coastal area | |
| Dimensions | |
| Length overall | 32.5 m |
| Length over pontoons | 21.7 m |
| Beam | 7.9 m |
| Depth | 2.45 m |
| Draft | 1.45 m |
| Side pontoons | 19.0 x 2.4 x 2.45 m |
| Dredging particulars | |
| Dredging depth | 20 m |
| Suction pipe diameter | 550 mm |
| Discharge pipe diameter | 500 mm |
| Swing width | 29.0 m – 36.5 m |
| Deck / Dredge equipment | |
| Dredge pump | IHC, single-walled |
| Dredge pump engine | 1 x Caterpillar 3508, 745 kW @ 1,600rpm |
| Fuel consumption | 202 g/kWh |
| Power pack | 1 x Cat 3406, 345 kW |
| Fuel consumption | 208 g/kWh |
| Electrical | 24V DC, 8 kW |
| Cutter | 170kW, 30 rpm, Diameter 1,455 mm |
| Ladder & swing winches | Pull 9 ton, 20m/min Wire |
| Anchor / – wires | 500 kg, 100 m x 46 mm |
| Spuds | 19.0 m x 0.6 m, 6.2 t each |
| Spud cylinder | 3.1 m stroke |
| Deck crane | 2.0 t @ 3.0 m |
| Spud carrier | No |
