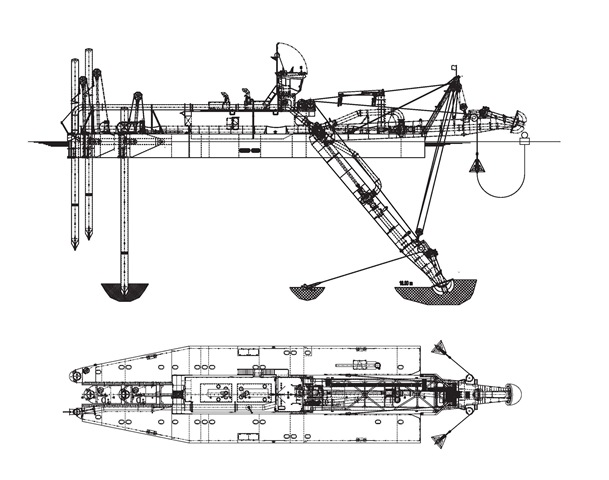

650mm (26″) modular Cutter Suction Dredger
2013, IHC 65 DDSP, BV class. Modular. Loa x B x D (m): 58 x 12.5 x 3.0. Dredgepump power: 1,825 kW. location: Central America. Enquire
| General | |
| Built | 2013 |
| Class | BV, I, ✠ Hull • Mach Dredger |
| no propulsion, Coastal area | |
| Dimensions | |
| Length overall | 58 m |
| Length over pontoons | 43.5 m |
| Beam | 12.5 m |
| Depth | 3.0 m |
| Draft (ops) | 1.95 m |
| Side pontoons | 43.5 x 4.7 x 3.0 m |
| Dredging capacity | |
| Dredging depth | 18 m |
| Cutting width | 48.5 m – 59.5 m |
| Suction pipe diameter | 650 mm |
| Discharge pipe diameter | 650 mm |
| Machinery / Equipment | |
| Dredge pump | IHC HR/MD 121-26-60 |
| Dredge pump engine | Caterpillar 3516C SCAC, 1,825 kW @ 1,600rpm |
| Hydr. power pack | C32 DITTA Acert, 994 kW |
| Electrical | 24V DC, Power (50Hz) 26 kW |
| Cutter | IHC, 700 kW, 30 rpm, Diameter 2.2 m |
| Ladder and swing winches | Line pull 240 kN, line speed 23 m/min |
| Anchor booms | Installed |
| Anchor, wires | weight 1,500 kg, Wire 150 m x 36 mm |
| Spuds | 23.4 m x 900 mm, weight 15,500kg |
| Spud hoisting cylinders | 3.75 m stroke |
| Spud carriage cylinder | 4.50 m stroke |
| Deck crane | 4.0 t @ 5.1 m |
