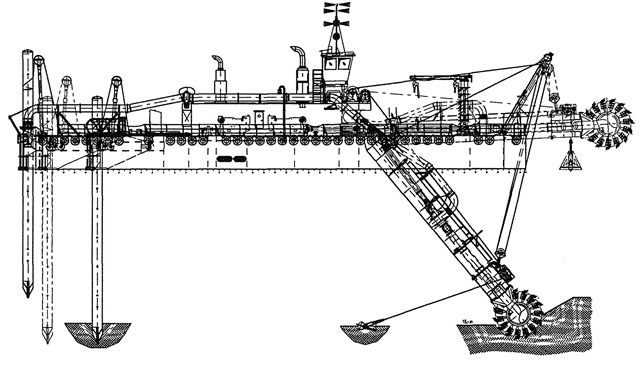

650 mm Bucket wheel Dredger
modern built Bucket wheel dredger, 650 mm suction line and 585 kW bucket wheel. Location: Eastern Europe. Enquire
| General | |
| Built | 2005 |
| Class | I ✠ Hull dredger-no propulsion, Coastal Area |
| next SS due | Dec 2025 |
| Dimensions | |
| Length oa | 55 m |
| Length pontoon | 44 m |
| Beam | 12.5 m |
| Depth | 3.0 m |
| Draft max | 2,1 m |
| Dredging particulars | |
| Dredging depth | 16 m |
| Suction line | 650 mm |
| Delivery line | 600 mm |
| Bucket wheel | 585 kW, 4.4 m diameter |
| Buckets | 15 x |
| Machinery | |
| Dredge pump engine | Cat 3516, 1585 kW |
| Power pack | Cat 3512, 1015 kW |
| Elec. power | 25 kVA |
| Deck equipment | |
| Ladder winch | 1 x 29 t, 20 m/min |
| Side winch | 2 x 15 t, 20 m/min |
| Anchors | 2 x 0.8 t |
| Spuds | 2 x 900 mm x 21.5 m |
| Spud lift cylinders | Yes |
| Spud carrier | 3.6 m stroke |
| Crane | 3.0 t @ 3.8 m |
