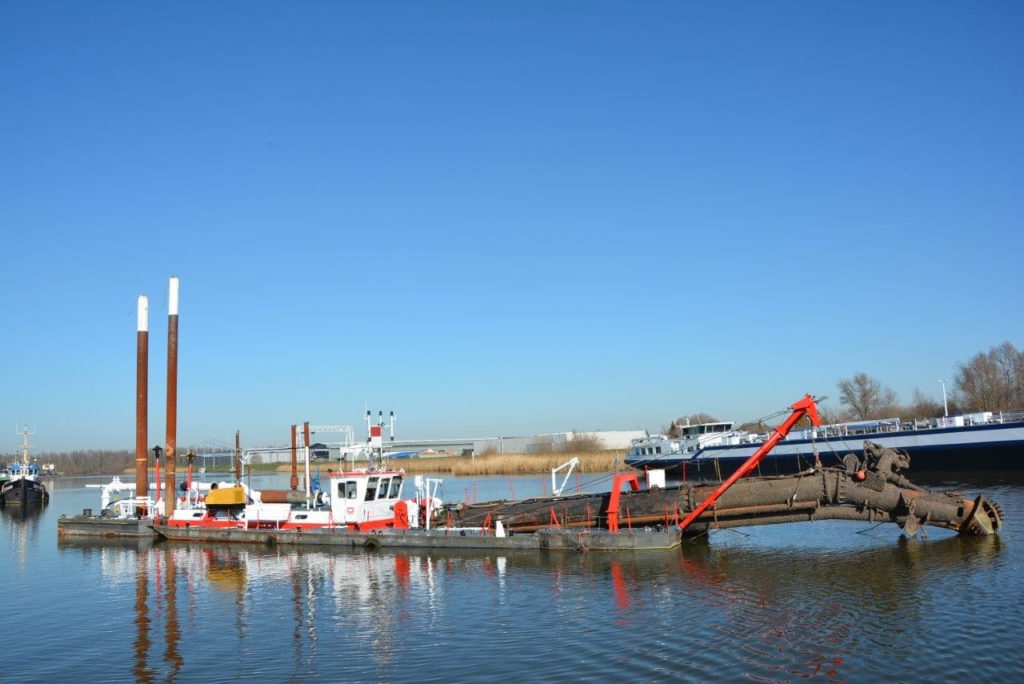

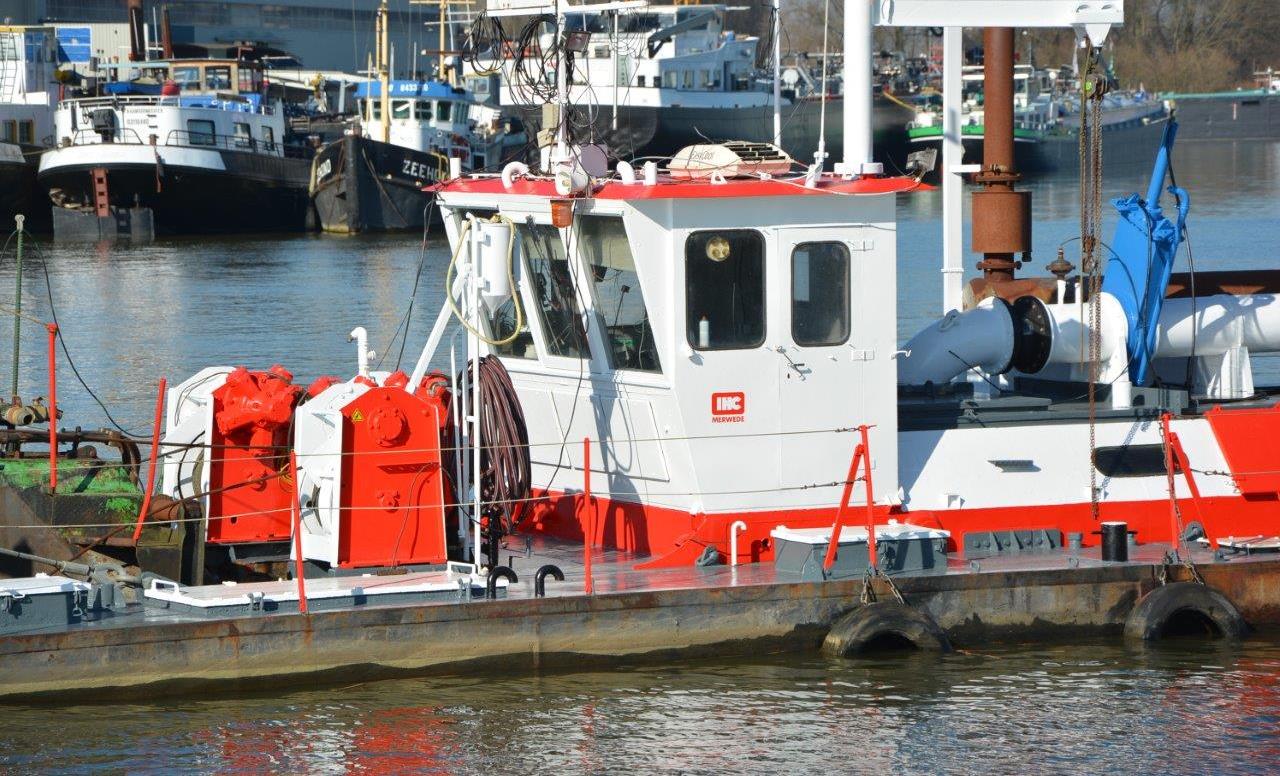

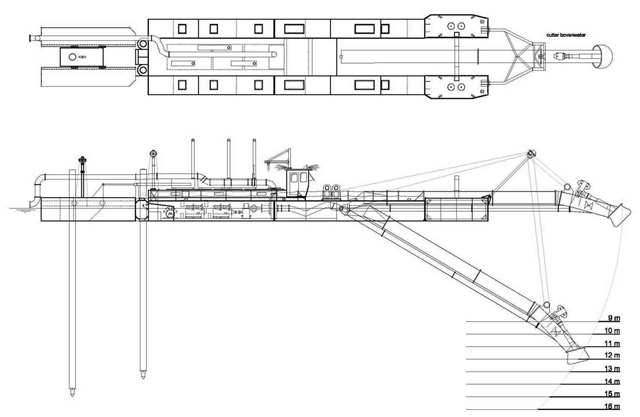

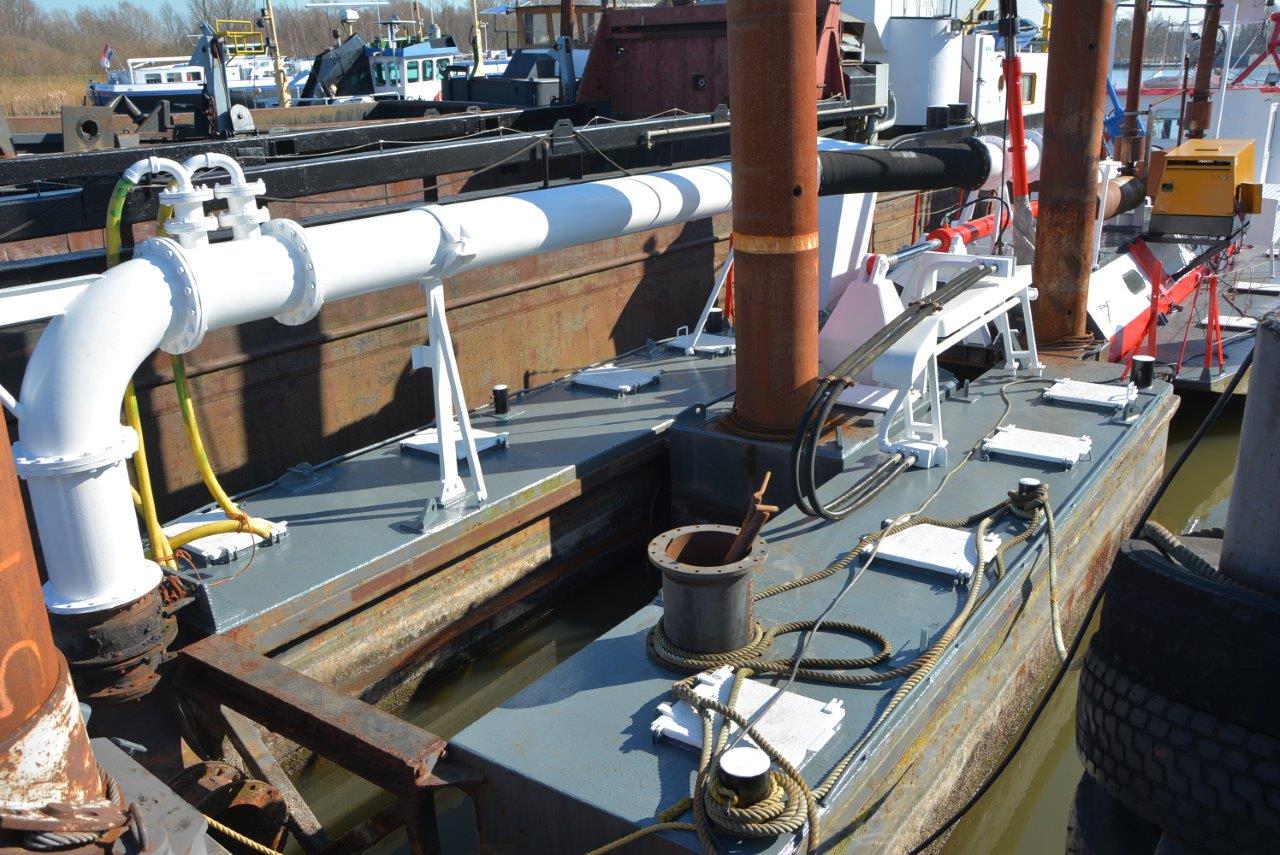

450 mm (18″) IHC modular CSD
Completely refurbished and attractively priced 450 mm (18″) IHC modular CSD. more details can be provided on request. Location: the Netherlands. Enquire
| General | |
| Built / updated | 1986 / regular |
| Dimensions | |
| Length | 47 m |
| Beam | 6.85 m |
| Depth | 1.6 m |
| Draft | 1.25 m |
| Other particulars | |
| Pipe (suction/delivery) | 0.45 m / 0.40 m |
| Dredging depth | 16 m |
| Spud carrier | Yes |
| Spuds | 2 x 18 m x 610 mm |
| Machinery | |
| Dredge pump engines | 2 x GM16V71 |
| Generator | 1 x 20 kW |
