Knuckle Boom Crane: GCC – 25 ton SWL

Knuckle Boom crane: GCC, SWL 25 t

Including: Certificates, Approved drawings, Manuals, Spare parts, Load charts, etc. Price: Inquire

Artikelnummer: J0013 Categorie: Tag:

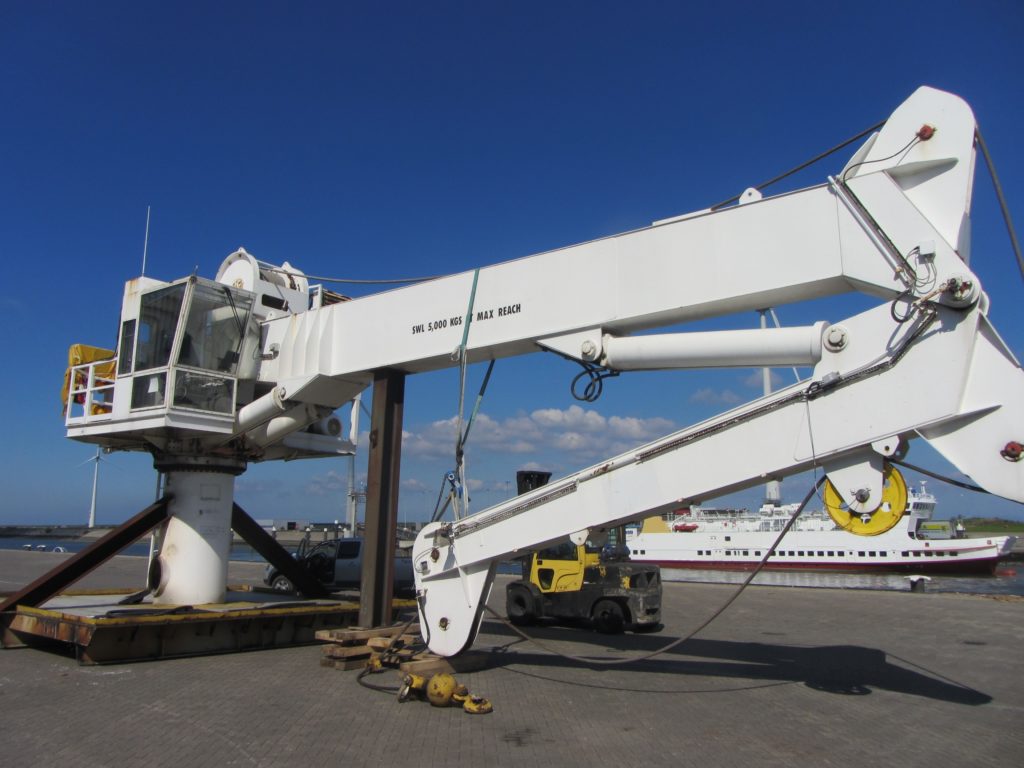

25 t SWL knuckle boom crane

Removed from vessel in good working condition
Built: 2008
Maximum outreach: 20 m
Minimum reach: 4.6 m
Capacity at max. outreach: 5 ton (dynamic & static)
Capacity at min. outreach: 25 ton (dynamic & static)
Maximum hook travel: 90 m
Main hook speed: 24 m / min.
Single line pull: 27 ton.
Slew speed: 0 – 1.0 rpm
Slewing rotation: 360 degrees

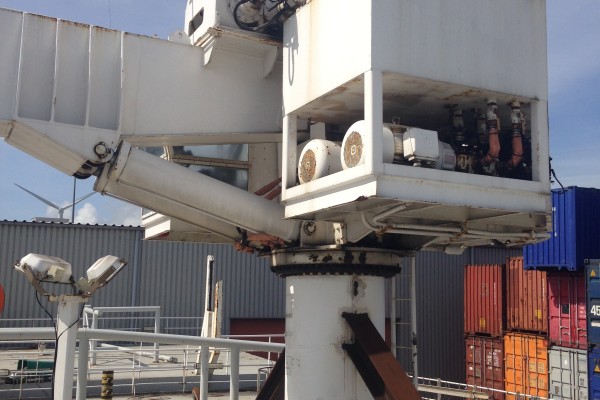

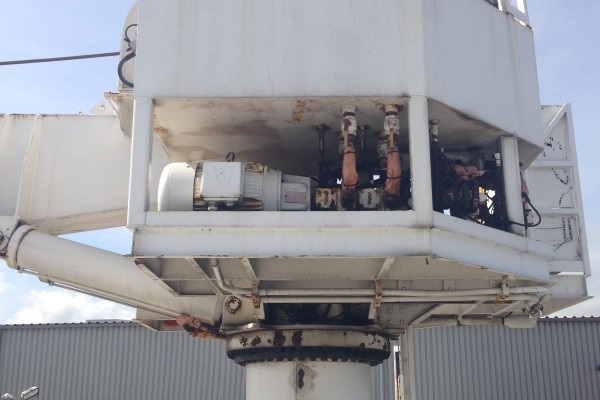

Hydraulic power unit: included, two (2) 125 hp / 480v ac electric motor
Hydraulic tank capacity: 4.5 m3

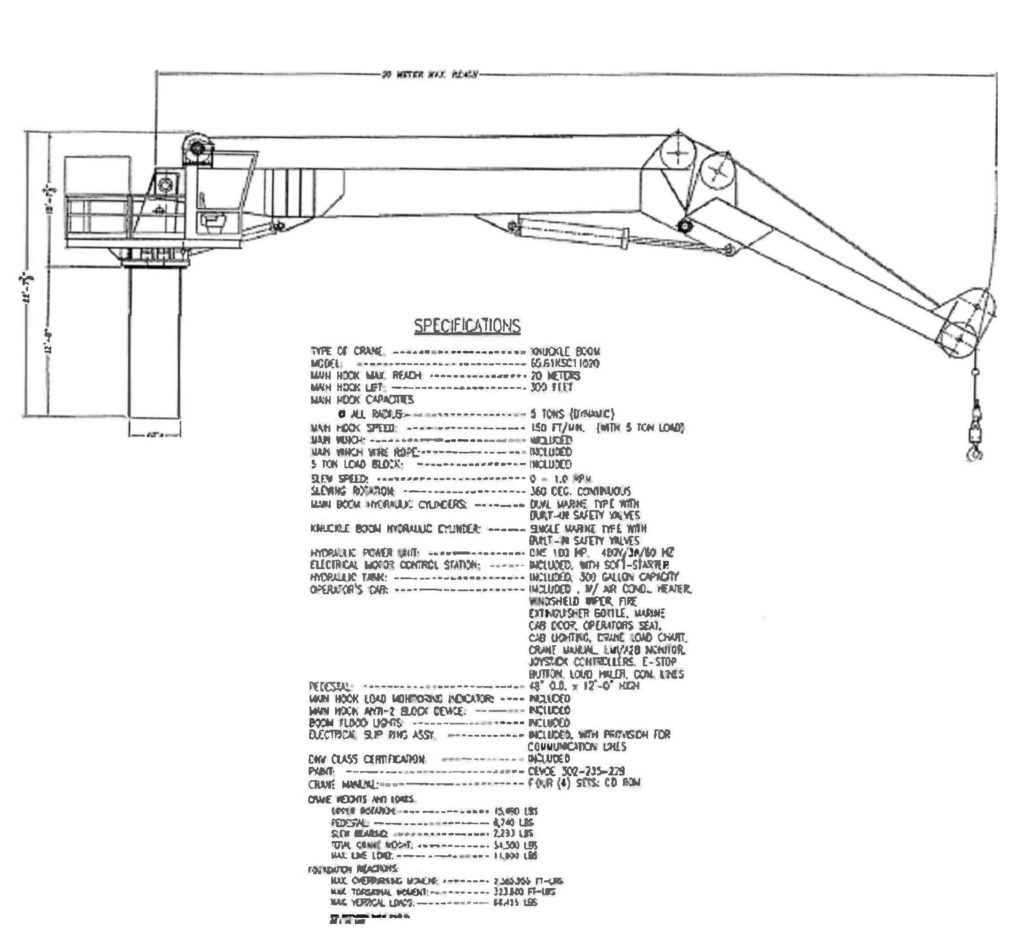

Full documentation available
Delivery: ex-site the Netherlands
Availability: Immediate, upon payment in full
