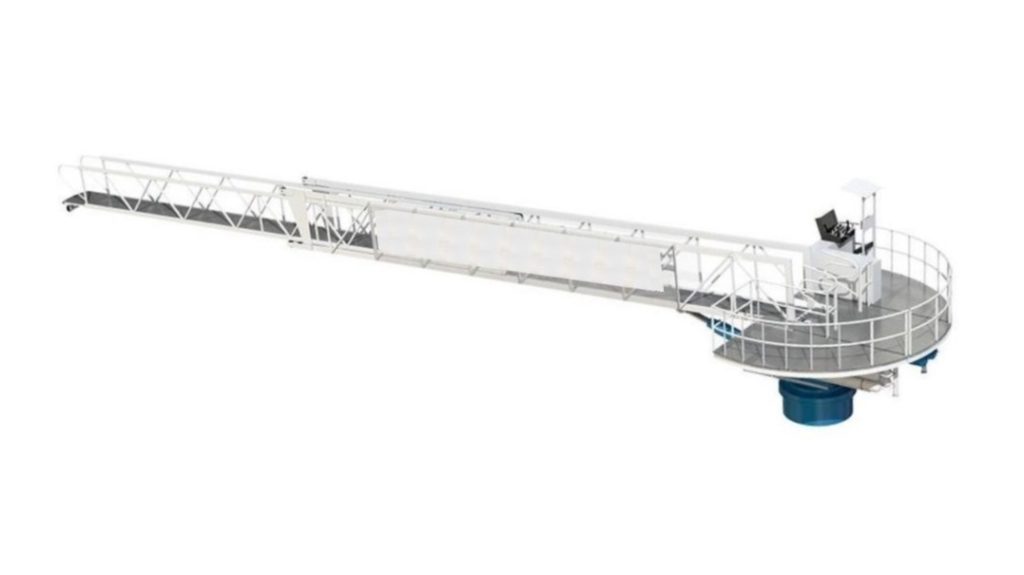

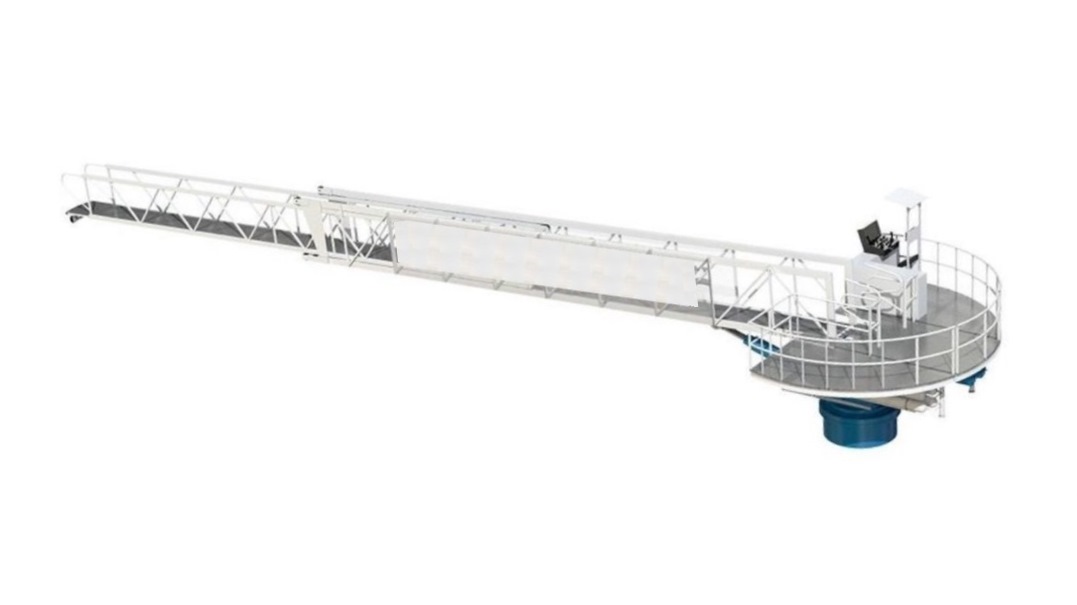

Motion Compensated Gangway
Active Motion / Heave Compensated Gangways
For Charter and For Sale.
Available 2 models in 2 configurations.
Optional: Height adjustable pedestal, lifting winch orcargo basket, tailor-made or configurated to your specific requirements.
| General | |
| Certification: | DNV GL |

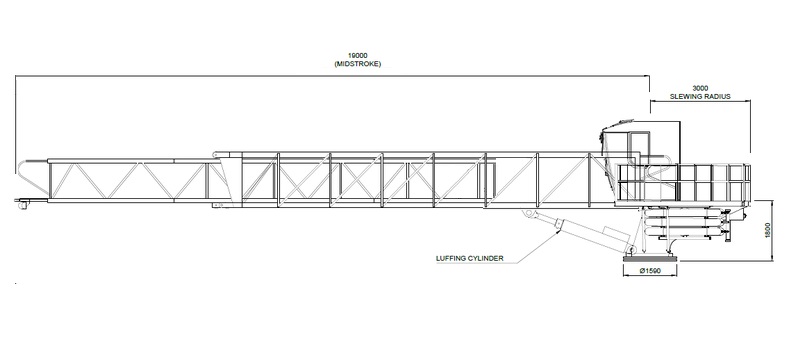

| Gangway length: | |
| Standard | 19m +/- 4m |
| Extended | 23m +/- 4m |

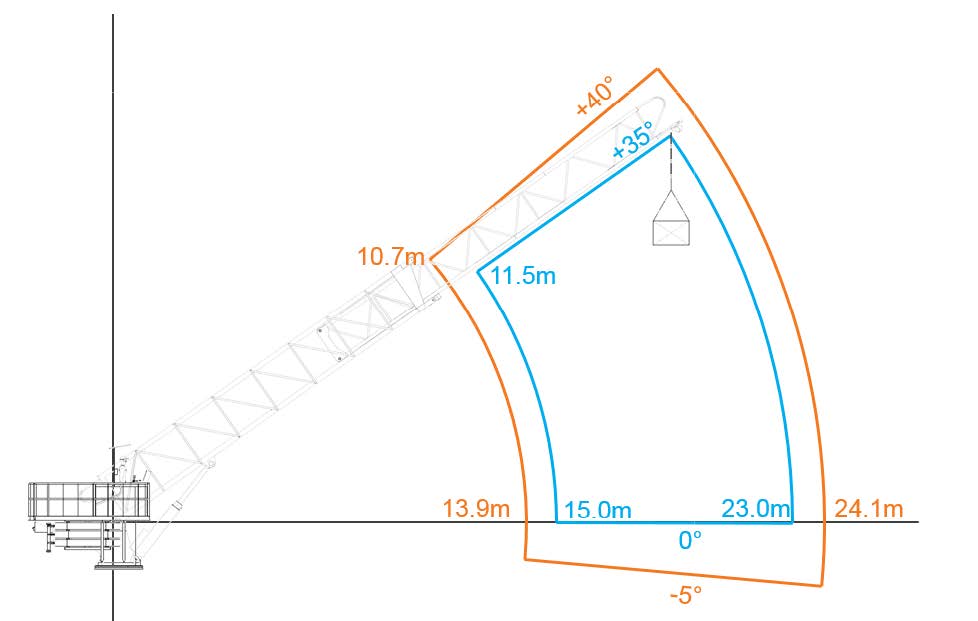

| Allowable luffing angles: | |
| Personnel transfer | -18° to +18° |
| Cargo transfer | -23° to +35° |
| Wind speed: | 20 m/s |
| Model 1 | |
| Wave height: | Hs = 0 – 3.0m |
| Footprint: | Ø 1.5m pedestal |
| Weight: | 22 tons |
| Model 2 | |
| Wave height: | Hs = 0 – 4.5m |
| Footprint: | 5.3m x 2.8m |
| Weight: | 80 tons |
| Integrated lifting winch | |
| Lifting capacity (SWL): | 1.000 kg |
