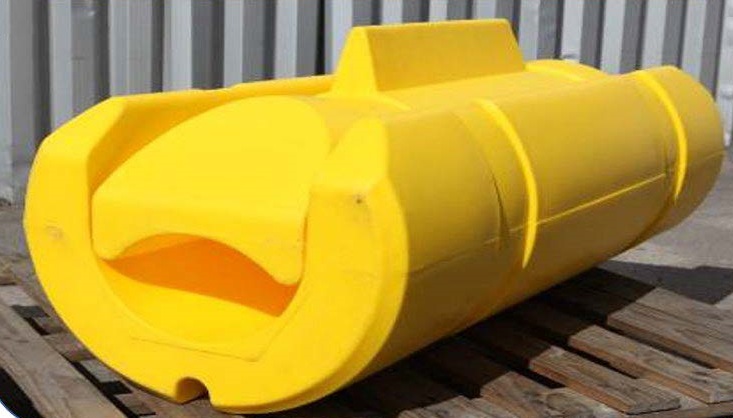

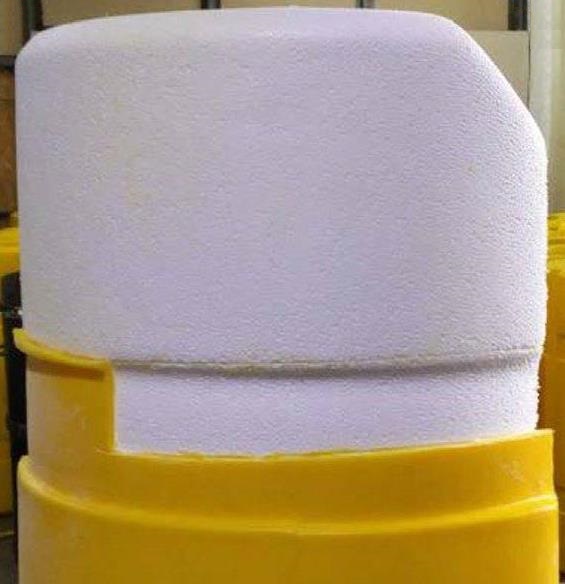

Easy mountable foam filled ID adjustable PE pipeline floaters ideally suitable for dredging and other floating pipeline applications. Enquire
Standard pipeline floaters | |||||
Length | OD | ID min. | ID max. | Buoyancy | Weight |
(mm) | (mm) | (mm) | (mm) | (kgf) | (kg) |
500 | 600 | 110 | 140 | 90 | 10 |
500 | 600 | 150 | 160 | 90 | 10 |
500 | 1.200 | 160 | 220 | 170 | 14 |
600 | 1.200 | 220 | 280 | 250 | 24 |
940 | 1.200 | 280 | 400 | 610 | 33 |
1.200 | 1.280 | 400 | 650 | 986 | 70 |
