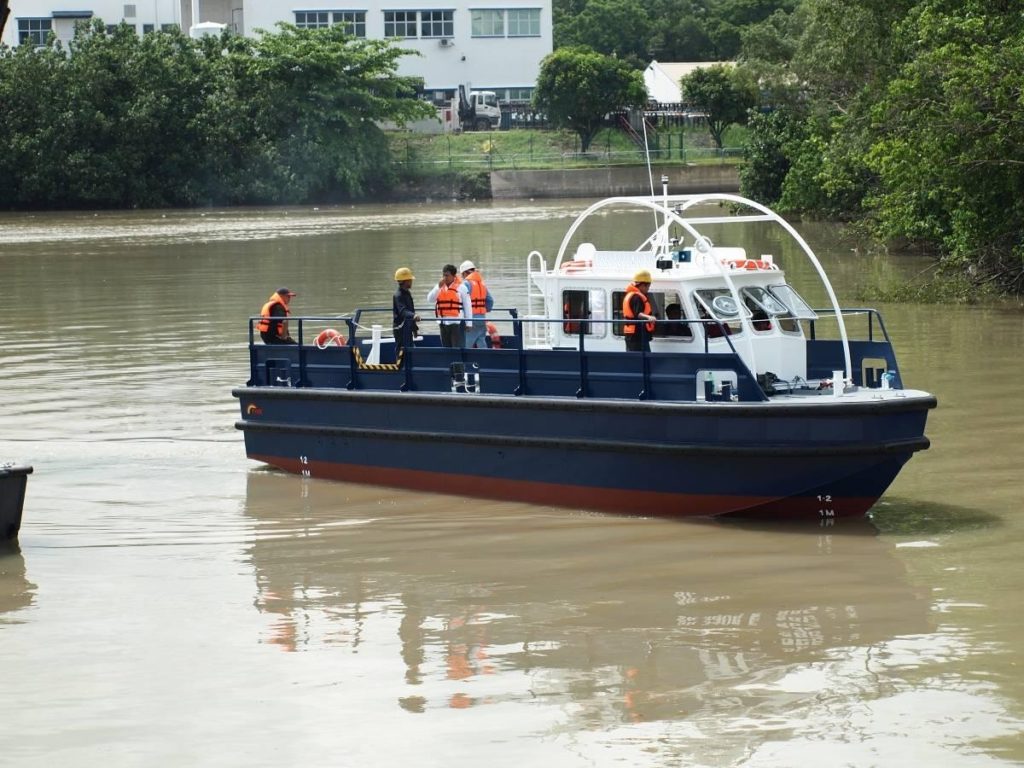

12m Mooring Boat
Line handling, barge handling, general assistance boat
New, versatile, solid built. 1 x Isuzu marine diesel engine. l x w x d (m):12.00 x 3.50 x 1.20. Price: Inquire
| PRINCIPLE DATA | |
| Length (Loa) | 12.00 m (39’ 4”) |
| Beam | 3.50 m (11’ 8”) |
| Depth | 1.90 m |
| Draft empty | Approx. 1.20 m |
| Empty weight | Approx. 7,500 kg |
| Propulsion engine | 1 x Isuzu marine diesel engine, 281 hp @2700rpm |
| Propeller | 4 bladed Nibral (subject to change) |
| Fuel tank capacity | Built-in 500 ltr |
| Hull material | Marine grade aluminium alloy (5083H321) |
| Hull plate thickness | 6 mm |
| Side plate thickness | 8 mm |
| Deck plate | Aluminium checker plate 5 mm |
| Speed | Approx. 13 knots |
| Details re outfitting available on request | |
