DP-2 4PM SSV (IMR)
Versatile, DP-2, 4-Point Mooring, light IMR, ROV, Survey
2012, LR. Loa 60.0 m, width 15.00 m, depth 6.0 m, max draft 5.0 m. DW 1.270 tons. Deck Area: 375 m2. 24 ton Knuckle Boom, Moonpool. 49-berth accommodation. Location: Europe. Inquire
| General | |
| Built | 2012 |
| Class | LR, ✠ 100A1 Offshore Supply Ship, ✠ LMC, DP(AA) |
| ERN Number | 97.97.76.76 |
| Dimensions | |
| Length Overall | 60.0 m |
| Length bpp | 52.0 m |
| Beam Moulded | 15.0 m |
| Depth | 6.0 m |
| Draft Summer | 5.0 m |
| GRT: ITC / Suez | 1800 / 2000 |
| Performance / Fuel Consumption | |
| Speed max | 13.2 knots, 15.0 mt/day |
| Speed | 11.5 knots, 11.2 mt/day |
| DP mode | 7.0 mt/day |
| DP- ROV work | 3.5-5 mt/day depending external factors |
| Idle in port | 1.0 mt/day |
| Deck & Cargo capacity | |
| Clear Deck Space | 375 m2 |
| Deck strength | 7 t/ m2 |
| Deadweight | 1,270 t |
| Machinery | |
| Main engines | 2 x Caterpillar 3516C HD, 1920 kW each |
| Propellers | 2 x CPP |
| Thruster(s) fwd | 2 x CPP 530 kW Tunnel |
| Thruster aft | 2 x FPP 400 kW Tunnel |
| Shaft generators | 2 x 1000 kW |
| Generators | 3 x Cat., 660 kW each |
| Deck equipment | |
| Main Crane | SMST knuckle boom, max reach 19 m |
| SWL | Single hoist 6 t @ 19 m, double hoist 24 t @ 8 m |
| Main hoist wire length | 190 m / 30 mm diam. |
| Crane jib extension | Capacity 2 t @ 30 m height, 10 m outreach |
| Service Crane | 3 t @ 9 m SWL |
| 4-point mooring | 4 x Hydraulic, 35 t pull, 60 t holding power |
| Wires & anchors | 4 x 1200 m x 38 mm, 4 x 3-t Delta Flippers |
| Wire Length & pull force indicators | |
| Moon Pool | 4.8 x 3.0 m |
| Bulwark | Dismount. PS & SB along work deck |
| Optional | Boat landing for transfer CTV/workboat |
| Tank / Transfer capacities | |
| Fuel | 480 m3, 6 m3/h 30 m head |
| Potable water | 455 m3 |
| Water ballast | 900 m3 |
| Heeling tanks | 2 x 37 m3 |
| Dynamic Positioning | |
| Class | DP 2 |
| DP computer system | K-POS DP 21 |
| VRU | 2 x |
| DGPS | 1 x DPS 110, 1 x DPS 112 |
| Hipap | Kongsberg 500 |
| Fanbeam | 1x |
| Taut wire | LTW Bandak MK15 |
| Gyro Compass | 3 x |
| Environmental Ref. | 2 x Wind Sensor |
| Power supplies | UPS |
| DP Auto Position | Follow sub mode |
| Communication | |
| Satellite communication | 2 x KVH Satellite system S6 (2048 / 512) |
| GMDSS | A1, A2 & A3 |
| Accommodation | |
| Charterers cabins | 1 x 1-berth & 13 x 2-berth |
| Crew cabins | 22 berth |
| Total | 49 |
| Other common spaces | Gym, Recreation Rooms, Smoke Room, |
| Offices, Hospital | |
Gerelateerde producten
-

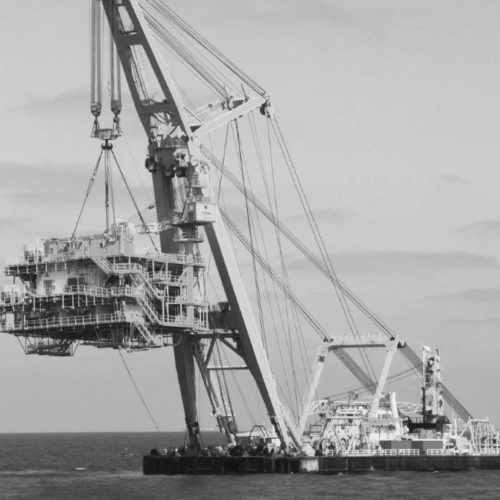

Propelled Sheerleg
