78m PSV DP-2 FiFi-1 Oil Rec Rescue.
2010, DNV, DP-2, Rescue. Loa 78.50 m, width 17.60 m, draft 6.60 m. Deadweight +/- 3,750 tons. deck cargo: +/- 2,500 tons. Deck area 755 m². Rated for 300 survivors. Location: North Sea. Inquire
| GENERAL | |

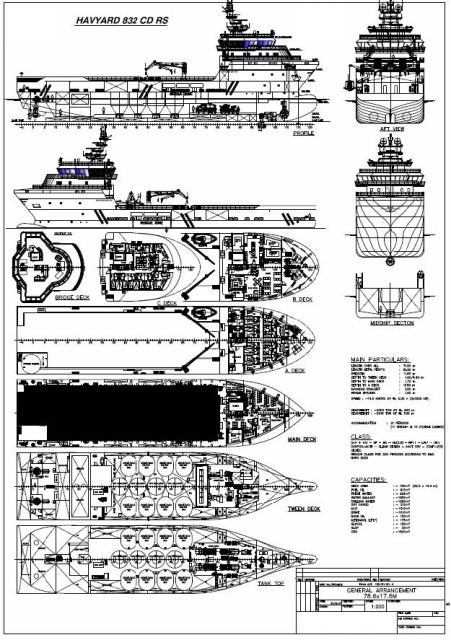

| Type: | Havyard 832 CD RS |
| Built | 2010 |
| Class | DNV, +1A1,Fire fighter(I) Clean(Design) COMF(V-3) DK(+) |
| Dynpos(Autr) E0 HL(2.8) LFL(*) Naut(OSV(A)) OilRec SF | |
| DIMENSIONS | |
| Length o.a. | 78.60 m |
| Breadth | 17.60 m |
| Summer draft | 6.60 m |
| Deadweight | 3750 t |
| DECK SPACE / STRENGTH | |
| Deck area | 755 m² (14,4m x 55,5m) |
| Deck Cargo | 2500 tons |
| Deck strength | 5 t/m² |
| SPEED AND CONSUMPTION | |
| Service speed: | 12 knots – approx. 11m3 @ 3-4 gen. sets |
| Eco Speed: | 10 knots – approx. 6,5 m3 @ 1-2 gen. set |
| DP operatio n: | approx. 5m3 |
| Stand by: | approx. 3m3 (outside 500m zone) |
| TANK CAPACITIES | |
| Ballast water | 2887 m3 |
| Drill water | 1773 m3 |
| Freshwater | 571 m3 |
| Dry bulk cargo tanks | 300 m3 |
| Base oil | 138 m3 |
| Fuel oil | 835 m3 |
| Liquid Mud | 600 m3 (5 tanks) |
| Liquid Brine | 360 m3 (3 tanks) |
| Methanol/Special Prod | 327 m3 (4 tanks) |
| Recovered oil | 1545 m3 |
| CARGO DISCHARGING PUMPS | |
| DW/Ballast | 1 x 200 m³/h – 9 bar, 4” Weco male |
| Fuel oil | 2 x 200 m³/h – 9 bar, 4” Avery Hardol |
| Fresh Water | 2 x 200 m³/h – 9 bar, 4” Weco female |
| Liquid Mud | 2 x100 m³/h – 24 bar sg =2,8, 4” Weco female |
| Brine | 1 x 100 m³/h – 24 bar, 4” Weco male |
| ORO pumps | 2 x 125 m³/h – 3-7 bar |
| Base Oil | 1 x 100 m³/h – 9 bar |
| Special Products | 2 x 75 m³/h – 9 bar |
| Dry bulk | 2 x 25,6 m³/h, 5” Weco female |
| DYNAMIC POSITION SYSTEM DP-2 | |
| Rolls Royce, ICON DP 2 | DnV class DYNPOS – AUTR |
| Two x DGNSS (Veripos LD2) | |
| One x Laser (Cyscan Mark IV) | |
| ERN Number: 99.99.93 | |
| ENGINES AND PROPULSION | |
| Main engines: | 2 x Cummins, QSK60-D – 1900 KW @ 1800rpm |
| 2 x Cummins, KTA50-D – 1300 kW @ 1800rpm | |
| Main Generators: | 2 x Marelli, 1825 kW, 2 x Marelli, 1291 kW |
| Emergency Generators: | 1 x Cummins, 99 kW |
| Azimuth thrusters aft: | 2 x Rolls-Royce, US 205 CRP – 1500 kW |
| Azimuth thrusters bow: | 1 x Rolls Royce, TCNS 73/50 -180 – 800 kW |
| Tunnell thrusters bow: | 1 x Rolls Royce, TT 2000 DP FP – 800 kW |
| FIRE FIGHTING | |
| DnV FiFi I | PTO on Main Generators with flexible couplings |
| FiFi Pumps | 2 x 1500 m³/h with 1800 rpm |
| FiFi monitors | 2 x remote operated |
| water spray | 600 m³/h |
| RESCUE AND LIFE SAVING EQUIPMENT | |
| The vessel is arranged and equipped for 300 survivors according to NMD-rules. | |
| FRC Mob. Boat | 2 x Mare GTC700 |
| Dacon Rescue Scoop | 1 x |
| Search lights | 3 x, remote contr. from bridge |
| Hospital with treatment bench, stretchers, medicine and poison lockers, intercom and direct ship to shore communication. Medical equipment/medicines in acc. to NMD | |
| DECK MACHINERY | |
| Mooring capstan | 2 x main deck (vertical) |
| Tugger winch | 2 x main deck |
| Capstan | 1 x B deck (vertical) |
| Deck crane | 2 x hydr.360° rotating knuckle boom |
| NAVIGATION EQUIPMENT | |
| Electronic chart | 2 x ECDIS TELKO |
| chart radar | 1 x X-band Furuno Far-2827 |
| radar | 1 x S. band Furuno FAR-2837S |
| DGPS | 2 x GP- 150/ GPA-019S |
| Gyro compass | 2 x Anschutz standard 22 |
| Gps gyro | 1 x |
| Autopilot | 1 Anschutz pilot star D |
| Echo-sounder | 1 x Furuno FE-700 |
| Doppler log | 1 x Furuno DS-80 |
| VDR | 1 x Furuno VR-3000 |
| AIS | 1 x Furuno FA-150 |
| COMMUNICATION SYSTEMS | |
| The Radio installation is acc to GMDSS-A3(WW) | |
| MF/HF SSB RADIO STATION | 1 x Furuno,FS-2570. |
| VHF DSC semi duplex | 2 x Furuno FM-8000S |
| VHF simplex | 2 x Furuno FM-2721 |
| Inmarsat C | 2 x Felcom 15 |
| Inmarsat Mini M | 1 x Sailor TT3064 |
| NAVTEX | 1 x Furuno NX-700B |
| EPIRB | 1 x Tron 40S free float |
| EPIRB | 1 x Tron 45SX manual |
| Radar transponder | 2 x Tron sart. |
| SSAS | 1 x Furuno OP16-33SSAS |
| DMDSS VHF | 3 x Tron TR-20 Portable |
| VHF | 3 x Motorola GP340 Portable |
| UHF | 5 x Motorola GP360 Fixed |
| UHF | 4 x Motorola GP340 Portable |
| Helicopter beacon | 1 x Radio Holland. TS1B. |
| Aeronautical VHF | 1 x Jotron TR-810 |
| Sound reception system | 1 x Zenitel VSS-111 |
| GSM Cell phone. | 3 x |
| ACCOMMODATION | |
| Cabins | 11 x Single Cabins |
| 12 x Double Cabins | |
| Total | 31 Persons |
| Other | 1 x hospital |
| QSHE – CERTIFICATIONS | |
| ISM, ISPS, ISO-9001:2008, ISO-14001:2004 | |
| QA QUALIFICATIONS | |
| IMCA Member, FPAL -, Achilles -, OVID -, Sellihca Registered | |
