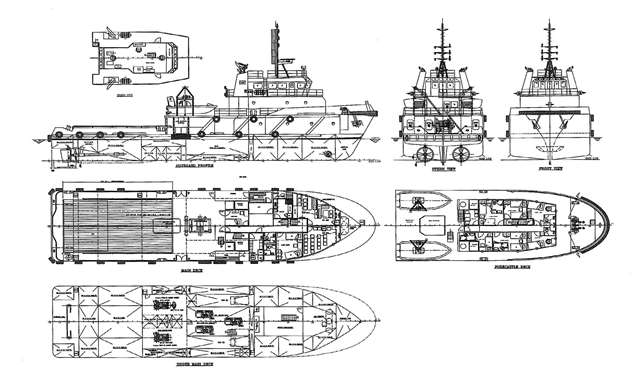

40m MP Safety – Stand-By Vessel (100 survivors)
2011, BV. 480 GRT. Loa 40.0 m, width 10.0 m, depth 3.7 m, max draft 3.1 m. Deck Area 104 m2. Location: Far East. Inquire
| GENERAL | |
| Built: | 2011 |
| Classification: | BV, 1 + Hull + Mach, Special Services/Standby |
| Rescue, 100 Survivors, Unrestricted | |
| navigation, + Mach | |
| DIMENSIONS | |
| Length: | 40.0 m |
| Breath: | 10.0 m |
| Depth / Draft: | 3.70 m / 3.10 m |
| GRT: | 480 |
| Deck Space: | 15.25 m x 6.8 m = 104 m² (approx.) |
| Deck Strength: | 5 tons / m² |
| PERFORMANCE | |
| Bollard Pull: | 30 tons |
| Max Speed: | 12 knots |
| Survivor Recovery: | 100 pax |
| MAIN ENGINE / GENERATOR | |
| Main Engine: | 2 x Cummins KTA 38 M2, 1200 bhp each |
| Main Generator: | 3 x Caterpillar 3406C, 215 kW each |
| Gear Box: | Reintjes ratio 6:1 |
| Bow Thruster: | HRP 3001 TT (200kW / 3 tons) |
| Propulsion: | 2 x FPP in Kort Nozzles |
| DECK EQUIPMENT | |
| Towing Winch: | 1 x 40 tons / 100 tons Brake |
| Wire Rope: | 36 mm x 600 m |
| Capstan: | 1 x 5 tons @ 15 m / min |
| Tugger: | 1 x 5 tons @ 22 mm x 150 m wire |
| Crane: | 14 tm knuckle boom crane with winch |
| max reach 8.6 m | |
| SAFETY EQUIPMENT | |
| Fire Fighting: | 1 x 1200 m³ FFS pump with |
| Monitors: | 2 x 600 m³ / hr |
| Engine Room: | CO2 flooding system – Fitted |
| Fire Detection: | Fitted |
| Oil Spray | Fitted |
| Dispersant: | |
| Rescue Boat: | 2 x 20 men FRB with 25hp outboard & Davit |
| Seating: | 17 seated |
| NAVIGATION / COMMUNICATION EQUIPMENT | |
| Radar: | JRC JMA 2254 – 48 nm |
| Echo Sounder: | 2 x JRC JFE 380 |
| GPS: | JRC J NAV500 |
| Auto Pilot: | TMQ AP9 |
| Compass: | Magnetic – 2 x Saura |
| Inmarsat C: | JRC JUE – 85C |
| SSB: | JRC JSB 196 GM |
| VHF: | 2 x JRC JHS – 32A |
| 3 x ACR SR – 103 (portable) | |
| Navtex: | JRC NCR – 333 |
| EPIRB: | ACR RLB – 32 |
| SART: | 2 x ACR 9 GHz |
| PA System: | Fitted |
| TANK CAPACITY | |
| Fuel Oil: | 244 m³ |
| Fresh Water: | 110 m³ |
| Ballast: | 110 m³ |
| Lube Oil: | 2 m³ |
| Oil Dispersant: | 2 m³ |
| Foam: | 1.7 m³ |
| ACCOMMODATION | |
| Cabin: | 2 x 1-berth, 1 x 2-berth, 4 x 4-berth |
| Total: | 20 men |
