450mm CSD + Booster

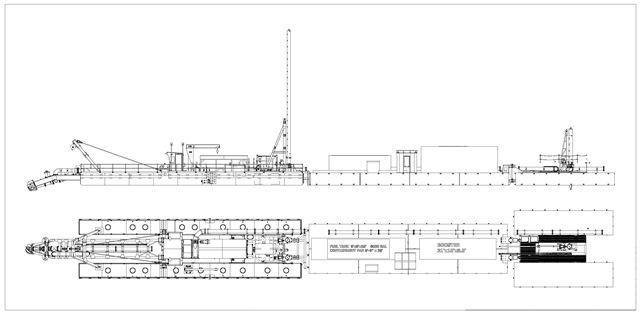

2017 USA built demountable CSD with the dredge pump built in the hulls of the main pontoon including an demountable idler barge housing a booster pump and an additional fuel tank and a demountable spud carrier. all well maintained and well documented. Engines meet the 2017 Tier requirements. Location: Southern state, USA. Enquire
| General | |
| Built | 2017, USA |
| Type | Demountable |
| Dimensions | |
| Length CSD | 32 m |
| Length idler barge | 24 m |
| Length spud carrier pontoon | 12 m |
| Beam CSD | 7.0 m |
| Depth | 1.50 m |
| Draft | 0.80 m |
| Dredging particulars | |
| Dredging depth (min/max) | 1.80 m / 13.5 m |
| Length ladder | 17 m |
| Suction | 450 mm |
| Dredge pump | 450 mm |
| Cutter power | 112 kW |
| Machinery | |
| Dredge pump engine | 1 x Cat C32 Acert, 839 kW |
| Booster pump engine | 1 x Cat C32 Acert, 839 kW |
| Aux engine | 1 x Cat C13 Acert, 328 kW |
| Deck equipment | |
| Swing winch | 2 x 8 t pull |
| Ladder winch | 1 x 11 t pull |
| Spud winch | 2 x 8 t pull |
| Spuds | 2 x 18 m x 0.40 m |
| Tank capacity | |
| Fuel | 7.6 m3 + 30 m3 |
