500 mm (20″) CSD
450 mm CSD for inland waters and lakes . CSD has been prepared to act as a deep suction dredger. Optional 1.0 km flanged pipe, floater, floating hoses and a small pushycat tug. CSD will de delivered dismantled and ready for road transport. 40 ft trailers for road transport also optional available. Location: Central Europe. Enquire
| General | |
| Built | 2001 |
| Class | GL, Coastal 20M |
| Dimensions | |
| Length pontoon | 29 m |
| Beam | 9.0 m |
| Depth | 2.45 m |
| Draft | 1.25 m |
| Dredging particulars | |
| Suction/Delivery pipe | 500 mm / 500 mm |
| Cutter power | 190 kW |
| Spuds | 2 x |
| Dredging depth | 20 m |
| Machinery | |
| Pump engine | 745 kW |
| Aux. engine | 320 kW |
| Fuel capacity | 30 m3 |
| Optional | |
| Tug | Pushycat |

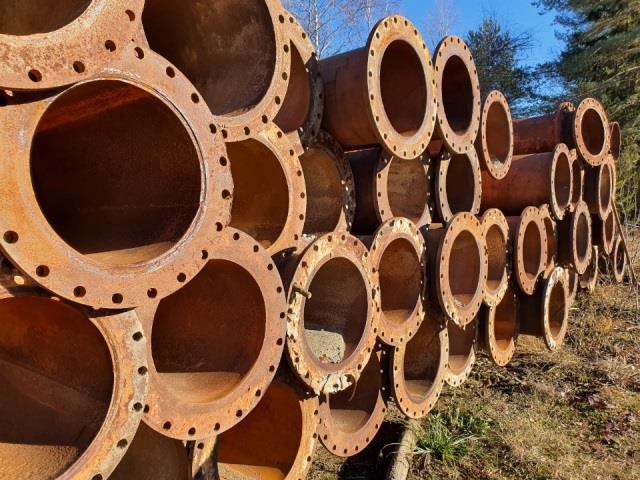

| Steel pipes | 90 pc x 11 m flanged |

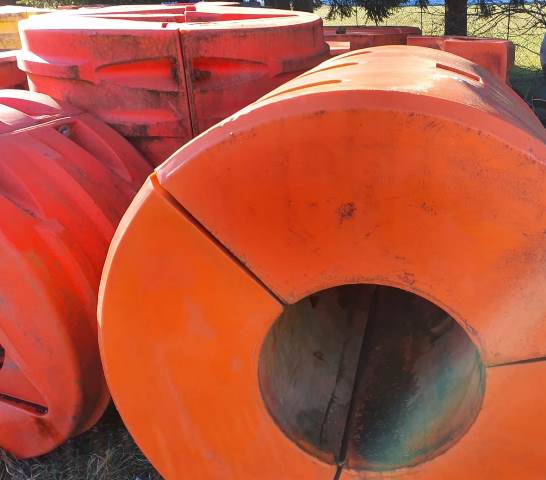

| Floaters | 21 pc MDPE |
| Floating hoses | 10 pc x 11 m |
