1.345 m3 inland Hopper Dredger

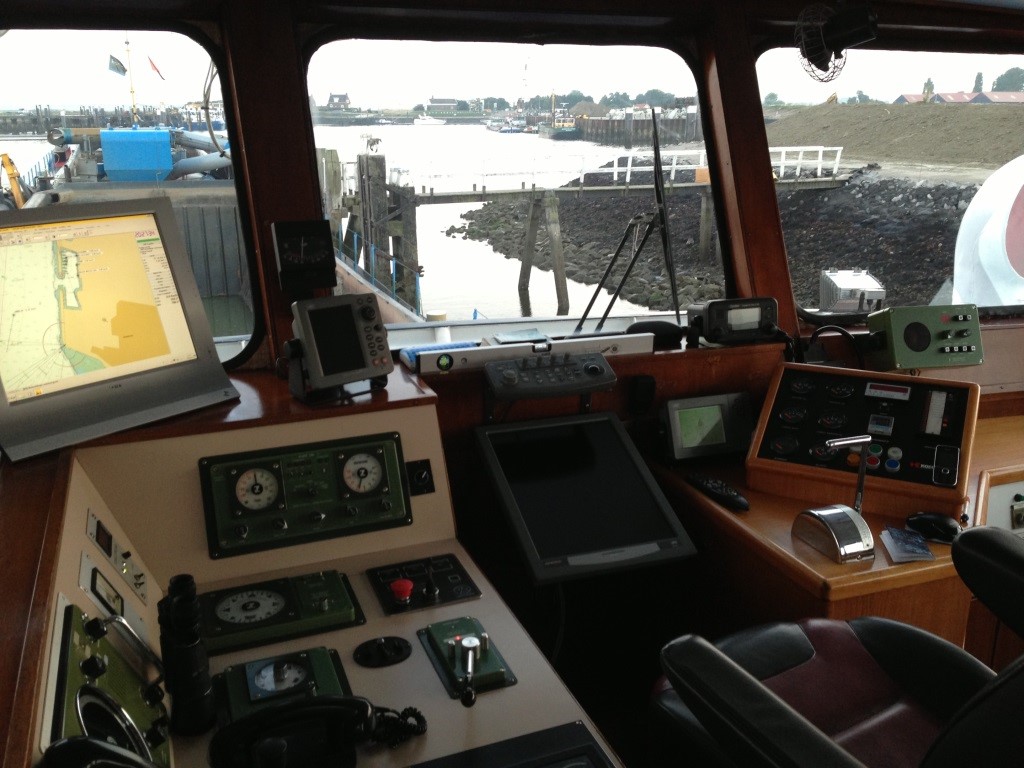

Direct from owners: Built 1964, inland waters, well maintained and continuously upgraded. Very suitable for alluvial sand extraction. All deck equipment can be operated from the bridge by one person. Crew: 2. Price: Inquire
| General | |
| Built / last upgrade | 1964 / 2006 |
| Yard | Verolme Heusden, the Netherlands |
| Crew | 2 |
| Speed loaded | 8.5 knots. |
| Speed empty | 10.5 knots. |
| Dimensions | |
| Length | 85 m |
| Beam | 9.6 m |
| Depth | 4.0 m |
| Draft | 3.95 m |
| Dredging particulars | |
| Hopper Capacity | 1.340 m3 |
| Sand Capacity | 1.250 m3 |
| Cargo Holds | 2 |
| Suction Pipe | ø 500 mm |
| Dredging depth | 20 m max |

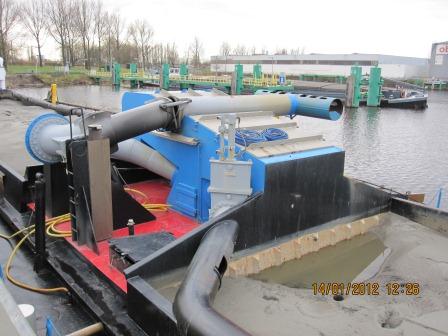

| Dredge equipment | Screening installation and Barge loading installation |
| Machinery | |

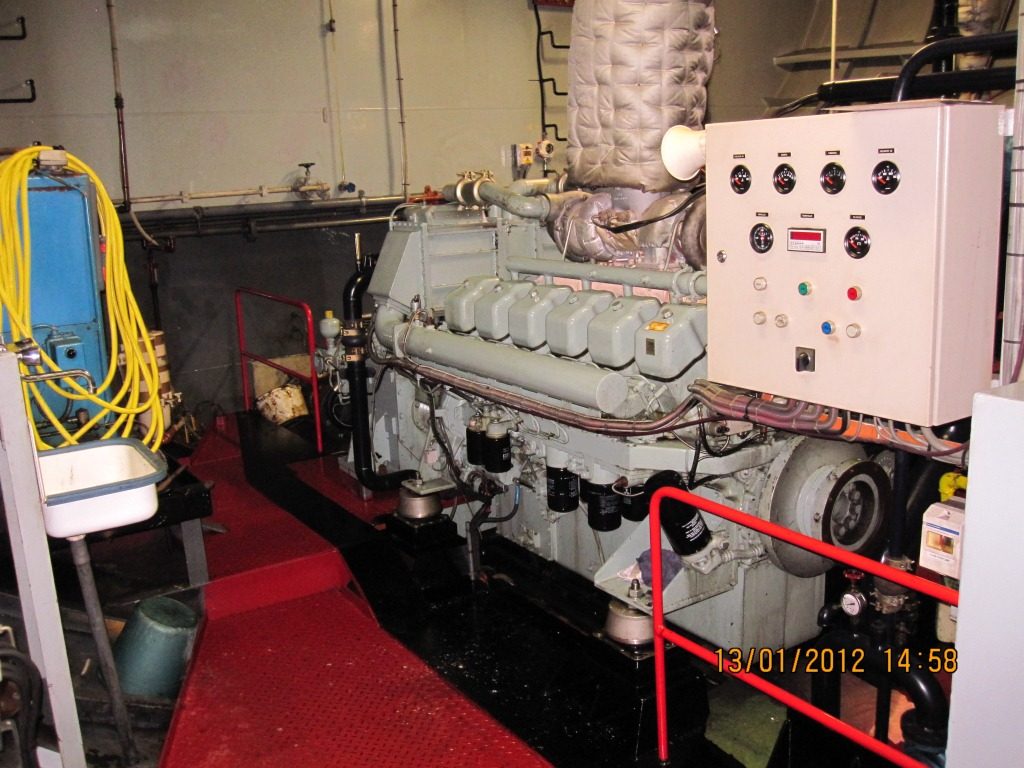

| Main engine | 1 x Mitsubishi (2002), 700 kW |
| Propulsion | FPP in nozzle |
| Bow thruster | Scania (1998), 275 kW |
| Generators | 1 x John Deere, 110 KVA |
| 1 x John Deere, 60 KVA | |
| Dredge pump | Bagema 50-50 GD |
| Dredge pump engine | GM, 367 kW |
| Jet pump | KSB, 1000 m3 / 6 Bar |
| Jet pump engine | DAF, 268 kW |
