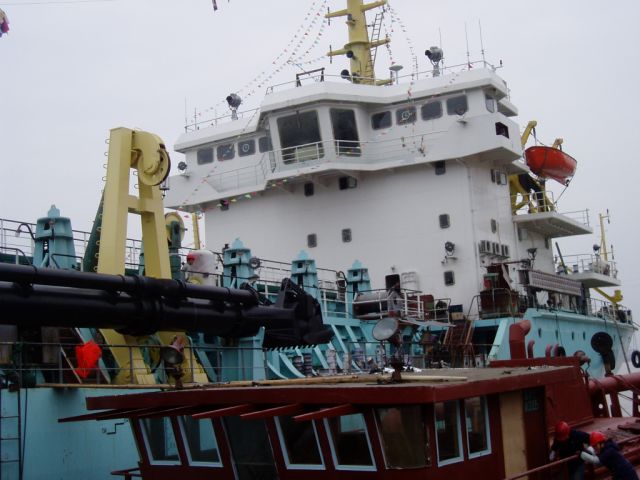

4.500 m³ Hopper Dredger
Direct from owners: 2007, IRS class, unrestricted navigation, Loa 97m, Width 18m, Depth 8m Draft 7.2m, Presently in operation. Price / TC rates: Inquire
| General | |
| Built | 2007, China |
| Class | IRS, SUL Trailer Suction Dredger, IY |
| Dimensions | |
| Length oa | 97.0 m |
| Beam | 18.0 m |
| Depth mld | 8.00 m |
| Draft (DLL) | 7.20 m |
| GRT | 4,350 |
| Speed | 12 knots |
| Dredging particulars | |
| Dredging depth | 25 m |
| Hopper volume | 4,500 m3 |
| Deadweight | 6,400 t |
| Dredge Pump | 2 x IHC Holland, HRLD 123/30/70 |
| Jet Water Pump | 2 x Zhejiang, OTS-300-560A |
| Suction Pipe | 2 x 750 mm, swell compensated |
| Gantries | 3 point hoisting with open hydraulic winches |
| Bottom doors | 2 x 11 conical doors. |
| Valve Control | Hydraulic remote operated |
| Overflow Pipe | Adjustable |
| Machinery | |
| Main Engine | 2 x Wuxi Antai C8300ZC18B, 2206 kW each |
| Propulsion | 2 x FPP |
| Bow thruster | 1 x through dredge pump |
| Generator | 3 x Luoyang Henan TBD234V8, 250 kW each |
| Emer. generator | 1 x China Ship Power 6135AD, 110 kW |
| Dredge Pump | 2 x Cummins KTA 38, 746 kW each |
| HP Jet Pump | 2 x Luoyang Henan TBD604L6, 530 kW each |
| Tank capacities | |
| Fuel | 430 t |
| Fresh Water | 160 t |
| Lubricating Oil | 15 t |
| Navigation equipment | |
| GMDSS | A1 + A2 + A3 |
| 2 x Radars, AIS, Echo Sounder, Weather Fax, VDR, Gyro Compass | |
| Accommodation | |
| Cabins | 29 persons – all air-conditioned |
