53 tbp AHT ASD, FiFi capability
1996 built, presently going through SS/DD. 53 tbp, Wartsila medium speed engines, 1470 kW each. AH and FiFi Capability. 16 crew accommodation for offshore operations. Location MED. Enquire
| General | |
| Built | 1996 |
| Class | BV, I ✠ Hull. ✠ Mach, Tug Supply Vessel |
| Anchor Handling; Unrestricted Navigation | |
| Class renewed | Feb. 2018 |
| Dimensions | |
| Length over all | 35.0 m |
| Beam | 11.5 m |
| Draft | 4.50 m |
| GRT | 496 |
| Deck area | 110 m2 |
| Performance | |
| Bollard pull (ahd/astn) | 53 t / 44 t |
| Speed ahead (maximum) | 12 knots |
| Speed (economic) | 10 knots |
| Machinery | |
| Main engines | 2 x Wartsila 6RS25, 1470 kW each |
| Propulsion | 2 x fixed pitch ASD |
| Generators | 3 x 100 kW |
| Deck equipment | |
| Fwd winch | Hold: 80 ton, single drum, hydraulic, |
| Pull: 5 ton @ 20 m/min. on 1st layer | |
| Aft winch | Hold: 125 ton, double drum, waterfall, hydraulic, |
| Pull: 75 ton @ 5 m/min. on 1st layer | |
| Stern roller | 3.0 m x 1.5 m, 180 ton SWL |
| Tugger winch(es) | 1 x 10 ton @ 15 m/min. |
| FiFi pump | 1 x 1300 m3/h |
| FiFi monitors | 2 x 600 m3/hr |
| Crane | 1 ton @ 4.5 m. outreach |
| Tank capacity | |
| Fuel oil | 200 m3 |
| Potable water | 60 m3 |
| Foam | 23 m2 |
| Accommodation | |
| Accommodation , air-conditioned, for 16 persons | |
Gerelateerde producten
-
70 Pax Fast Supply Crewboat / Utility Vessel
Mono hull, fixed props
ABS. L x b x d (m): 38.00 x 8.20 x 3.65. Draft 1.45 m. Speed: 22 knots, 110 m2 deck area, propulsion: 3 x fixed props totalling 4,500 kW. 70 pax + 10 crew. Price: Inquire
-
IHC Dredge / Booster Pump 1900-400-800
IHC Double Walled Dredge / Booster Pump 1900-400-800. Power: 2.100 kW @ 313 revs./min. Inlet/outlet (mm): 800 / 800
-

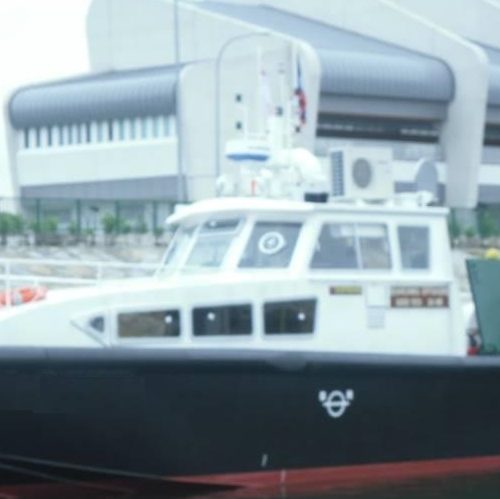

Fast Response Vessel / Crewboat / Utility Vessel
