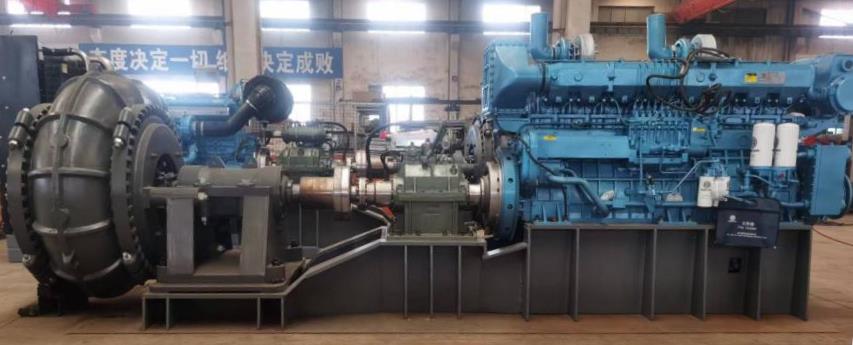

700 mm Land booster unit
Built to order, 700 mm land booster unit, Can be delivered with various engine options such as Caterpillar, Cummins, Mitsubishi or Weichai, with or without silence box. Booster also available in larger and smaller diameters and/or as floating booster. Enquire
| General | |
| Built | Built to order |
| Booster pump particulars | |
| Pump Capacity (water) | 7,000 – 8,000 m³/h |
| Inlet / Delivery | 700 / 600 mm |
| Discharge expansion pipe | 700 mm |
| Pump shell | Single wall |
| Delivery pressure | 5.5 – 7.0 Bar |
| Rotating speed | 450-500 rpm |
| Cooling system | Radiator |
| Diesel engine particulars | |
| Make & model (4 options) | Caterpillar 3516, |
| Cummins QSK60, | |
| Mitsubishi S16R2 or | |
| Weichai 12M55 | |
| Power | 1,885 – 2,015 kW |
| Emission | Tier 2 |
| Other features | |
| Gland pump engine | Cummins |
| Gland water pump | 45 – 50 m³/h, 9.0 bar |
| Skidded | Yes |
| Fuel tank | Separate |
| Silent box | Optional |
