500 mm, 1000 kW, 20kV LMG Electrical Booster unit

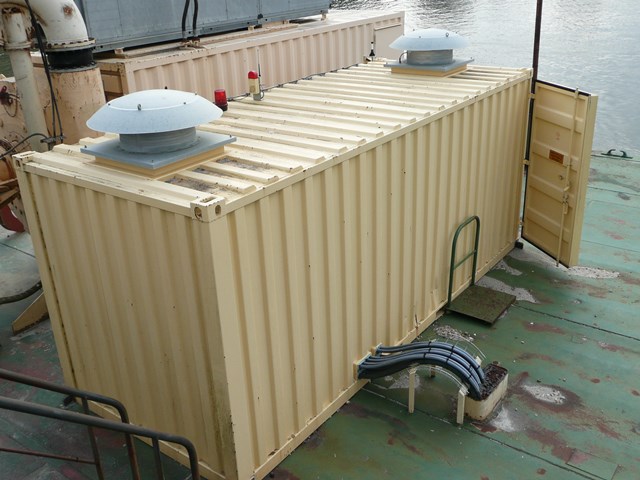

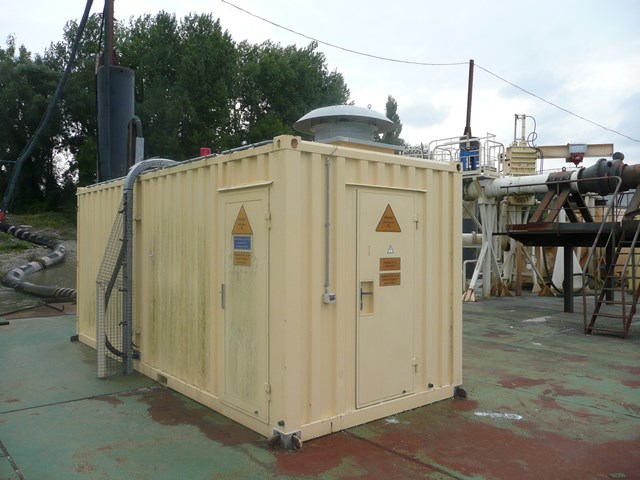

Containerised shore based 20 kV booster unit, 500 mm, max power 1000 kW with LMG pump, all required accessoiries and well documented. Full equipment list available. Total 3 x 20 ft container, being one control room unit, one transformer unit and one pump unit. Location West Europe. Enquire
| General | |
| Built | 2002 |
| Type | Electrical drive, shore based |
| Package | 3 x 20’ containers |
| Container 1 | Electrical switchboard |
| Container 2 | Control room |
| Container 3 | Booster unit |
| Electrical drive | |
| Primary transformer | 20 kV / 660 V, 1600 kVA, 50 Hz |
| Secondary transformer | 660 V / 400 V, 250 kVA, 50 Hz |
| Pump drive | Frequency drive |
| Reduction gear | 1,050 kW, ratio 3.93:1 |
| Coupling | Safeset 1230 R/ Periflex |
| Booster pump | |
| Type | LMG 500-1520-250 |
| Nominal power | 700 kW |
| Max power | 1,000 kW |
| Suction/discharge | 500 mm |
| Max pressure | 10 bar |
| Impellor | 5-blade |
| Material impellor | GS 32 NiCrMo 14 |
| Accessories & features | |
| Crane | 6 ton |
| Air compressor | 5.5 kW, 40 bar |
| Hydraulic set | 7.0 kW, 250 bar, 14.5 l/min |
| CO2 fire suppression system | |
| Pipe heating | |
| Various sockets | |
