1.475 kW Dredge Booster Unit

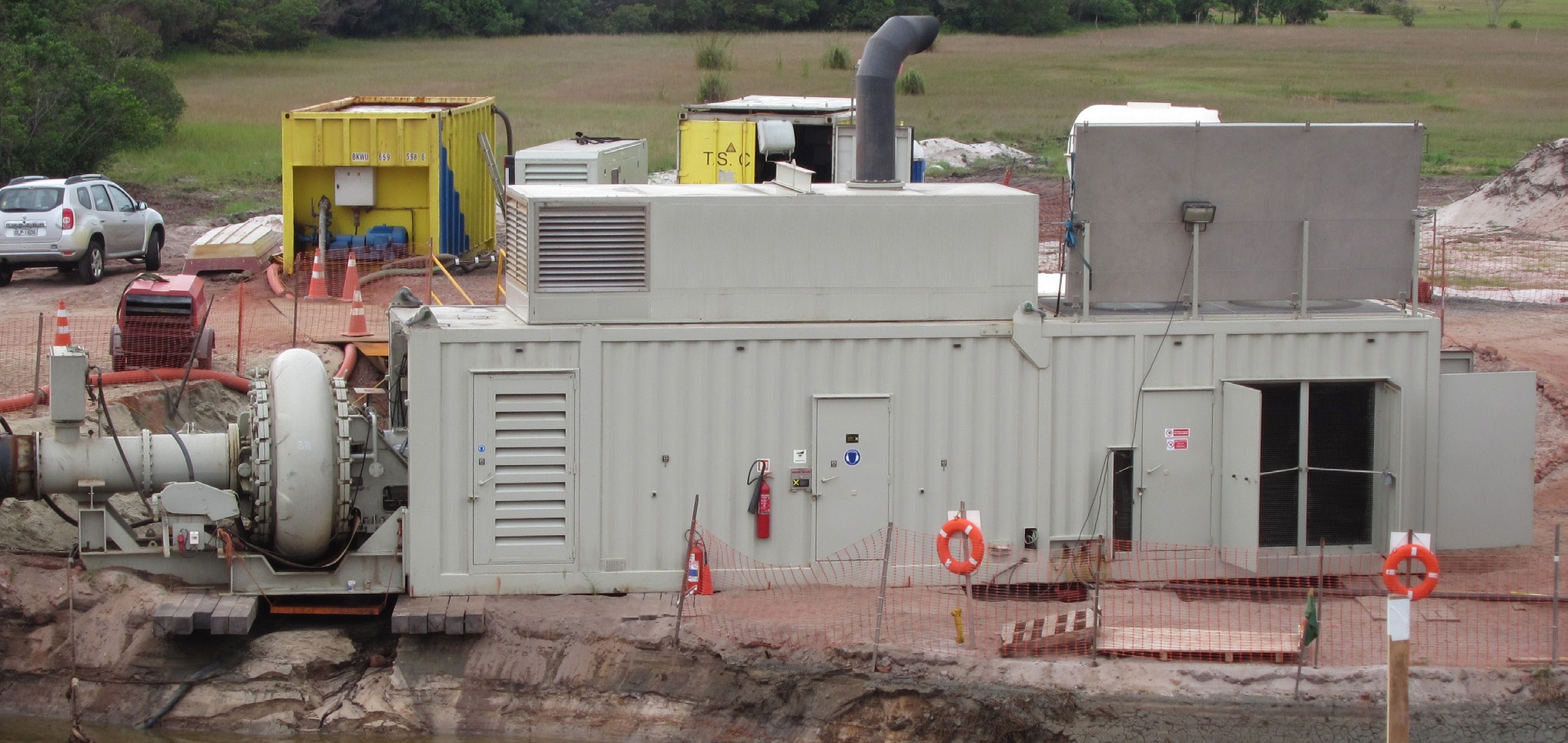

Remotely controlled, vacuum started, on-land application & pontoon mountable. Diameter (mm): 600/700
| GENERAL | ||
| Built | 2012 | |
| Yard | Sliedrecht, the Netherlands | |
| Area of operation | On-land booster | |

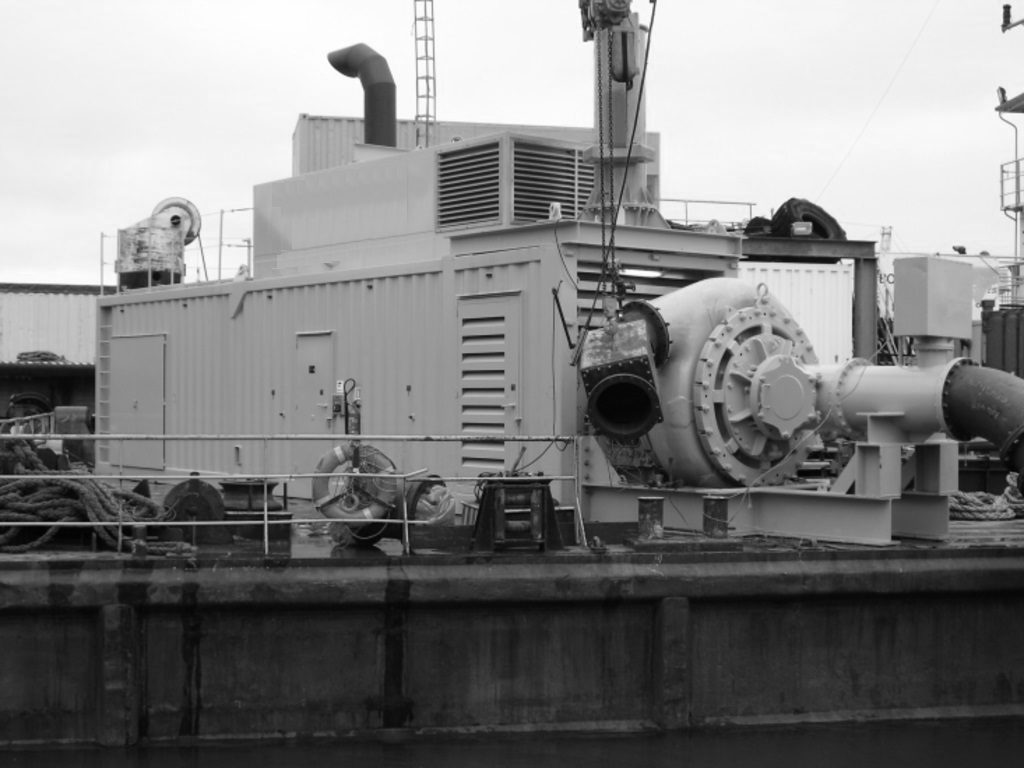

| Pontoon mountable | Yes | |
| DIMENSIONS | ||
| Length | 17,67 m | |
| Transport length | 13,88 m | |
| Width | 2,80 m | |
| Height | 6,13 m | |
| Transport height | 3,10 m | |
| VOLUMES / WEIGHTS | ||
| Light weight | 55 ton | |
| Operational weight | 86 ton | |
| Fuel capacity | 10 m3 (separate tank) | |

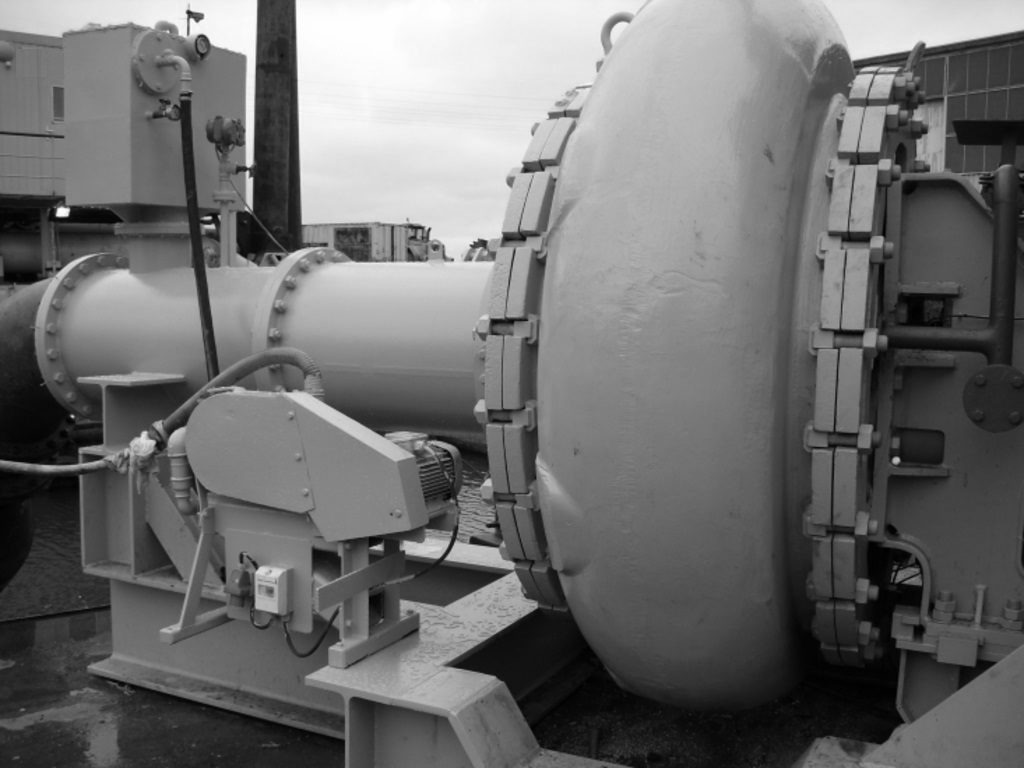

| DREDGE PUMP | ||
| Inlet | 600/700 mm | |
| Delivery | 600/700 mm | |
| Max. pressure | 15 bar | |
| Capacity (mixture) | 5.500 m3 /h | |
| MACHINERY | ||
| Generator | min 150 kVA (stand alone) | |
| Booster pump | Caterpillar 3516B | |
| Power | 1.475 kW | |
| Fuel | GO | |
| Total power | 1.600 kW | |
| OTHER | ||
| Remotely operated / controlled | ||
| Includes vacuum unit for start-up purposes | ||
Contact us for more details
