1,400 t Revolving Crane Barge
2012 versatile and solid crane barge, suitable for marine construction, – decommissioning, wreck removal and sub-sea works. Longer term charters only. Enquire
| General | |
| Built | 2012 |
| Class | RINa, C✠, Crane pontoon |
| Other | SPS Code (<=60 persons), |
| MODU code, MLC-2006 | |
| Dimensions | |
| Length | 136 m |
| Beam | 36 m |
| Depth | 8 m |
| Draft | 5 m |
| GT | 12,500 |
| Cargo & Deck capacity | |
| Deadweight | 19,800 t |
| Deck load | 20 t/m² (uniform loading) |
| Deck area | 3,400 m2 |
| Deck capacity | 10,000 t |

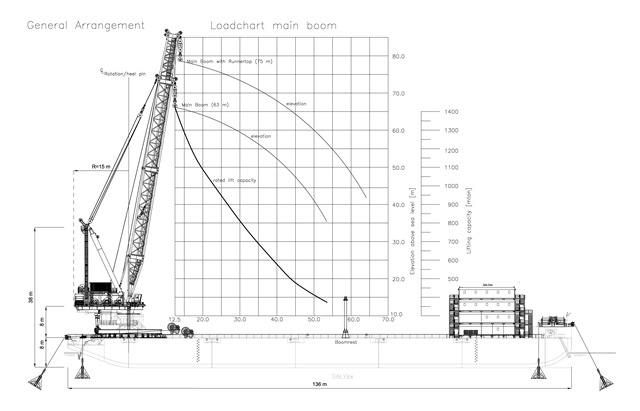

| Main Crane | |
| Main boom | 63 m |
| Boom top | 75 m |
| Main hoist | 1,400 t @ 12.5 m |
| 350 t @ 53.5 m | |
| Radius | 12.5 m – 64 m |
| Slewing | 360° |
| Revolving | 60°/min |
| Runner | 30 – 90 t |
| Machinery | |
| Generators | 2 x Cat, 753 kW each |
| 1 x JD, 153 kW | |
| Port generator | 1 x JD, 123 kW |
| Sewage | 14.8 m3/day |
| FW maker | 8 m3/day |
| Mooring system | |
| Winches | 4 x 120 t DD, 50 t pull |
| Wires | 8 x 1,200 m x 44 mm |
| Anchors | 4 x 10 t, 4 x 5.0 t |
| Ballast System | |
| Anti-heeling | 2 x 2,000 m3/h, (auto) |
| Trim pumps | 4 x 1,000 m3/h, (auto) |
| Main pumps | 2 x 800 m3/h |
| Tank capacities | |
| Fuel | 38 m3 |
| Potable water | 20 m3 |
| Sewage | 25 m3 |
| Communication | |
| GMDSS | 1 x Sailor SP3520 |
| HH VHF | 3 x SafeSea V100 |
| SART | Mc Murdo S4 Rescue |
| EPIRB | SafeSea E100 |
| Accommodation | |
| Cabins | 60 Crew |
| Other | Galley, Mess, sanitary |
| Offices, Changing room | |
