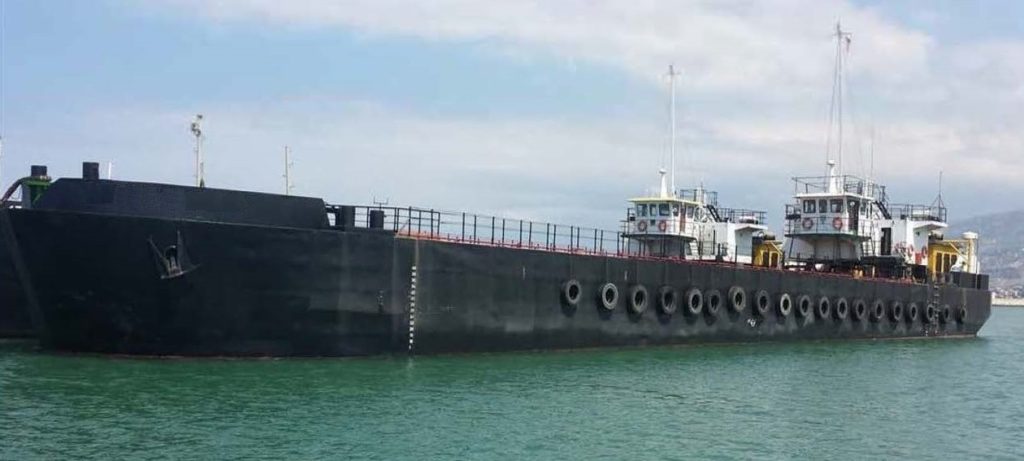

9 abril 20191,000 m³ Self-propelled Split Hopper Barges (2 sisters)
IHC omni split hopper barges, suitable for transporting rock. Location East Med. Enquire
SKU: F0126
Categorías: Barges (all types), Dredgers, Split Hopper Barges
Etiqueta: Withdrawn until Q1-2025
General | |
Rebuilt | 2013 |
Class | IRS, *ISE, Split Barge, R20, IM, SP |
Coastal navigation | |
Dimensions | |
Length | 63.5 m |
Beam | 12.0 m |
Depth | 5.0 m |
Draft | 3.2 m (summer load line) |
GT | 1010 |
Dredging particulars | |
Hopper volume | 1,000 m3 |
Deadweight | 1,500 t (summer load line) |

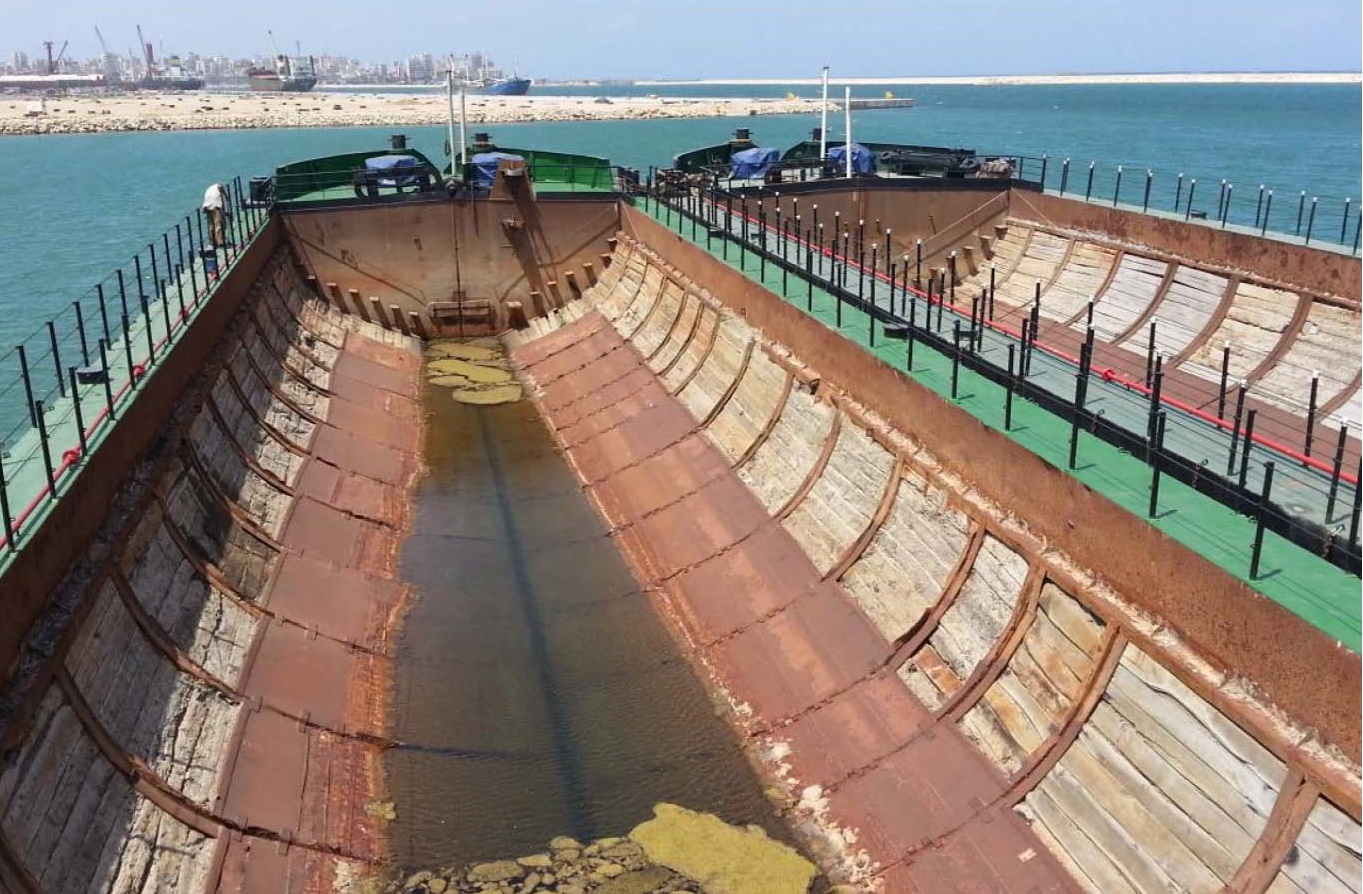

Hopper protection | Suitable to carry rock |
Machinery | |
Main engines | 2 x Cat. C18 Acert, 447 kW each |
Propulsion | 2 x rudder propeller SRP 300 |
Generators | 1 x 42 kW + 1 x 25 kW |
Tank capacity | |
Fuel | 100 m3 |
Fresh water | 24 m3 |
Accommodation | |
Cabins | For 8 crew |
Other | Galley, mess, sanitary facilities |
