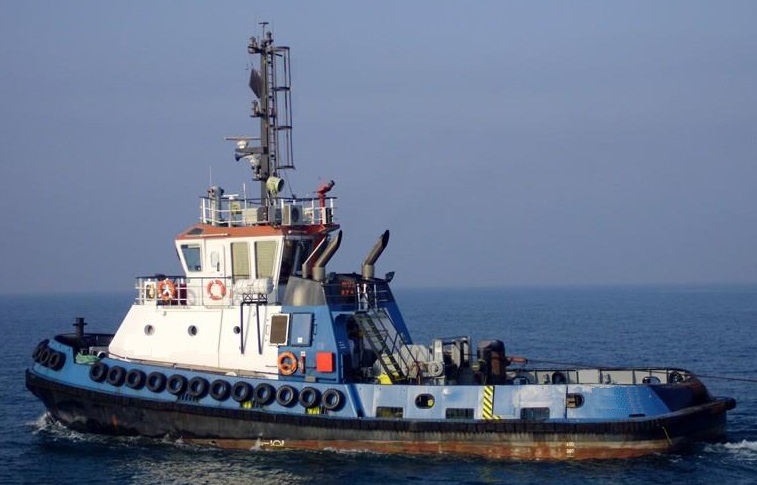

42 tbp twin screw tug (3 sisters)
Towage, Barge handling, General assistance
2005/2006/2007, BV/ABS/ DNV-GL class, l x w x draft (m): 25.0 x 8.60 x 3.1. 2 x Cat. 3512, 1,120 kW each, 41 tbp. 90 ton brake single drum towing winch. WAF, Med, ME Inquire
| GENERAL | |
| Built | 2005/2006/2007 |
| Class | (BV/DNV_GL/ABS) Tug, Unrestricted navigation |
| DIMENSIONS | |
| Length oa | 25.0 m |
| Beam oa | 8.60 m |
| Maximum draft | 3.10 m |
| GRT | 205 |
| MACHINERY/PROPULSION | |
| Main engines | 2 x Caterpillar 3512B DITA, 1120 kW each |
| Propulsion | 2 x fixed pitch Conventional |
| Bollard pull | 42 ton |
| Speed | 12 knots |
| TANK CAPACITY | |
| Fuel oil | 85 m3 |
| Potable water | 20 m3 |
| Foam | 4 m3 |
| ACCOMMODATION | |
| 9 persons | air-conditioned |
| DECK EQUIPMENT | |
| Towing hook | 45 ton quick-release, hydraulic |
| Aft winch | Single drum – 90 t brake load, 35 t @ 10 m/min. on 1st layer |
| NAVIGATIONAL AND COMMUNICATION EQUIPMENT | |
| Magnetic compass | Cassens & Plathe Type 11 |
| Echo sounder | Simrad CE144 |
| VHF | Simrad RT4822 |
| Radar | Simrad RA 42C |
| GPS | Simrad Hemisphere R131 |
| OTHER EQUIPMENT | |
| FiFi monitor | 1 x 250 m3/hr |
