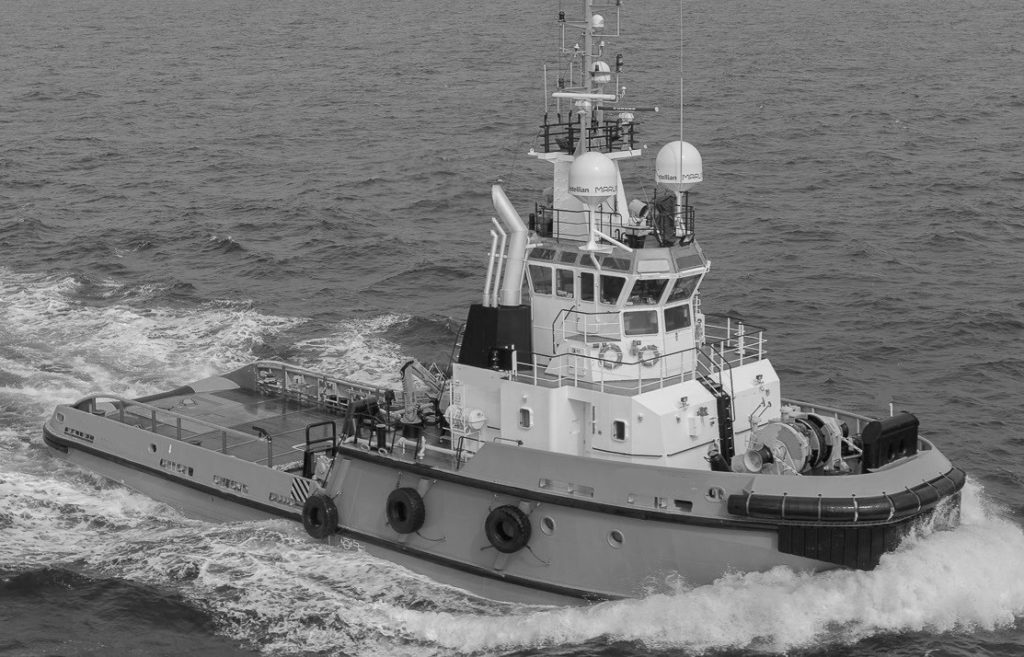

73 tbp ASD AHT (2 sisters)
Anchor Handling, Ocean & Coastal Towage, Terminal and Escort
2001, EU built, EU flag, OVID compliant. 498 GT, well-maintained, versatile, ocean-going ASD AHT, medium speed engines, 73 tbp ahead, bow thruster, Aft winch 65 ton Waterfall, brake holding 130 ton, fwd winch 65 ton, brake holding 130 ton, stern roller, Deck area 85 m² @ 5 tons/m². 10 berth. Inquire
| General | |
| Built | 2001 |
| Class | Lloyd’s Register of Shipping 100A1 Oceangoing |
| Anchor Handling ASD Tug LMC, UMS | |
| Trading Area | Worldwide /Unrestricted |
| Dimensions | |
| Length | 35.5 m |
| Beam | 11.0 m |
| Depth moulded | 5.6 m |
| Draft (max.) | 5.3 m |
| Design draft | 4.8 m |
| GRT | 498 |
| Machinery | |
| Main engines | 2 x ABC 8 MDZC diesel |
| Propulsion | 2 x ASD propeller, 2 x 1850 kW |
| Steering gear | 2 x Schottel SRP1515FP |
| Bow thruster | Schottel STT 100 CP, 200 kW |
| Performance | |
| Bollard pull ahead | Max. 74 t |
| Speed max | 12 kn |
| Speed economic | 10 kn |
| Deck area | 85 m² |
| Deck strength | 5 t/m² |
| Deck equipment | |
| AH/Towing winch | Double drum waterfall configuration |
| Pull 65 t, Brake holding load 130 t | |
| Drum capacity | 2 x 800 m x 48 mm |
| Escort winch | Single drum, pull 65 t, Brake holding load 130 t |
| drum wire capacity of 110 m x dia 48 mm + stretcher | |
| Tugger winches | 1 x 15 t |
| Stern roller | 200 t, 4,0 m x 12,5 m |
| Towing pins | Karmoy 1 set of KARM towing pins, 160 t |
| Stopper pins | Karmoy 2 KARM Fork, MBL 300 t |
| Crane | Palfinger, SWL 700 kg @ 9,2 m |
| Davit for rescue boat | 0,85 t |
| Tank capacity | |
| Fuel (MGO) | 245 m³ |
| Fresh water | 33 m³ |
| Accommodation | |
| Cabins | 4 x 1-berth, 3 x 2-berth |
