DP3 IMR MPSV Ice Class

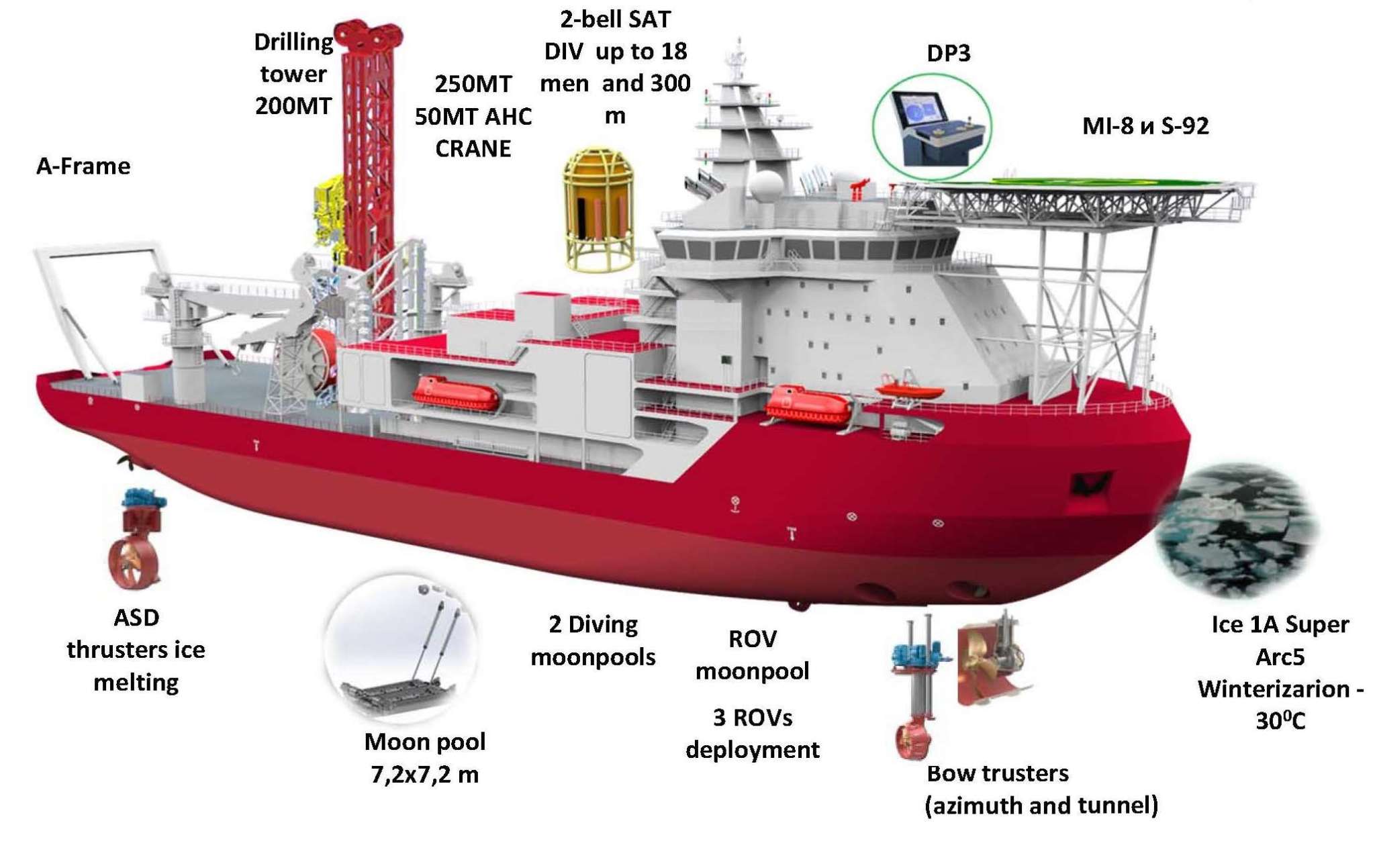

Versatile and capable to operate in extreme conditions. Typical role(s): Arctic deployment, Sat & Air Diving, ROV, Survey, Umbilical and Flexible Pipe Lay, Subsea Crane Operations, Well Intervention, Geotechnical. For charter only. Enquire
| General | |
| Built | 2017 |
| Dual Class | BV, I ✠ Hull ✠ Mach, Unrestricted Navigation. Special Service- Multipurpose Support Vessel, Heavy cargo [main deck 98.1 kN/m2], Ice Class 1a Super, ✠ AUT-UMS, ✠ SYS-NEQ 1, ✠ ALM, DynPos AM/ATRS, InWater Survey, Clean Ship Super (BWT, OWS-5ppm. ND0 15 days), Green Passport, Comf·Noise 3, COMF·VIB3, Accommodation HEL, SDS, SP140, COLD (H-30,E-30), Fire-fighting-2, 0il Recovery Ship, Diving-Support-Integrated-DD/SD |
| Secondary Class | RMRS, KM*, ARC-5, AUT-1, DynPos-3. Helideck, OMBO, ECO-S, Winterization (-30°C), Anti Ice, Special Purpose Ship |
| Typical role(s) | Arctic deployment, Sat & Air Diving, ROV, Survey, Umbilical and Flexible Pipe Lay, Subsea Crane Operations, Well Intervention, Geotechnical |
| Dimensions | |
| Length oa | 145 m |
| Beam mld | 30.0 m |
| Depth mld | 13.0 m |
| Draft summer | 8.2 m |
| Cargo capacity | |
| Cargo deck area | 1400 m2 |
| Deck cargo load | 4500 t |
| Deadweight | 6500 t @ 7.7 m draft |
| Performance | |
| Speed | 15.0 knots |
| Bollard Pull | 120 mt |
| Endurance | 50 Days |
| Fuel | 5,000 m3 |
| Dynamic Positioning | |
| Class | DP 3 ( Kongsberg) |
| DP reference | 1 x Radius, Omni directional (4 sensor heads) |
| 2 x HiPAP 501 | |
| 1 x Laser Range reference | |
| Power & Propulsion | |
| Main Generators | 4 x 5,500 kW |
| 2 x 1,600 kW | |
| Propulsion | 2 x 5.500 kW thrusters |
| Thrusters fwd | 2 x 2,700 kW tunnel |
| Thrusters aft | 1 x 600 kW tunnel |
| Azimuth thruster | 1 x 3000 kW, retractable |
| Deck equipment | |
| Helideck | 25.4 m, 13.0 t, suitable for MIL MI-8 or Sikorsky S92A & S61N |

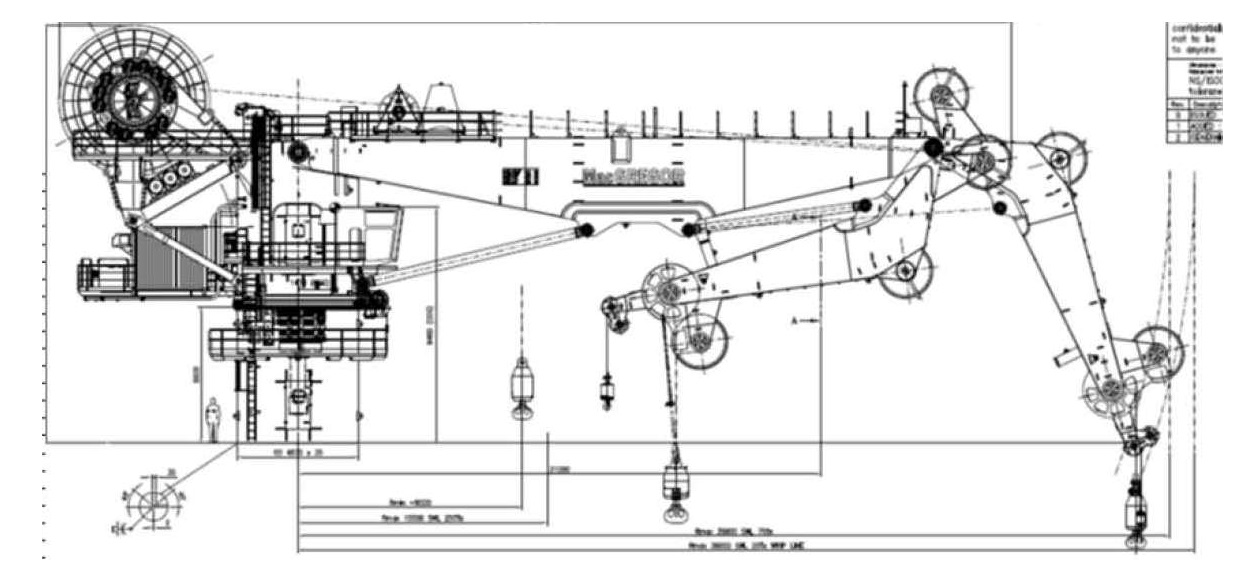

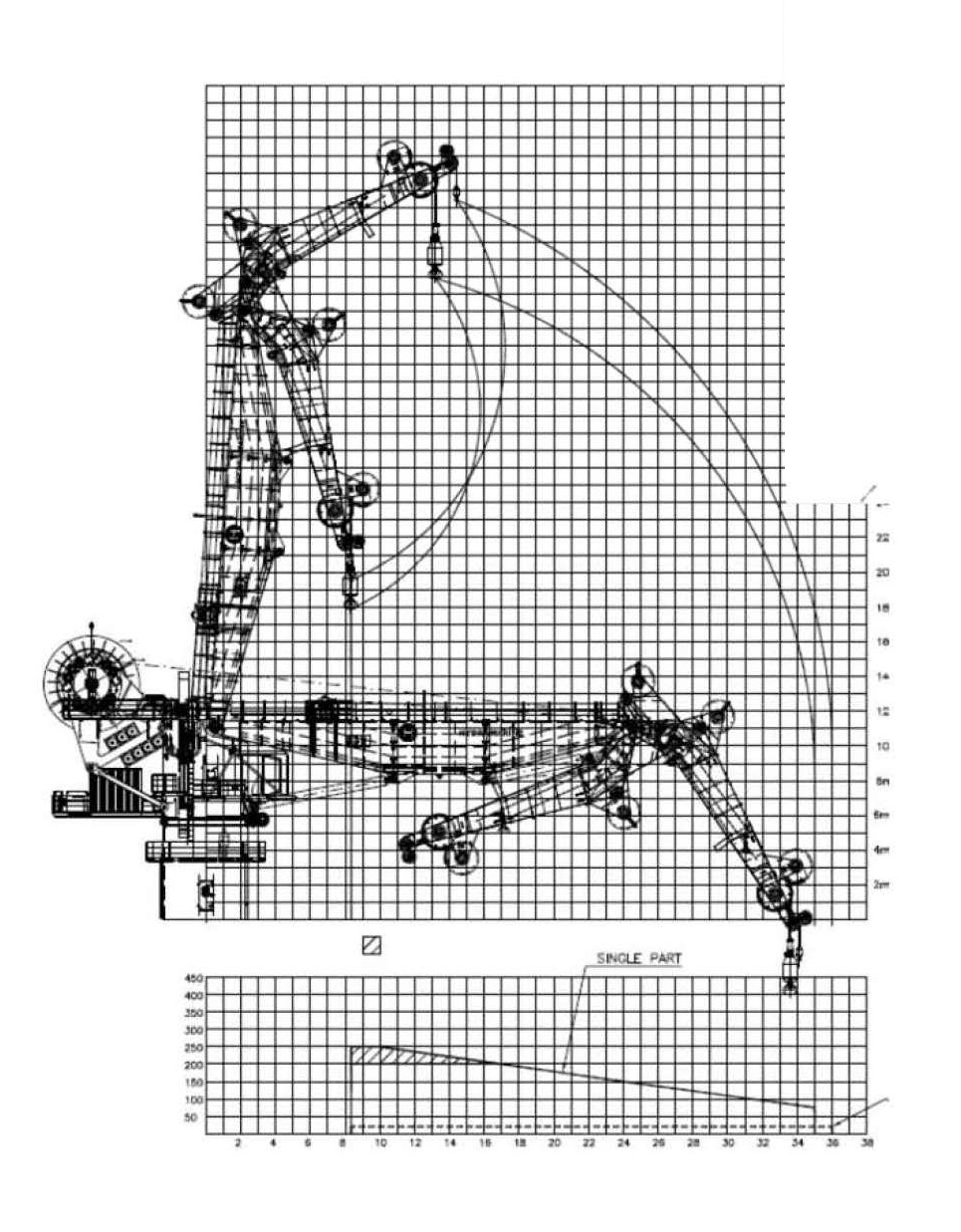

| Main crane #1 | 250 t AHC Offshore Knuckle Jib, offshore rated |
| SWL 55 t @ 35 m outreach | |
| SWL 250 t @ 12.5 m outreach | |
| Meets Winterization (-30°C) requirements | |
| Main crane #2 | 50 t AHC Offshore Knuckle Jib, offshore rated |
| Main Hook Lifting Capacity | |
| SWL 20 t @ 30 m outreach | |
| SWL 50 t @ 15 m outreach | |
| Meets Winterization (-30°C) requirements | |
| Towing Winch | 1 x single drum, 400 t static break, 1000 m drum capacity |
| Stern Roller | 1 x 5.0 m x 4.0 m dia, SWL 500 t |
| A-Frame | Optional, SWL 250 t |
| Well Intervention | Suitable for a 36 m 150 t SWL Tower, services pre- installed |
| Moonpools | |
| Main | 1 x 7.2 m x 7.2 m |
| Diving | 2 x 4.0 m x 4.0 m |
| ROV | 1 x 5.6 m x 4.0 m |
| Diving | |
| Saturated Dive | Twin Bell, 18 man, 300 m rated |
| Two hyperbaric lifeboats | |
| Surface Dive | Wet Bell. two winch system |
| Emergency decompression chamber | |
| ROV Equipment | |
| ROV | 2 x Triton XLX 200HP |
| 1 x Comanche Observation | |
| Hanger | Suitable for all 3 ROV, 2 x side launch |
| LARS | Suitable for all 3 ROV, 4,000 m |
| Accommodation | |
| Cabins | 60 x 1-berth, 40 x 2-berth = 140 berth total |
