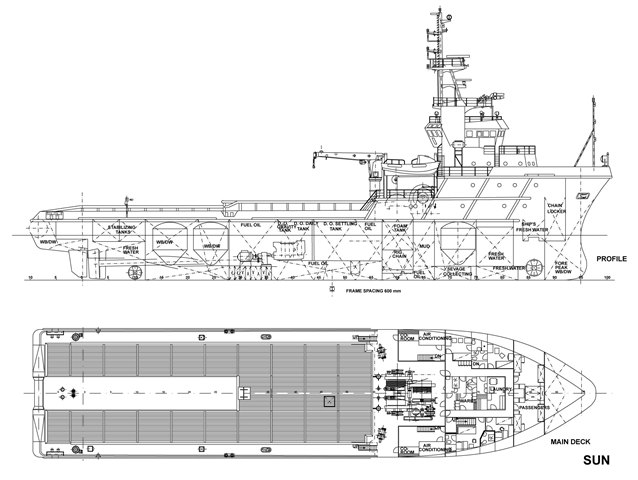

105 tbp AHTS (2 sisters)
1986, BV class, 105 tbp, FiFi-1 waterspray, triple drum waterfall configuration. 67 m x 14.5 m x 5.2 m draft. Med. Enquire
| General | |
| Built | 1986 |
| Class | BV, I ✠ HULL ✠ MACH Special Service / Offshore tug; |
| Supply Vessel; Firefighting ship 1 with water spraying | |
| Unrestricted navigation ✠ AUT -UMS | |
| Dimensions | |
| Length | 67.0 m |
| Width | 14.5 m |
| Depth | 7.0 m |
| Draft | 5.2 m |
| GT | 1,630 |
| Deck capacity | |
| Clear area | 420 m2 |
| Load | 750 tons |
| Strength – aft part | 5 tons / m2 |
| Performance | |
| Bollard Pull | 108 tons |
| Speed max. | 16 knots, 30 tons / day |
| Speed eco. | 11,5 knots, 10 tons / day |
| Deadweight | 1,350 tons |
| Towing / AH Equipment | |
| Rig Chain Lockers | 120 m3 |
| AH / Towing Winch | Triple drum waterfall 180 t pull /250 t brake |
| Drum Capacity – each drum | 1 x 1230 m x 61 mm, 2 x 682 m x 61 mm |
| Main / Spare Towing wire | 2 x 1000 m x 61 mm |
| Quick Release | From wheelhouse and deck |
| Towing Pins | 2 x |
| Stern Roller | 2.2 m |
| Karm Fork | 500 tons |
| Deck Equipment | |
| Capstans | Brattvaag /CM 4 185 |
| Tugger winch | 10 tons |
| Deck crane | 2 t at 10 m reach |
| Rescue boat | 1 x 6 persons |
| Life rafts | 5, total capacity 86 persons |
| Rigid workboat | 1 x 6 persons |
| Spray booms | Dispersant system |
| Tank Capacities And Discharge Rates | |
| Bulk cement tanks | 170 m3 |
| Potable water | 291 m3; 120 t/h, 8 bar |
| Drill water | 631 m3; 120 t/h, 8 bar |
| Fuel oil | 667 m3; 120 t/h, 8 bar |
| Liquid mud | 360 m3; 75 t/h |
| Propulsion | |
| Main engines | 4 x Pielstick, 6PA6L280, 1.590 kW each |
| Shaft generator | 2 x 1.300 kVA each |
| Aux generator | 2 x Pielstick 4PA6L185, 665 kVA each |
| Harbour generator | 1 x 125 kVA |
| Propellers | CPP, dia. 3000 mm in fixed nozzles |
| Bow thruster | 1 x 515 kW, 7.0 tons |
| Stern thruster | 1 x 365 kW, 5.0 tons |
| Fire fighting | |
| Main fire pumps | 2.400 m3/h |
| Navigation and communication | |
| GMDSS | AREA A3 |
| SSB | T&T / Sailor Compact HF SSB HC 4500 |
| VHF/DSC | Debeg 6630, 3842 |
| VHF | 1 x Atlas/Debeg 6330 |
| VHF GMDSS | Sailor |
| INM-C | 2x T&T 3020 C |
| Satcom | Fleet 33 |
| Satcom | MINI M |
| Radar | 1 x Furuno FR 1510 Mark II, x band |
| Radar | 1 x Furuno FAR 28×7 series ARPA |
| Gyro | Anschutz / SD 12 |
| Autopilot | Anschutz / SD 12 |
| Echosounder | Simrad ED – 161 |
| Satnav | Leica – DGPS Navigator MX412 Professional |
| Internal comms. | 1 x Amplidan 1525 MK-1-10 |
| Internal comms. | Vingtor VKA |
| Portable | 2 x Motorola GP-300 |
| GPS / Ploter Chart Master | Interphase 11 CVS |
| NAVTEX | Furuno NX-700 |
| SART | 2 x Lokata |
| EPIRB | Jotron, Tron 40″S» |
| AIS | Furuno FA-100 |
| LRIT | T&T |
| Accommodation | |
| Crew cabins | 12 x 1-berth and 1 x 2-berth |
| Supernumeraries cabins | 2 x 6-berth |
| hospital | 1 |
