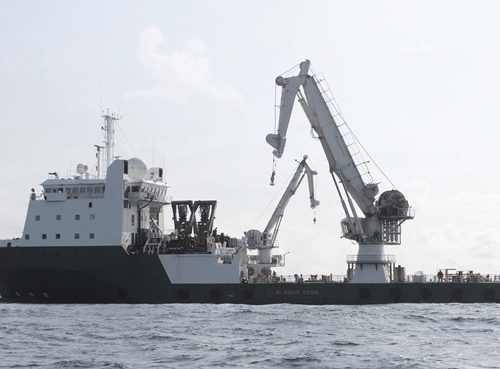

DP-2, 4-PM Offshore Maintence / MPSV
2008. BV class. DP-2, 4-Point Mooring. Deck area/load: 600 m2/3,000 tons. 40 ton Lattice boom crane. Moonpool. Loa 75 m, Width 20 m, Draft 5.0 m. 22m Helideck. Total complement 194. Price: Inquire
| GENERAL | |
| Built | 2008 |
| Class | BV |
| Notation | I + Hull + Mach, Special service Well Service Support / |
| Offshore Maintenance Vessel, Unrestricted navigation | |
| + DYNAPOS -AM/AT -R, + MACH | |
| MAIN PARTICULARS | |
| Length oa | 75.00 m |
| Breath mld | 20.00 m |
| Depth mld | 6.50 m |
| Draft (max) | 5.00 m |
| Deck area | 600 m2 |
| Deck cargo | 3.000 tons |
| Main deck Strength | 10 ton/m2 |
| Displacement (max) | 4.500 mt |
| Deadweight | 3.100 tons |
| Complement | 197 men |
| Speed | 11 knots |
| Endurance | 28 days |
| MACHINERY | |
| Engine | 2 x Caterpillar 3516B, 1,930 kW each |
| Gearboxes | 2 x Twin Disc marine reduction, 5.04:1 |
| Azimuth thruster | 2 x 1,930 kW, Kawasaki 2.6m diameter |
| Transverse thrusters | 2 x 12 tons bow thruster. CPP |
| Main generators | 2 x 500 kw. Cummins VTAD(m) |
| Emergency generators | 1 x 150 kw. Cummins 6CTA 8.3D (M) |
| Air compressors | 2 x 17 m3/hr 30bar |
| DECK EQUIPMENT | |
| Anchors | 2 x Stockless Bow Anchor (2640 kg) |
| Chain cable | 2 x 495 m x 46nun (Grade 3) |
| Mooring lines | 2 X 220m. 44 Ions |
| Anchor winch | 1 x 10 t, 10 m/min |
| Mooring winch | 4 sets (Single Drum) |
| Vertical capstan | 2 sets (Hydraulic) |
| Tugger winch | 2 x 10 t, 10 m/min |
| 4-point mooring system | 4 x Delta Flipper Anchor (4000 kg) |
| Offshore pedestal crane | 1 x 7.5/10 K lattice boom type marine crane |
| 40 t @ 13.7 m | |
| 27 t @ 20.0 m | |
| 9 t @ 38.4 m | |
| ADDITIONAL EQUIPMENT | |
| Stabilisation system | flume tanks |
| Moon pool | 3.6m x 3.6m |
| Option available for diving Operations | |
| Helideck | 22m Diameter (Suitable for Sikorsky S-92B/S-61N) |
| Dynamic positioning system | DP-2 |
| Referencing system | 2 x DGPSand Ultra Short Base Line Transceiver |
| Sonardyne (optional) | |
| Communications | VSAT C Band 128/128 kbps |
| Mini gymnasium | Weight lifting and treadmill equipment |
| CARGO CAPACITIES & PUMPS | |
| Fresh water | 240 m3 |
| Drill water | 738 m3 |
| Fuel oil tank | 450 m3 |
| Grey water tank | 20 m3 |
| Lub. Oil storage | 16 m3 |
| Bilge holding | 16 m3 |
| Sewage holding tank | 20 m3 |
| Dirty oil | 16 m3 |
| Hydraulic oil tank | 20 m3 |
| Anti-rolling (flume) tank | 1.100 m3 |
| Water maker | 2 x 34.0 m3/day |
| Sewage treatment plant | 200 men |
| Drill water pump | 2 x 200 m3/hr @ 57m head |
| Bilge/ ballast pumps | 2 x 75 m3/hr@ 45m head |
| General service/fire pump | 2 x 170 m3/hr@ 105m head |
| Inflatable life raft | 24 x 25 man |
| FIRE FIGHTING | |
| Fire-fighting pump | 1 x 1.200 m3/hr |
| ME front pto with C128a 10-14 h911aan | |
| Deck delivery head | 2 x 4 way delivery head |
| Fire main | 19 x 65 A bronze hydrants |
| Foam system | 600 m3/hr @ 90 m head |
| Carbon dioxide system | fixed |
