48 tbp ASD Escort Field Support Vessel (priced to sell)
19 septiembre 2016Multi Purpose Patrol Vessel
20 septiembre 201634 tbp, SPS, ROV Multi Purpose Support Vessel DP-0

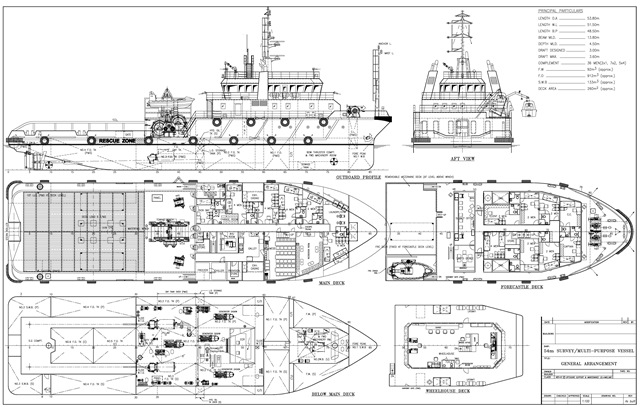

2008, ABS, Singapore Flag. Loa 54.00 m, width 13.80 m, depth 4.50 m, max draft 3.80 m. DW 950 tons. Deck Area 240 m2. Towing/AH winch waterfall conf. Stern Roller, A-frame Seating. Dedicated ROV generator. Price: Inquire
General | |
Year Built | 2008 |
Class | ABS, ✠A1, Towing Vessel, Offshore |
Support Vessel, Ⓔ, ✠ AMS, ✠ ACCU | |
Dimensions | |
Length | 54 m |
Beam | 13.8 m |
Depth | 4.5 m |
Draft | 3.6 m |
GT | 1,080 |
Performance | |
Speed (max/eco) | 11 knots / 9 knots |
Bollard Pull | 34 t |
Deck & cargo capacity | |
Deadweight | 950 t |
Clear deck Space | 240 m² |
Deck loading | 5 t/m² |
Machinery | |
Main Engines | 2 x Cummins KTA50, 1200 kW each |
Propulsion | 2 x FPP in nozzles |
Bow Thruster | 1 x 5 t |
Stern Thruster | 1 x 3.5 t |
Generators | 2 x Cat. 3406C, 245 kW each, ROV Generator |
1 x Cat. 3406C, 320 kW | |
Aux generator | 1 x Cat. C18, 450 kW |
Port generators | 1 x Cat. C4, 38kW |
Rudders | Becker independent |
Joystick | Alstom |
Sewage Plant | 34 men, shore connection |
Water Maker | 2 x 2.5 m3/day |
Deck equipment | |
Towing / AH Winch | 50 t DD waterfall |
Type | Plimsol double drum waterfall |
Wires | 1,000 m x 42 mm |
Tugger Winch | 2 x 5 t |
Stern Roller | 50 t, 2.5 m x 1.0 m |
A-frame seating | Yes, for 24 t SWL |
FiFi pump | 1 x 1,200m³/hr |
FiFi monitor | 1 x 1,200m³/hr |
Other features | |
Rescue Zone | Fitted |
Transducer Pole | Yes |
Transducer Flange | 2 |
Twist Locks | 20 |
Lashing Lugs | 30 x 10 t SWL |
Mezzanine Deck | Removable |
Deployment Davit | 1 x 500 Kg SWL slewing davit |
Survey Station | Fitted with Ethernet |
Tank & Transfer capacity | |
Fuel | 900 m³, 50 m³/h @ 50 m head |
Potable water | 93.4 m³, 50 m³/h @ 50 m head |
Sewage | 8.9 m³ |
Life Saving equipment | |
Liferafts | 6 x 20 man |
Lifejackets | 38 |
FRC/Rescue Boat/Davit | SOLAS FRC & Davit |
Lifebuoys | 8 |
Accommodation | |
Cabins | 2 x 1-berth, 6 x 2-berth, 5 x 4-berth |
Other | Mess, galley, sanitary |
