Propelled Sheerleg
Versatile propelled Sheerleg for heavy lift marine construction, bridge construction, piling and salvage operations worldwide.

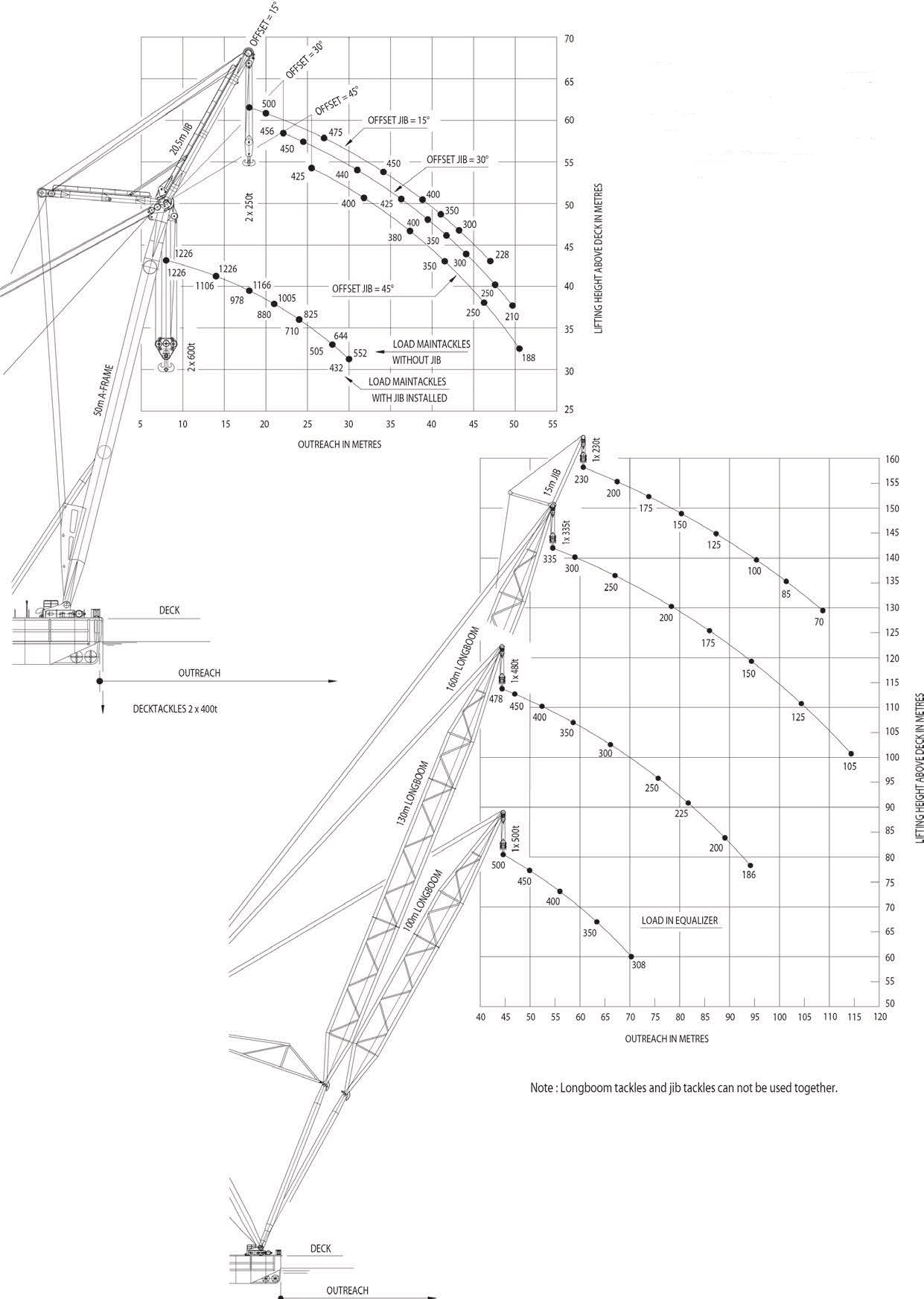

Sheerleg can be configured to clients’ specifications and lifts up to 1,600 tons at a height of 25 meters. With a jib up to 500 tons at a height of 55 meters.
Presently on charter. Expected to be available early 2023: Enquire
| General | |
| Built | 1977 |
| Class | DNV, ✠ 100 A5 Lifting Ship IW, ✠ MC AUT |
| Dimensions | |
| Length | 83.20 m |
| Beam | 36.90 m |
| Depth | 7.00 m |
| Draft (minimum) | 3.00 m |
| Draft (maximum) | 6.02 m |
| Machinery | |
| Propulsion | 2 x 1,000 kW |
| Bow thruster | 2 x 440 kW |
| Mooring winches Aft | 3 x 25 t, 500 m x 44 mm wire |
| 2 x 40 t, 625 m 48 mm wire | |
| Mooring winches Fwd | 3 x 25 t, 500 m x 44 mm wire |
| Features | |
| Accommodation for 30 people (can be increased). | |
